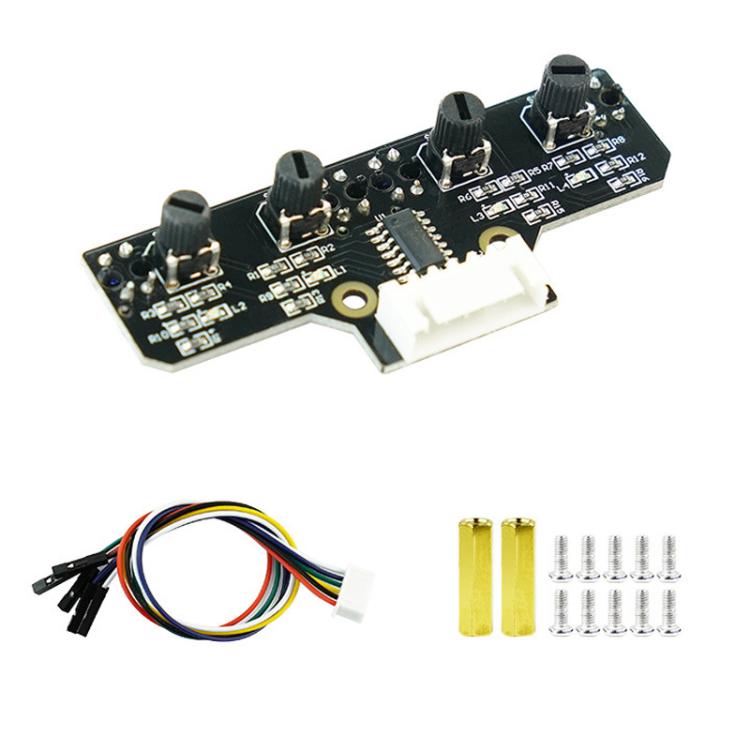

Yahboom 4 Channel Infrared Tracking Sensor Module For Smart Car Robot, Spec: With DuPont Cable+16mm Copper Column
Yahboom 4 Channel Infrared Tracking Sensor Module For Smart Car Robot, Spec: With DuPont Cable+16mm Copper Column
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R100.2/mo 3 months
- R50.67/mo 6 months
- R26.74/mo 12 months
- From R100.2/month over 3 months, or as low as R26.74/month over 12. Total repayable over 12 months: R320.88. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

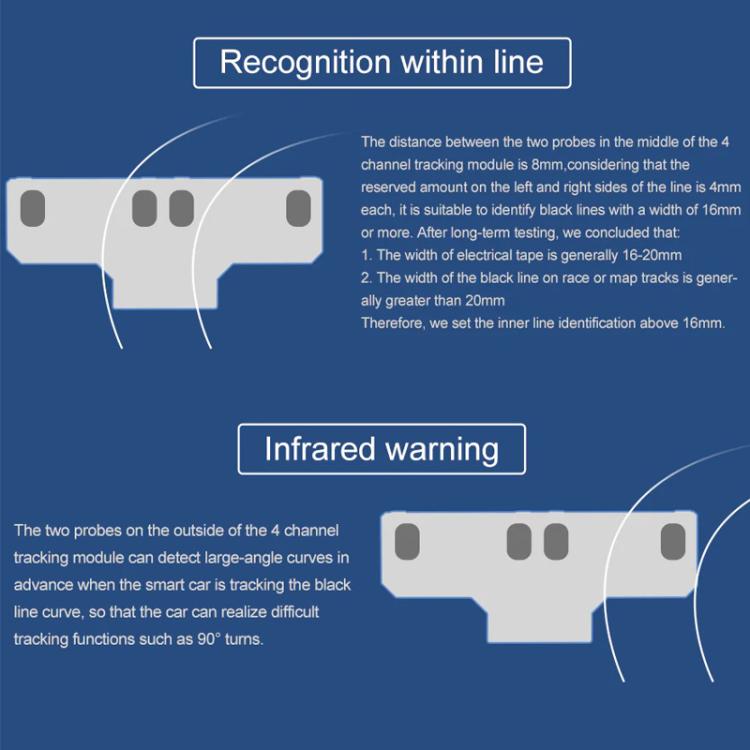

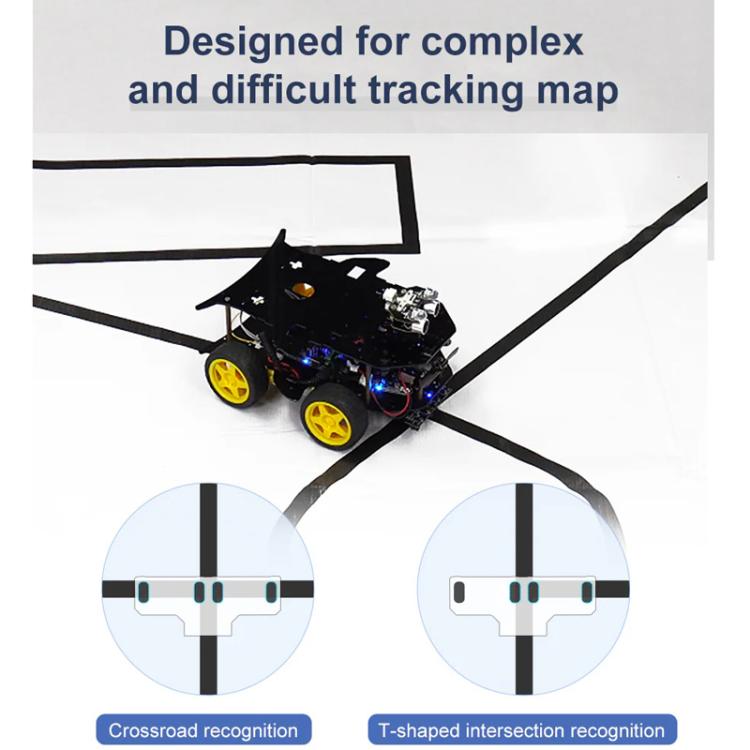

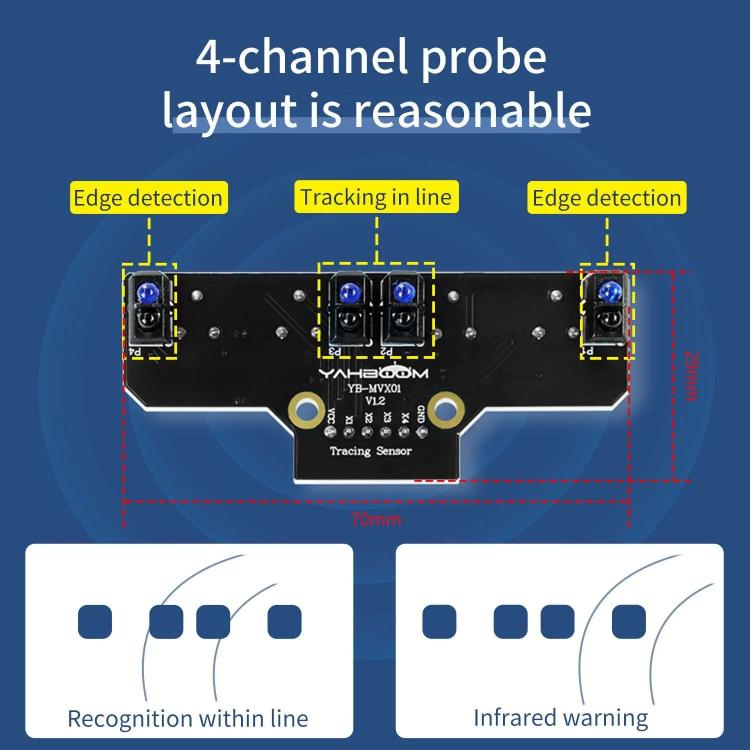

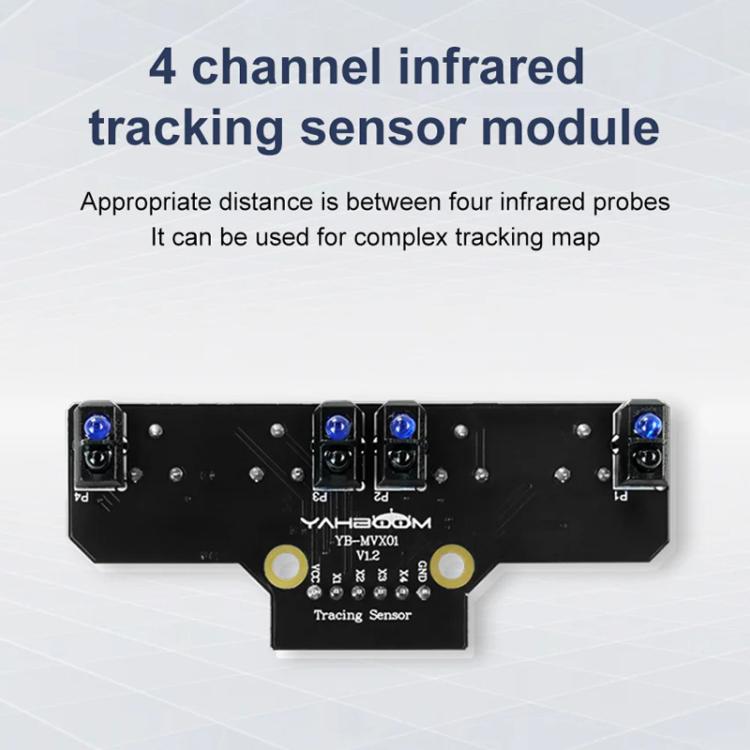

The Yahboom 4 Channel Infrared Tracking Sensor Module is designed for smart car robots to detect and follow black lines. It can recognize complex road surfaces and 90-degree turns, making it suitable for various robotics experiments.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB
- Key Feature: Adjustable sensitivity
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius
- Operating Current: 10mA - 50mA

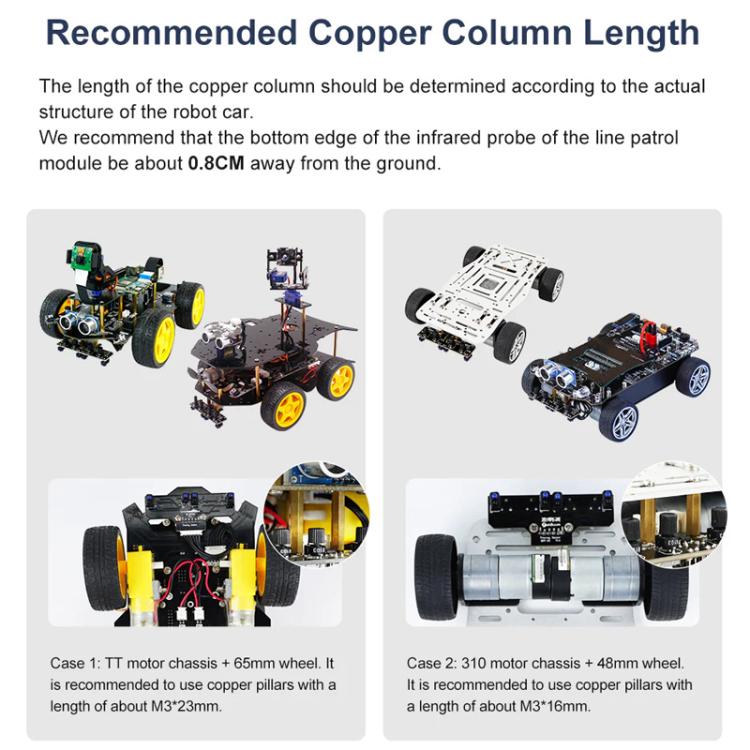

- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)

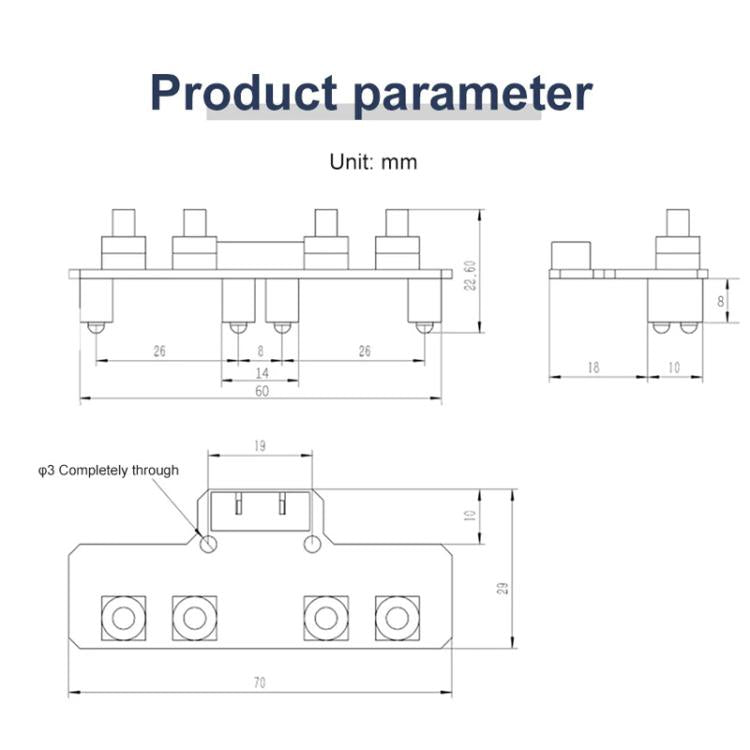

- Product Size: 70 x 29mm

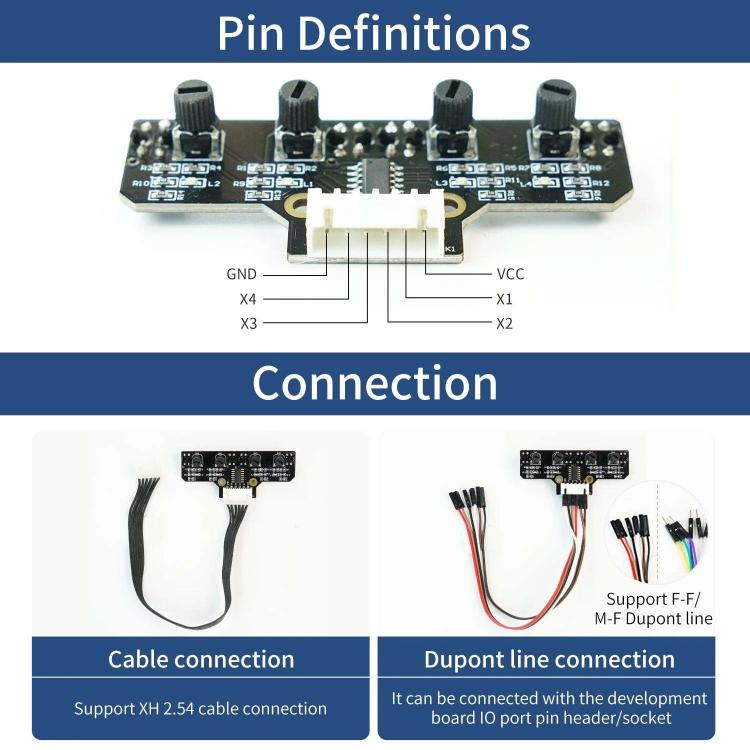

- Output Interface: 6-pin interface
- Output Signal: TTL level

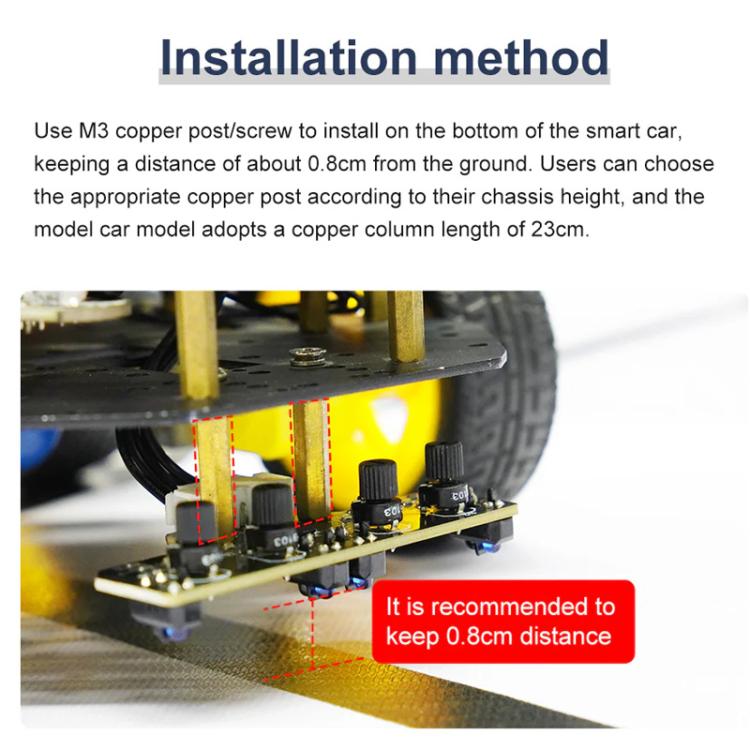

- Installation Hole Diameter: M3 copper post/screw

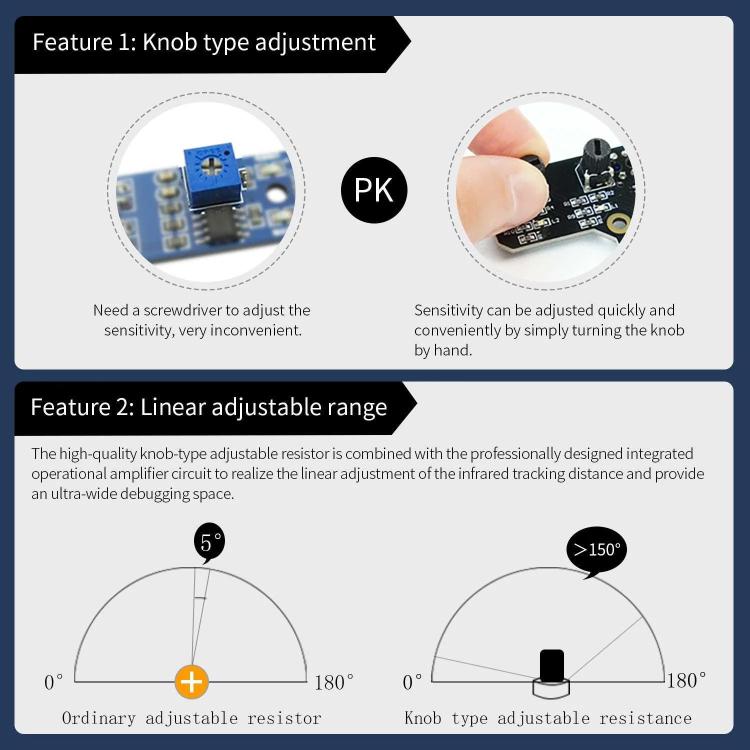

- Knob-type adjustable resistor for sensitivity adjustment

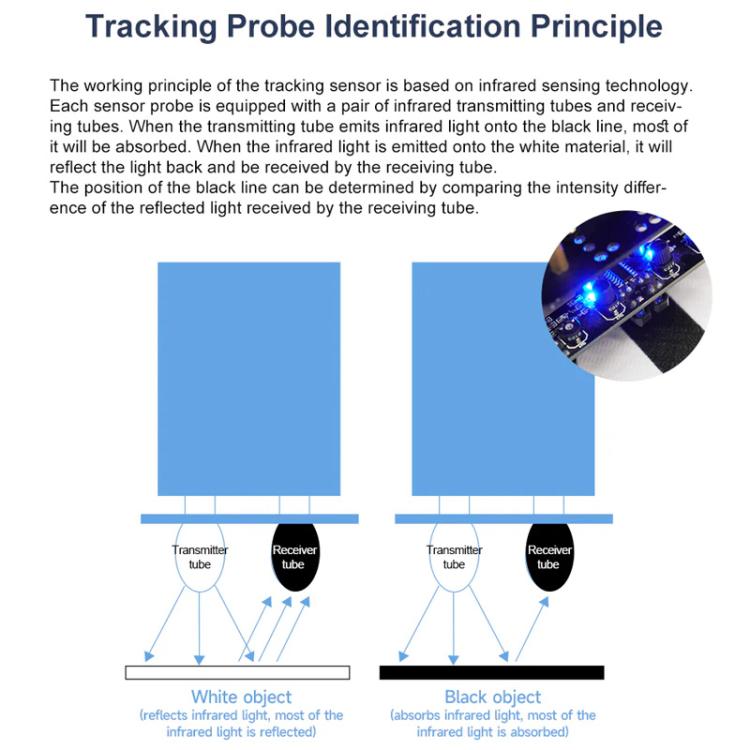

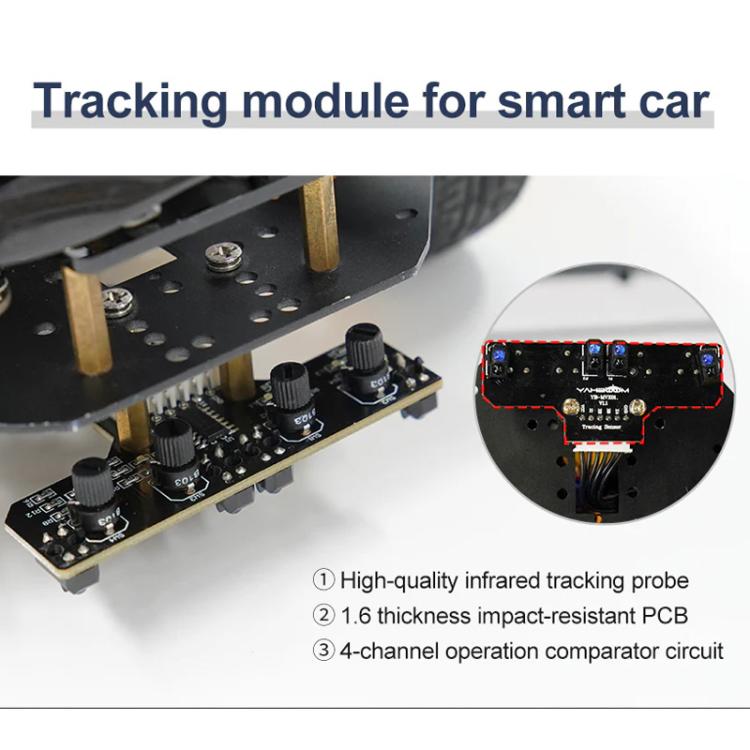

- High-quality infrared probes with onboard four-channel comparator circuits
- 1.6-inch thick shock-resistant PCB
- Anti-reverse connection design for interfaces
- Reference materials, driver source code, and graphical programming tools provided
