Description

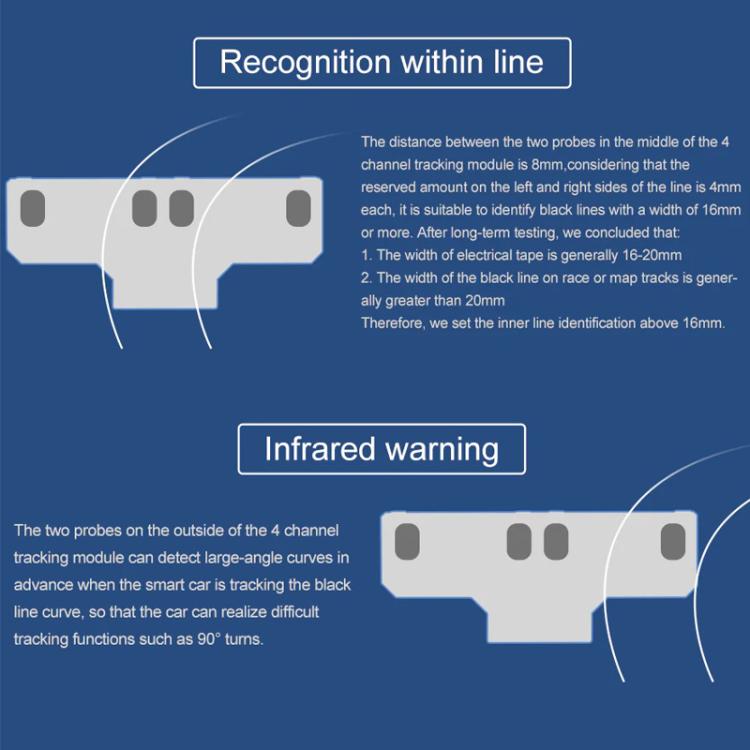

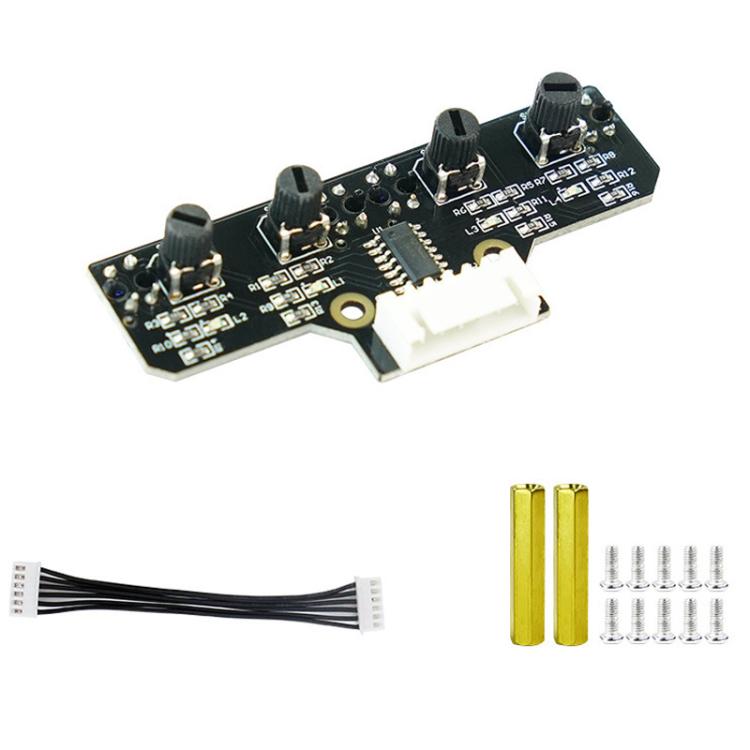

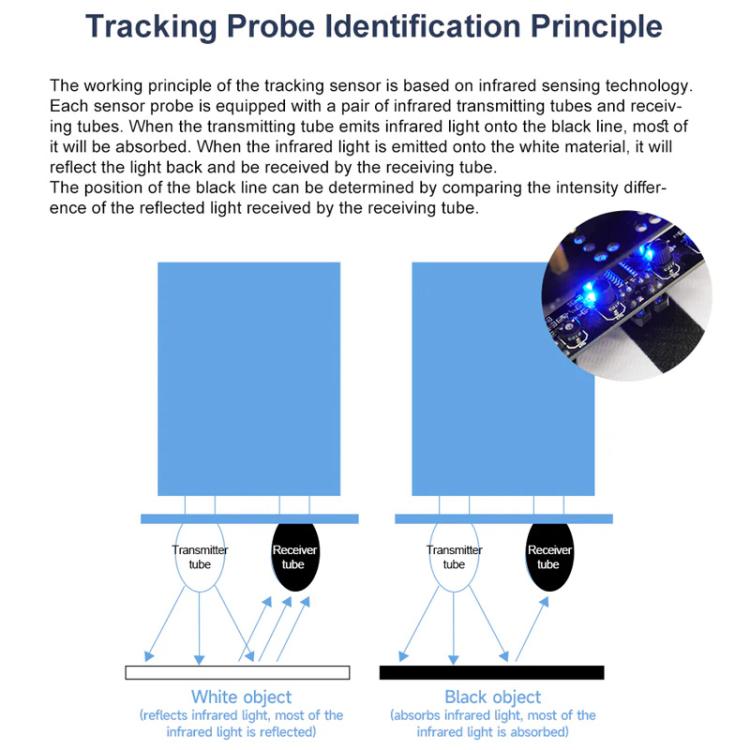

The Yahboom 4 Channel Infrared Tracking Sensor Module is designed for tracking applications in smart car robots. It enables precise line detection and navigation, allowing vehicles to recognize complex road surfaces and 90-degree turns.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB
- Key Feature: Adjustable sensitivity
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius
- Installation Hole Diameter: M3 copper post/screw
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)
- Product Size: 70 x 29mm
- Output Interface: 6-pin interface; 4 signal output terminals
- Output Signal: TTL level
- Additional Features: High-quality infrared probes, onboard four-channel comparator circuits, shock-resistant PCB, anti-reverse connection design, high-precision knob adjustment, reference materials, driver source code, graphical programming tools
