Description

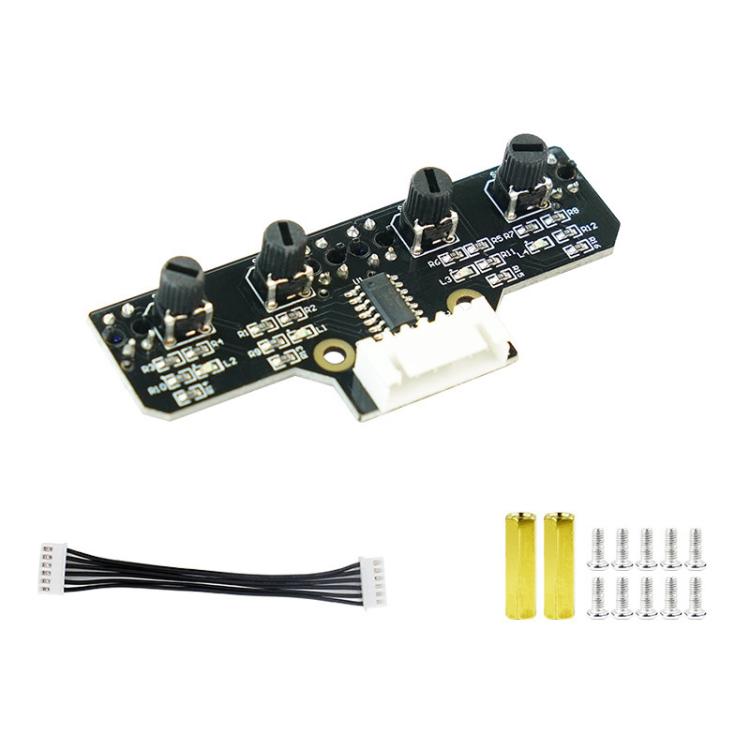

The Yahboom 4 Channel Infrared Tracking Sensor Module is designed for use in smart car robots. It enables the vehicle to detect and follow black lines, recognize turns, and navigate complex surfaces.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB
- Key Feature: Adjustable sensitivity
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)
- Product Size: 70 x 29mm
- Output Interface: 6-pin interface
- Output Signal: TTL level (can be directly connected to the I/O port of the microcontroller)
- Installation Hole Diameter: M3 copper post/screw
- Knob-type adjustable resistor for sensitivity adjustment
- High-quality infrared probes with onboard four-channel comparator circuits
- 1.6-inch thick shock-resistant PCB
- Anti-reverse connection design for interfaces
- Reference materials, driver source code, and graphical programming tools provided
