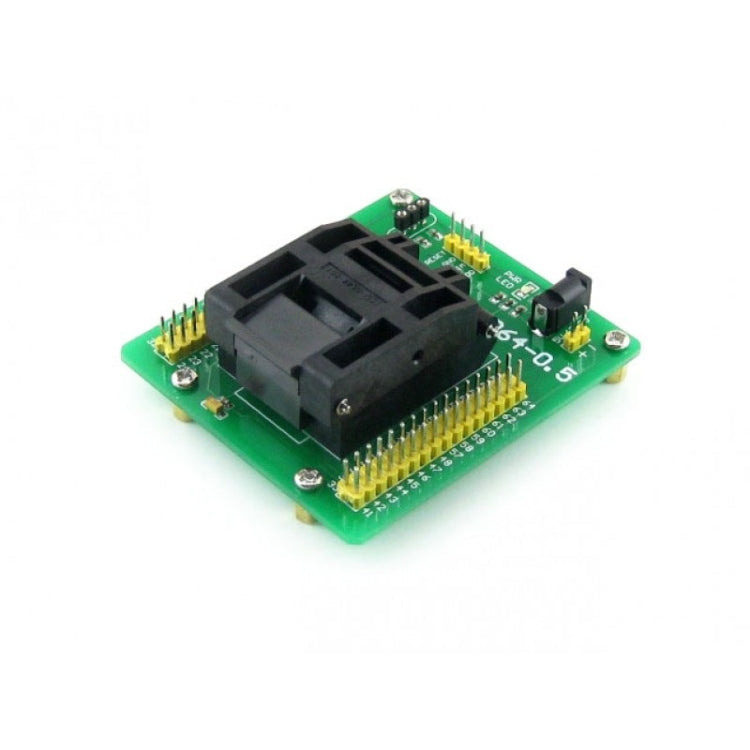

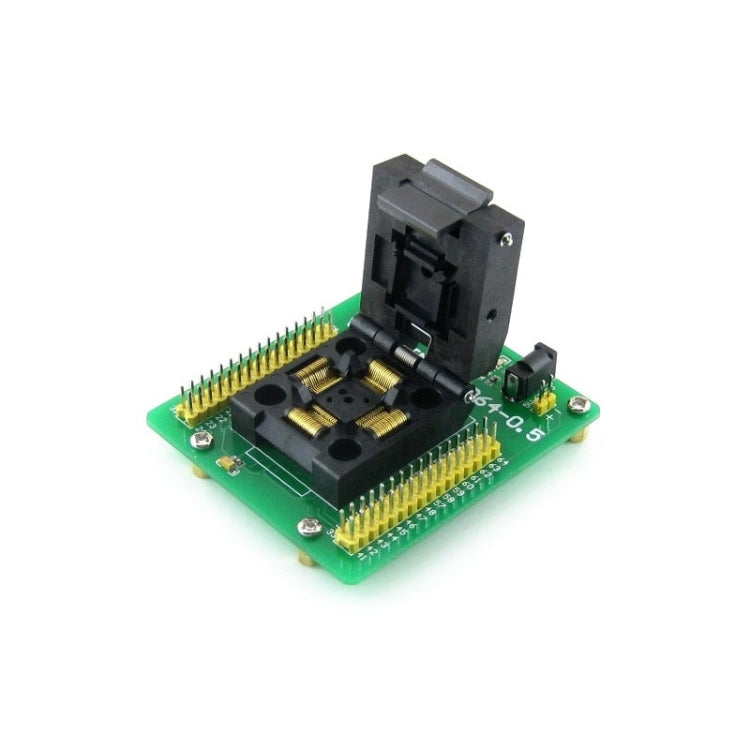

Waveshare STM8-QFP64-0.5, Programmer Adapter

Waveshare STM8-QFP64-0.5, Programmer Adapter

Regular price R 1,539.00
Regular price Sale price R 1,539.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
1. 4-pin SWIM Port for programming or testing
2. External crystal can be connected via on board socket
3. All the MCU pins are accessible on expansion connectors

Supported Devices
STM8 microcontroller in QFP64(0.5mm pitch) package with compatible pinouts
- STM8S207RxTx / STM8S208RxTx
- STM8Ax51x9T / STM8Ax52x9T / STM8Ax61x9T / STM8Ax62x9T

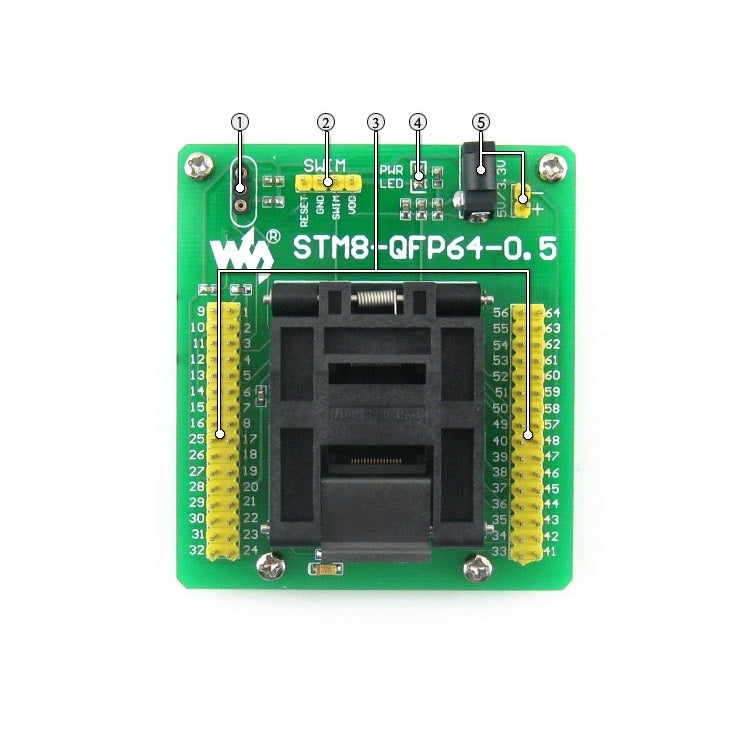

Photos
1. External crystal socket
- Insert crystal to the holes on two sides, regardless of the middle hole

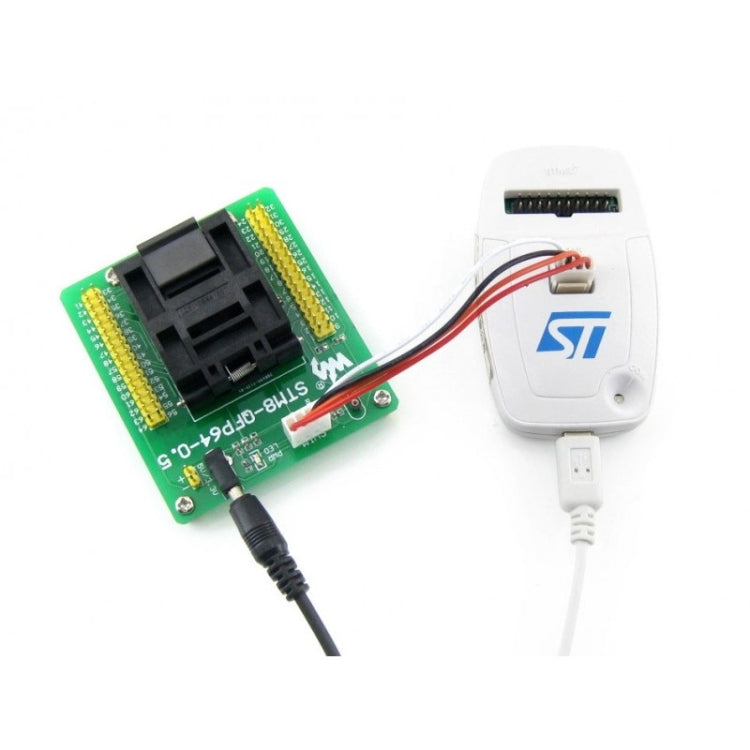

2. SWIM port
- For programming/debugging/testing
- Compatible with ST-LINK, ST-LINK/V2, etc.
3. Pin headers connected to MCU pins
- Clearly labeled with onboard marks
- Easy for testing and further expansion
4. Power indicator
5. Power input
- DC5V/3.3V

Package Contents
1. STM8-QFP64-0.5 × 1
2. USB power cable × 1
