Description

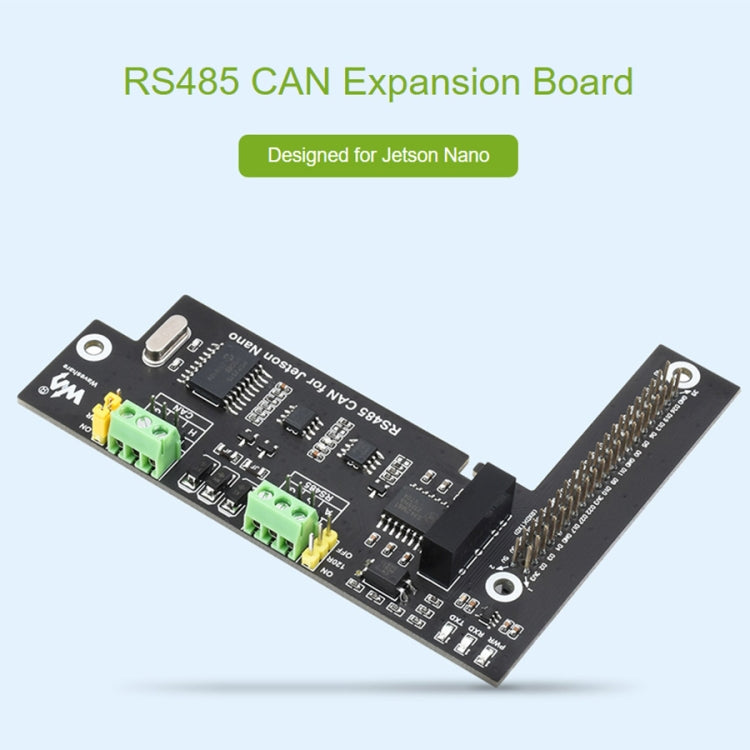

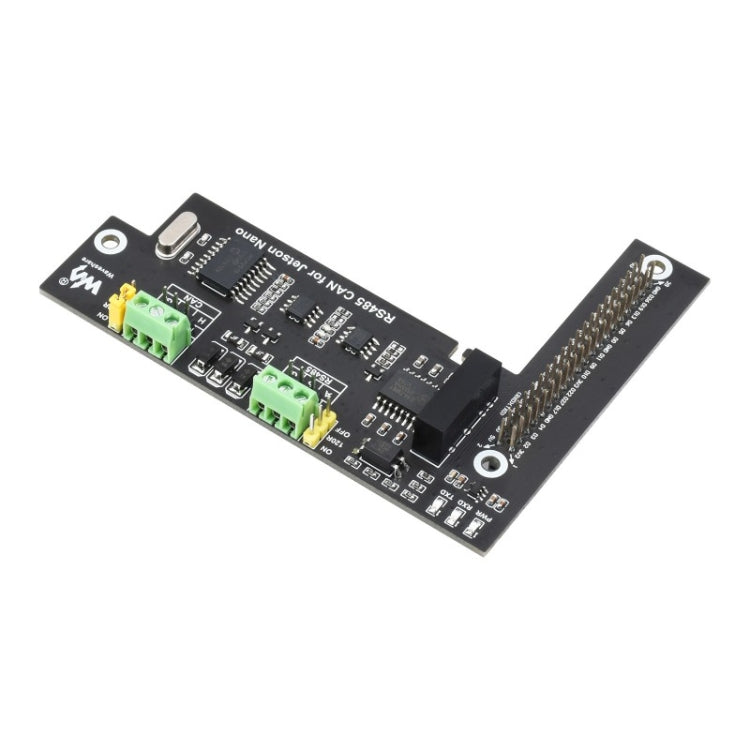

The Waveshare RS485 CAN Expansion Board is a module designed for the Jetson Nano. It provides digital isolation and built-in protection circuits for reliable communication in various applications.
- Product Type: Expansion Module
- Compatibility: Jetson Nano
- Material: Electronic components
- Key Feature: Digital isolation

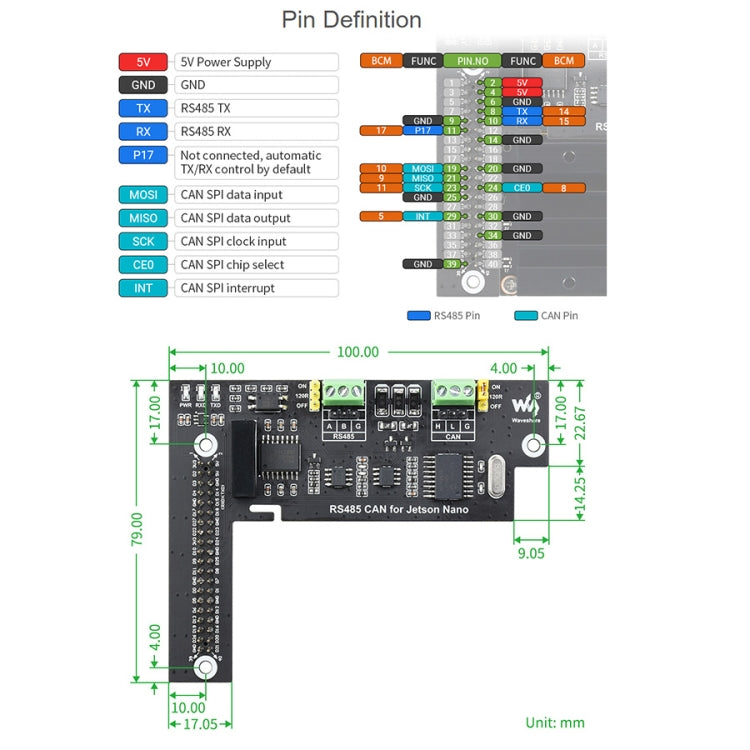

- Dimensions: 100 x 79 mm
- Working Voltage: 3.3V

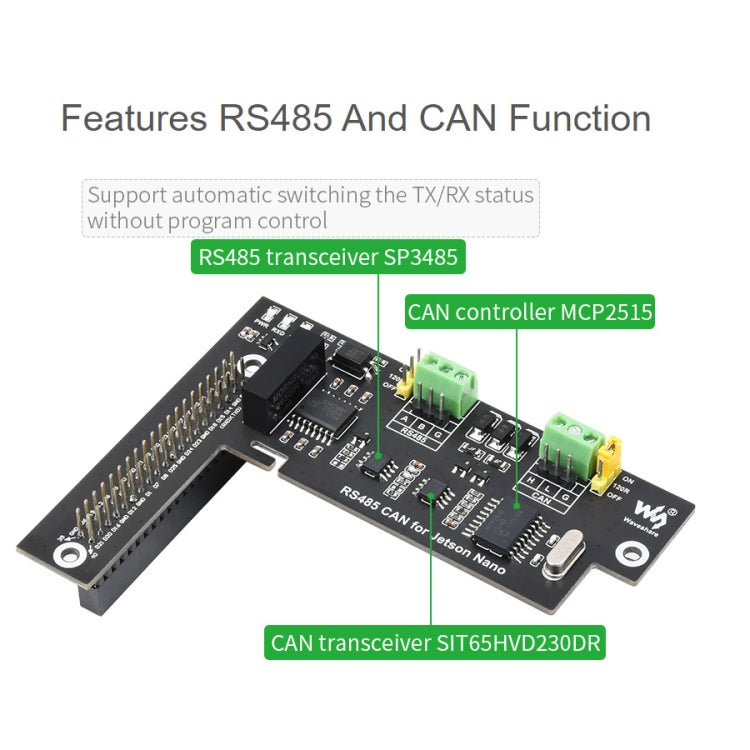

- CAN Controller: MCP2515
- CAN Transceiver: SIT65HVD230DR
- RS485 Transceiver: SP3485
- Mounting Hole Size: 3.0 mm

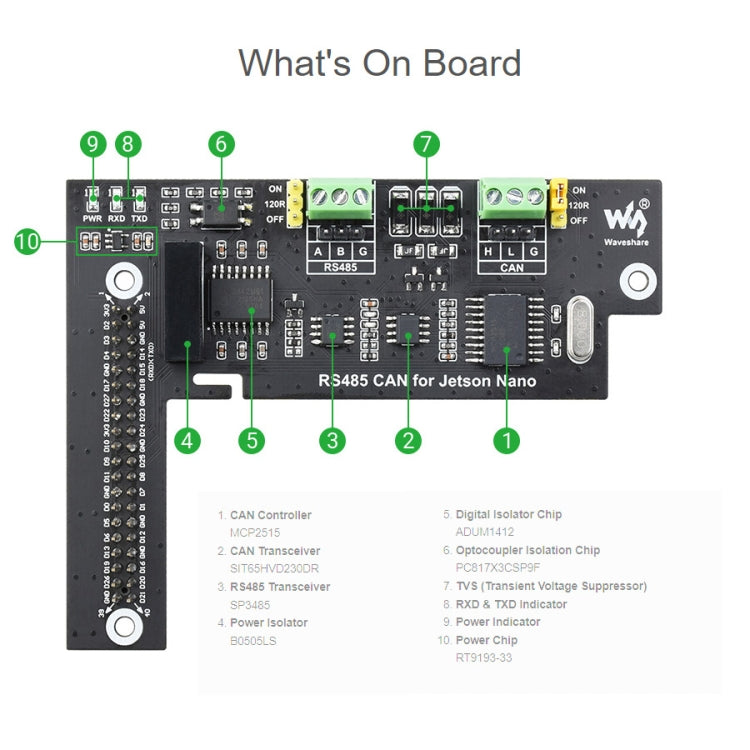

- Onboard Features:
- Standard 40PIN GPIO extension header
- Onboard CAN controller via SPI interface
- RS485 function controlled via UART with automatic TX/RX control

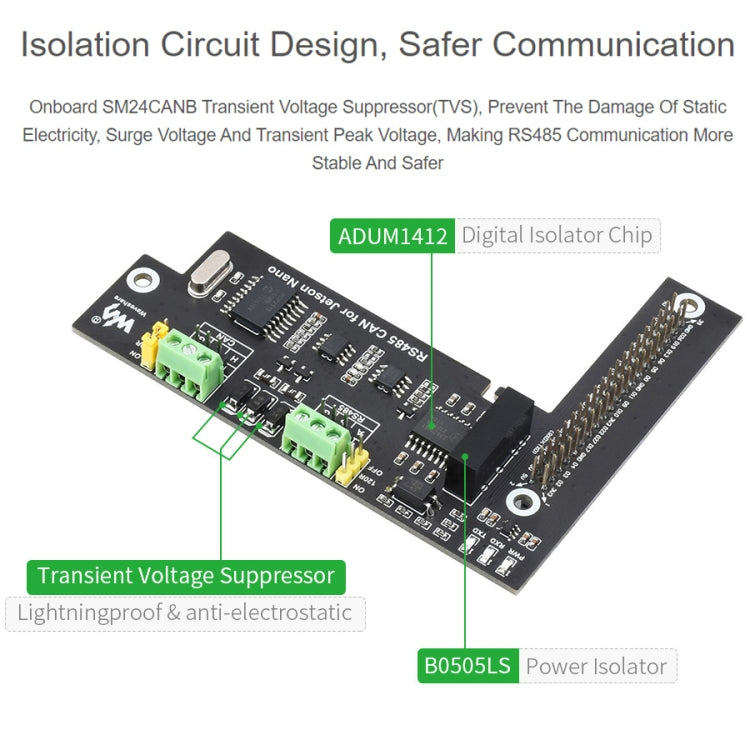

- Onboard TVS for surge voltage suppression
- Onboard digital isolation chip for signal isolation and stability
- Reserved control pins for compatibility with other control boards
- Development resources and manual included (examples in Python)
