WAVESHARE ESP32-P4-WIFI6-DEV-KIT-C High-Performance Development Board Supports Wi-Fi 6 And Bluetooth 5 / BLE 5

The WAVESHARE ESP32-P4-WIFI6-DEV-KIT-C is a high-performance development board designed for Wi-Fi 6 and Bluetooth 5 applications. It is suitable for projects requiring advanced image and voice processing capabilities, such as smart home devices and IoT applications.

• MCU: RISC-V 32-bit dual-core and single-core processors
• Memory: 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
• Image and voice processing: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 video encoder
• Memory: 32MB PSRAM (chip-on-chip stacked), 16MB NOR Flash
• On-board interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, speaker terminals, RTC battery terminal
• GPIO: 28 additional programmable GPIO pins via 2 × 20 pin headers
• Security: Secure boot, Flash encryption, hardware encryption accelerator, hardware random number generator, Access Permission Management (APM), privilege separation
• Wireless capabilities: 2.4GHz Wi-Fi 6, Bluetooth 5 (LE) via onboard ESP32-C6 chip
• Power supply: Reserved PoE module interface
• AI platform support: Compatible with mainstream AI platforms, including Doubao and DeepSeek AI models

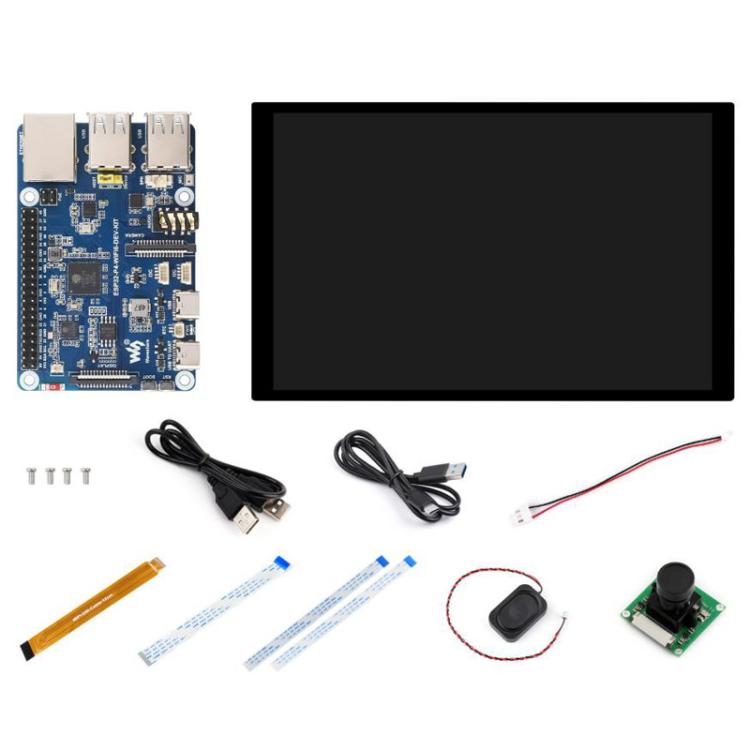

• Package contents: ESP32-P4-WIFI6-DEV-KIT x 1, 10.1-DSI-TOUCH-A x 1, RPi Camera (B) x 1, 8 ohms 2W speaker x 1, FFC 15-pin cable x 1, MIPI-DSI cable (12cm) x 1, FFC 22-pin cable x 2, MX1.25 2-pin to SH1.0 2-pin cable (about 80mm) x 1, MX1.25 2-pin to 2.54mm 3-pin cable (about 110mm) x 1, USB Type-A dual male cable x 1, USB Type-A to Type-C cable (about 1m) x 1, SH1.0 4-Pin connector cable (about 150mm) x 2, copper pillar pack x 1, screw pack x 1
