WAVESHARE ESP32-P4-Pico-KIT-B High-Performance Development Board With RISC-V Dual-Core And Single-Core Processors Rich Human-Machine Interfaces

The WAVESHARE ESP32-P4-Pico-KIT-B is a high-performance development board designed for various development applications. It is suitable for projects requiring advanced image and voice processing capabilities, such as multimedia applications and IoT devices.

• Product Type: Arduino Nucleo Accessories
• Compatibility: ESP32-P4-Pico-KIT-B
• Material: Various
• Key Feature: High-performance MCU
• Processor: RISC-V 32-bit dual-core and single-core processors
• Memory: 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
• Image and Voice Processing: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 video encoder
• On-board PSRAM: 32MB stacked within the chip package
• External Storage: 32MB Nor Flash integrated externally
• Peripheral Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone, speaker terminals
• GPIO: 27 additional programmable GPIOs exposed via 2 × 20 header pins
• Security Features: Secure boot, Flash encryption, hardware encryption accelerator, hardware random number generator, Access Permission Management (APM)
• Size: Approximately 5.73 x 2.1 cm

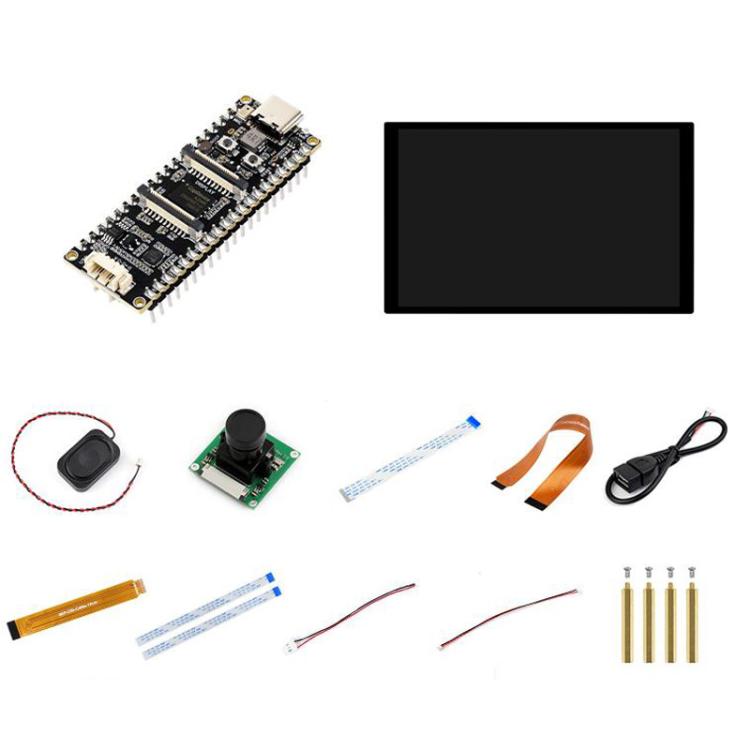

• Package Contents: ESP32-P4-Pico-M, 10.1-DSI-TOUCH-A, 8 ohms 2W speaker, Pi5-Camera-Cable-200mm, FFC 15-pin ribbon cable, RPi Camera (B), MX1.25 4-pin to USB cable, MIPI-DSI-Cable-12cm, MX1.25 2-pin to 2.54mm 3-pin jumper cable, FFC cable 22PIN about 200mm (opposite direction), MX1.25 2PIN to MX1.25 4PIN about 150mm, Copper pillar pack
