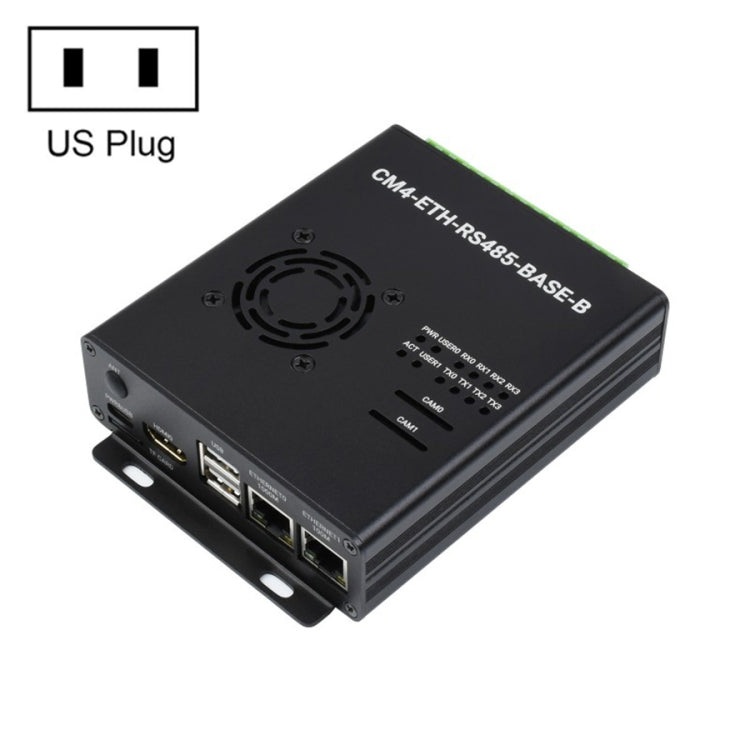

Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(US Plug)

Waveshare Dual ETH Mini-Computer for Raspberry Pi CM4, Gigabit Ethernet, 4CH Isolated RS485(US Plug)

Regular price R 1,809.00
Regular price Sale price R 1,809.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Specifications

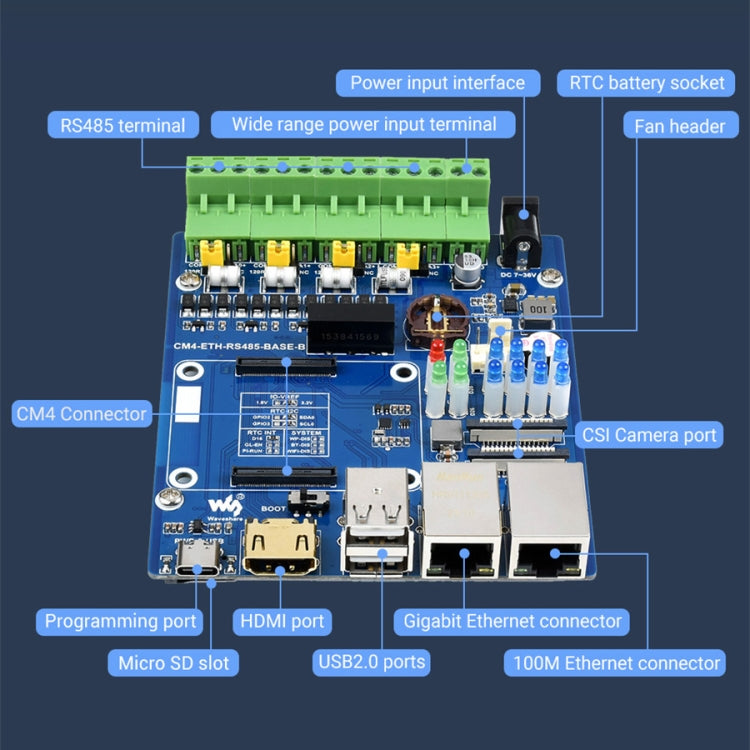

1. CM4 Socket: Available on all variants of Compute Module 4

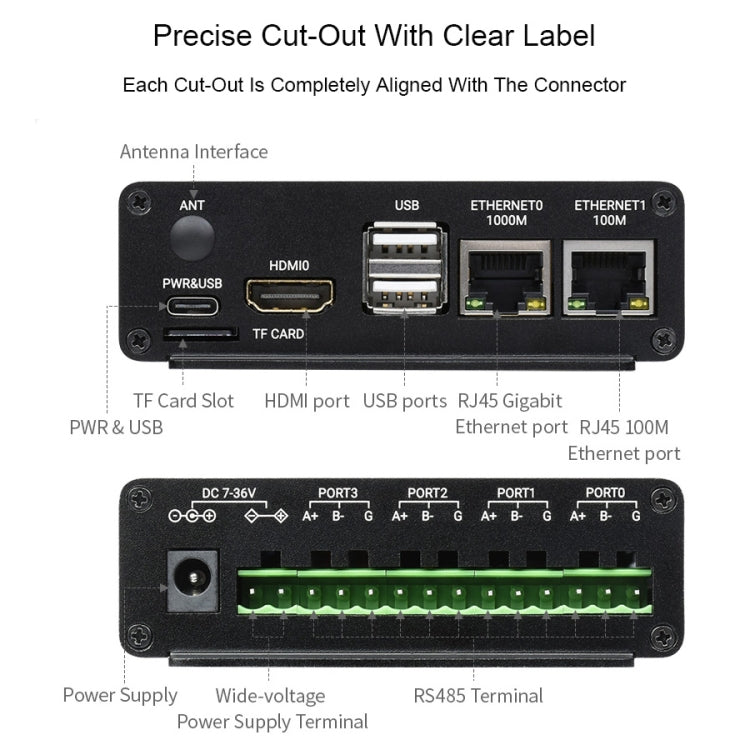

2. Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
3. USB: USB 2.0 Type A x 2
4. Connector: Isolated RS485 x 4, power screw terminal x 1
5. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
6. Video: HD-MI interface x 1, support 4K 30fps output
7. RTC: Real Time Clock with Battery Socket and Ability to Wake Compute Module 4
8. Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC) variant
9. Fan head: allow speed adjustment, 5V
10. Indicator: Power indicator x 1, CM4 status indicator x 1,
User LED x 2, RS485 communication indicator x 8
11. Power input: 7-36V
12. Dimensions: 123 x 98 x 32mm

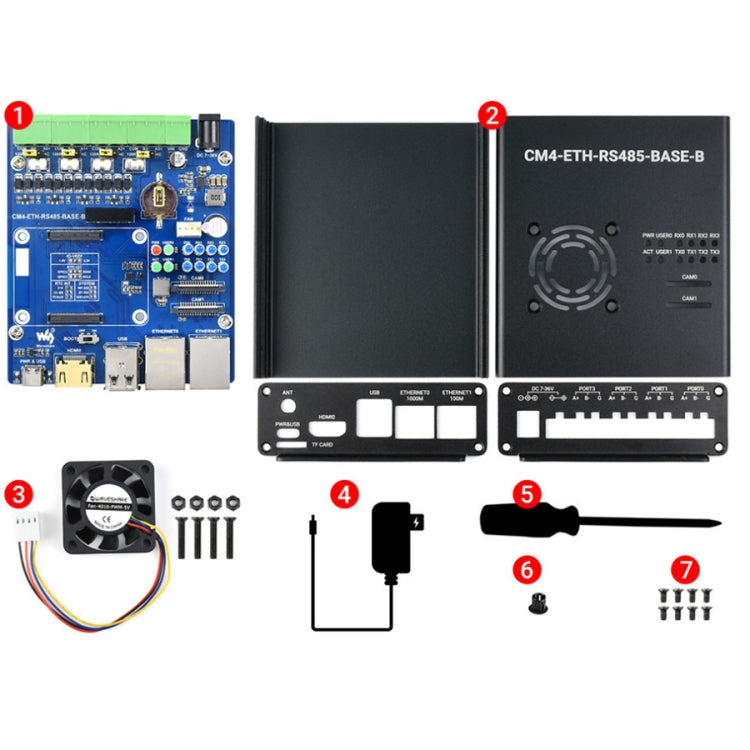

Package List
1. CM4-ETH-RS485-BASE-B x 1
2. Metal case (top and bottom) x 1

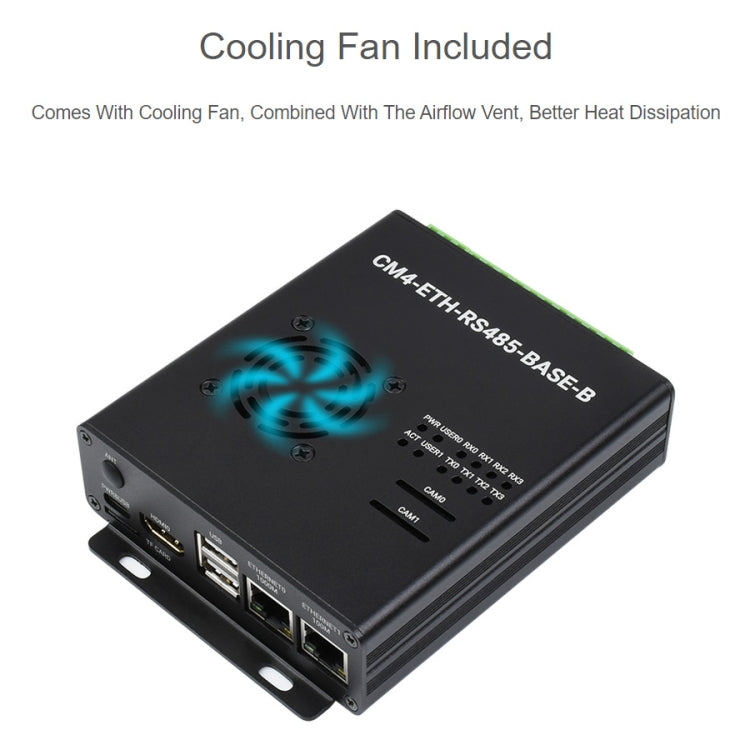

3. Fan x 1
4. 12V 2A Power Supply x 1
5. Screwdriver x 1
6. Antenna connector rubber plug x 1
7. Screws pack x 1
