Description

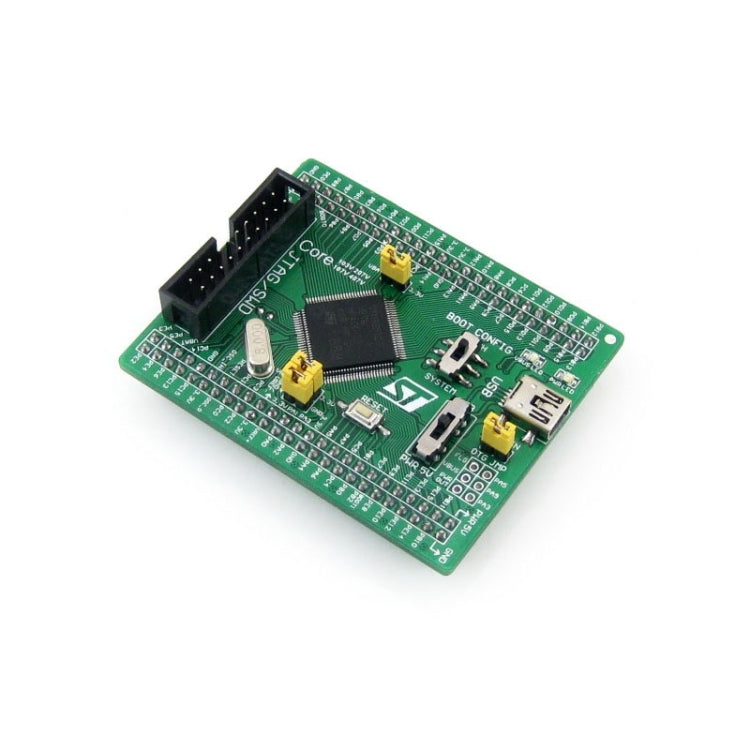

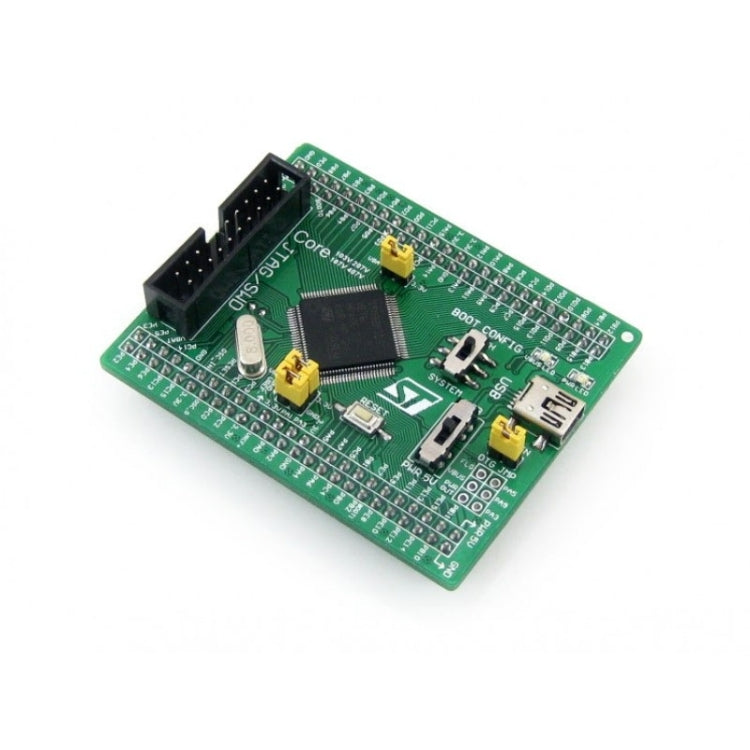

The Waveshare Core103V is an STM32F1 core board designed for development purposes. It is suitable for application development with the STM32F family, providing essential interfaces for programming and debugging.
- Product Type: MCU Tools
- Compatibility: STM32F103VET6
- Material: Durable
- Key Feature: Compact design
- Intended Use: Development
- Core: Cortex-M3 32-bit RISC
- Operating Frequency: 72MHz
- Operating Voltage: 2-3.6V
- Package: LQFP100
- I/Os: 80
- Memories: 512kB Flash, 64kB RAM
- MCU Communication Interfaces: 3 x SPI, 5 x USART, 2 x I2S, 2 x I2C, 1 x FSMC, 1 x LCD, 1 x SDIO, 1 x USB, 1 x CAN
- AD & DA Converters: 3 x AD (12-bit, 1μs, shares 16 channels); 2 x DA (12-bit)

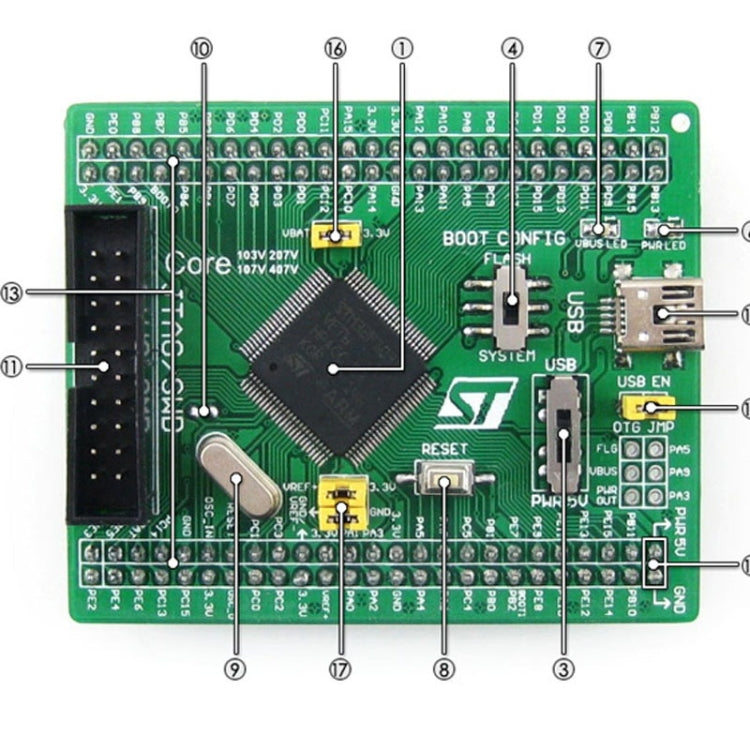

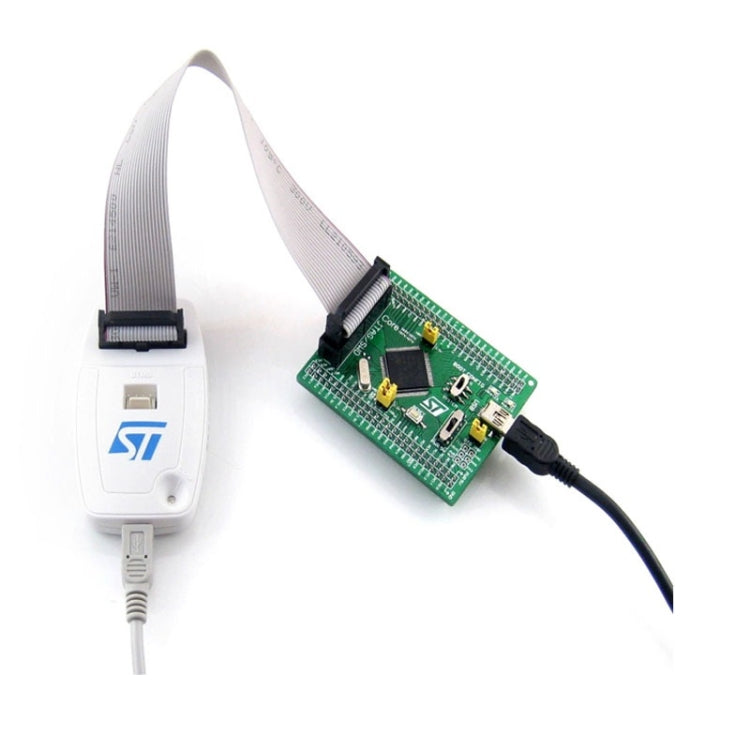

- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- Power Supply: Powered from 5Vin or USB connection
- Boot Mode Selection: Configurable BOOT0 and BOOT1 pins
- Power Indicator: Yes
- Reset Button: Yes
- Crystal Oscillators: 8M crystal oscillator, 32.768K crystal for internal RTC
- USB Connector: For USB communication with PC
- IO Expander: All I/O pins accessible on expansion connectors
- 5V Power Supply Input: Yes
- USB Enable Jumper: Configurable to enable/disable USB function
- VBAT Selection Jumper: Configurable for system or external power
- VREF Selection Jumper: Configurable for VREF+/VREF- connections
- Package Contents: Core103V development board x 1, USB type A to Mini-B cable x 1, Software CD x 1
