Waveshare Adapter Board for Arduino & Raspberry Pi

Name: Waveshare Adapter Board for Arduino & Raspberry Pi
Brand: Waveshare
SKU: ZY15265261
Price: 659.00 ZAR
Availability: InStock

R 659.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

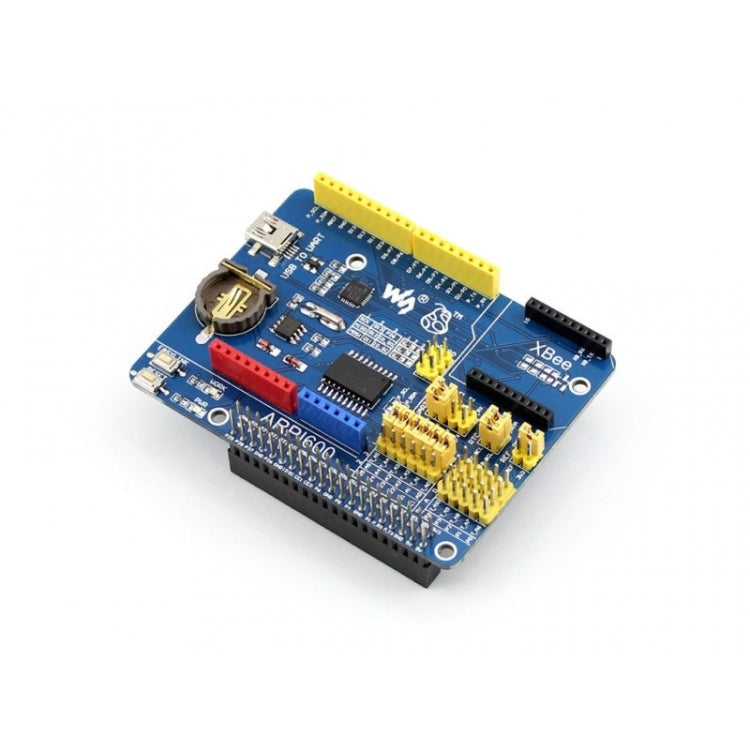

Overview

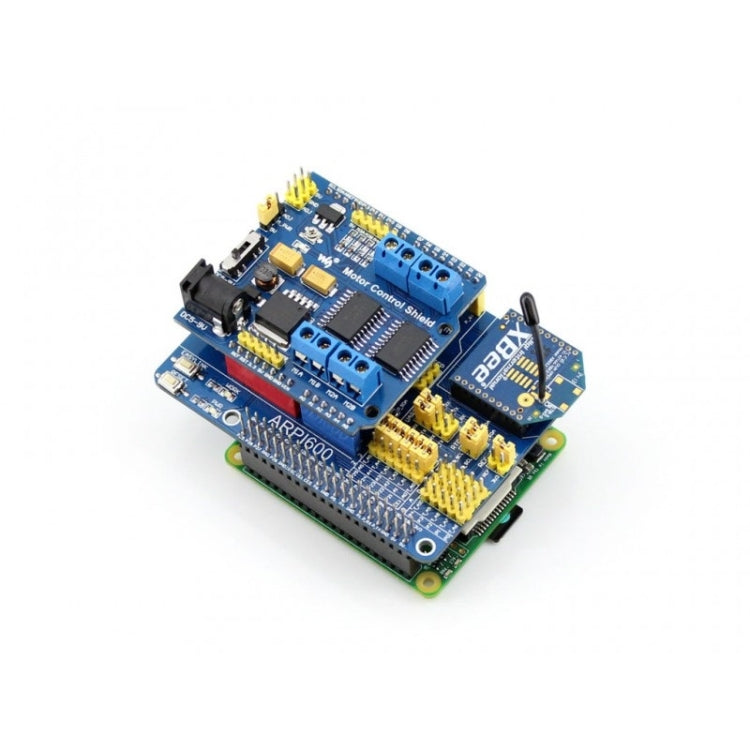

Arduino is a massive ecosystem, if there is a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.

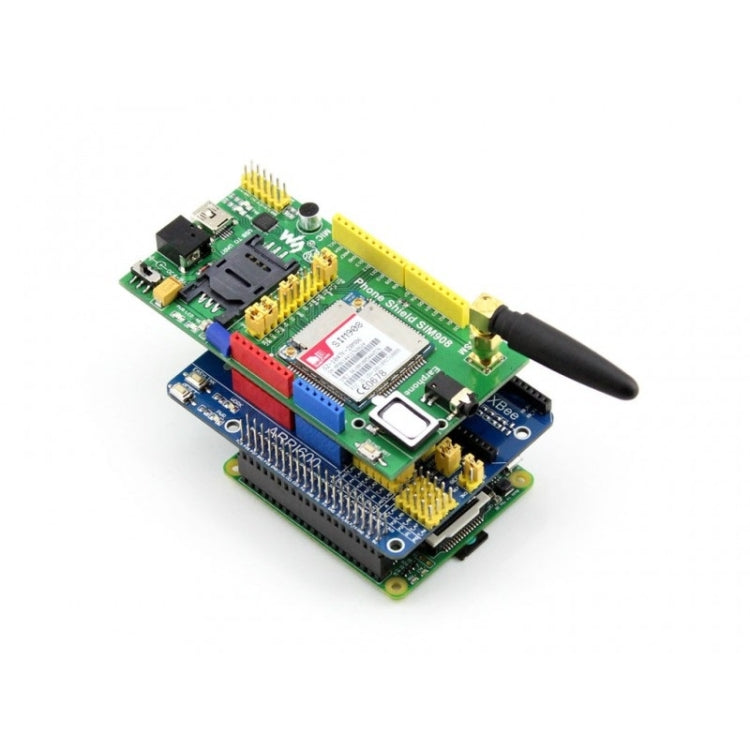

What is more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.

Supported Pi
1. Raspberry Pi 1 Model A+
2. Raspberry Pi 1 Model B+
3. Raspberry Pi 2 Model B
4. Raspberry Pi 3 Model B
5. Raspberry Pi 3 Model B+

ARPI600 Features

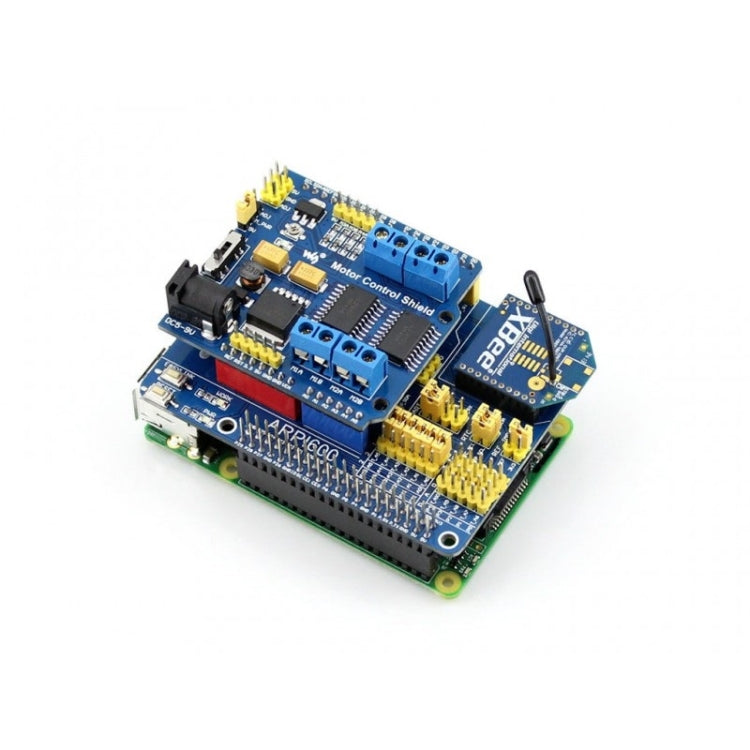

1. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields

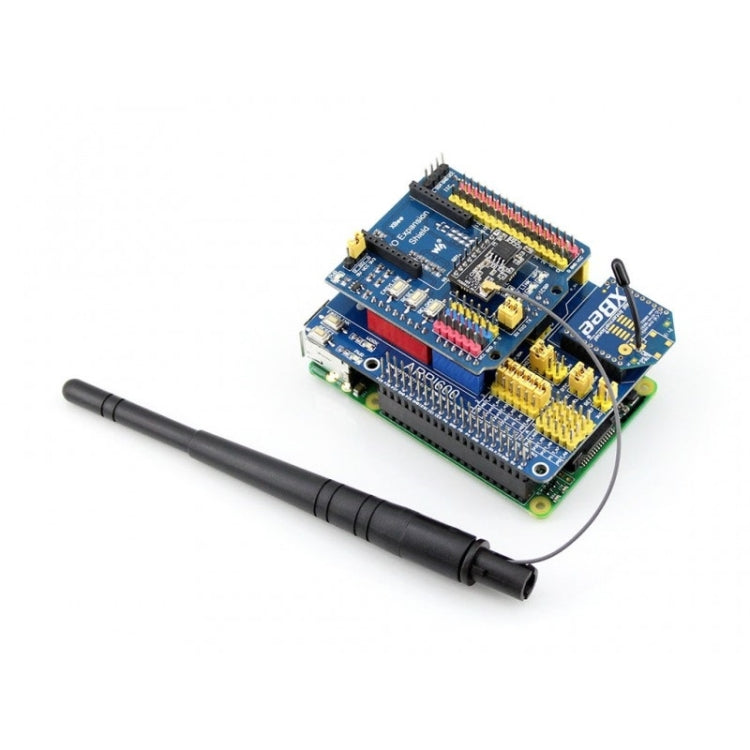

2. XBee connector for connecting various XBee modules

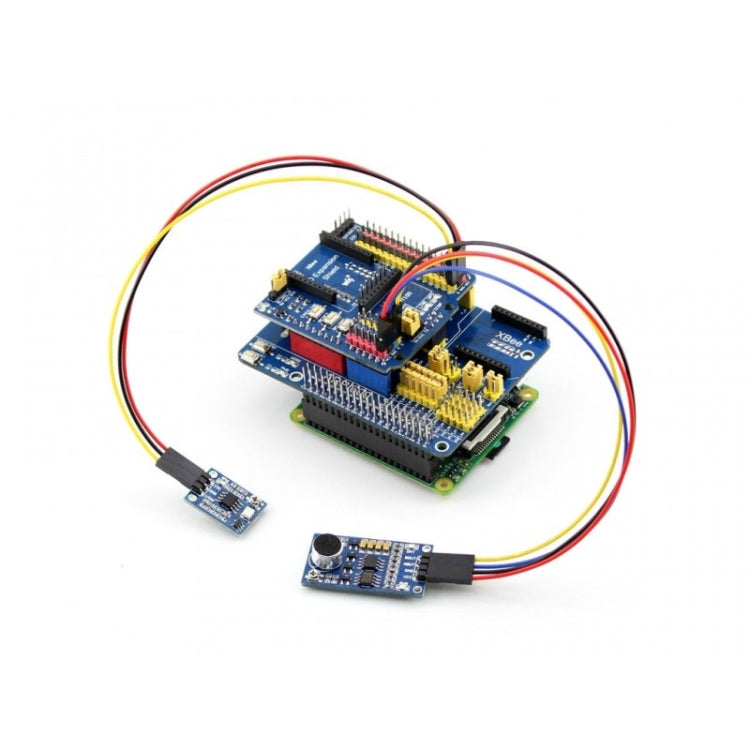

3. Sensor interface for connecting various sensors
4. Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
5. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
6. Onboard RTC

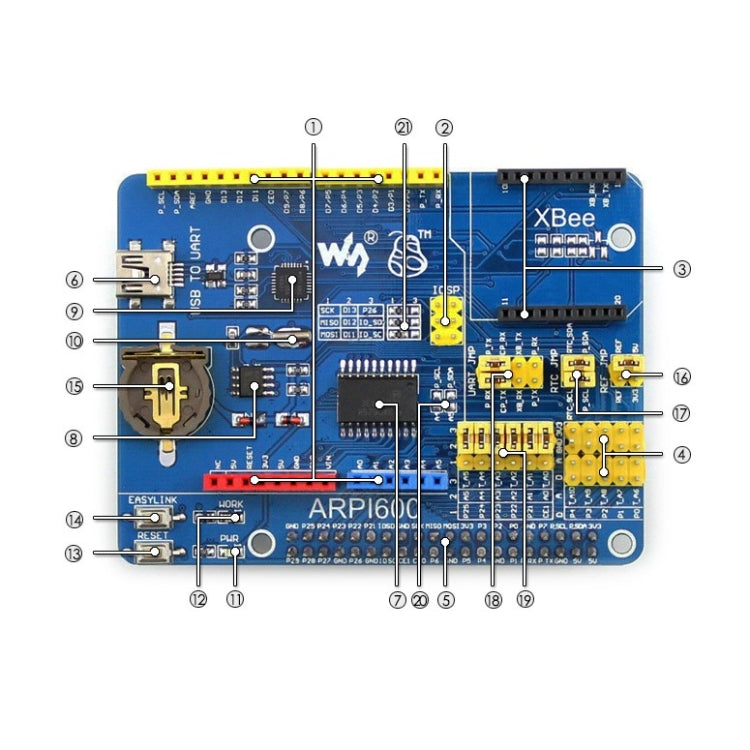

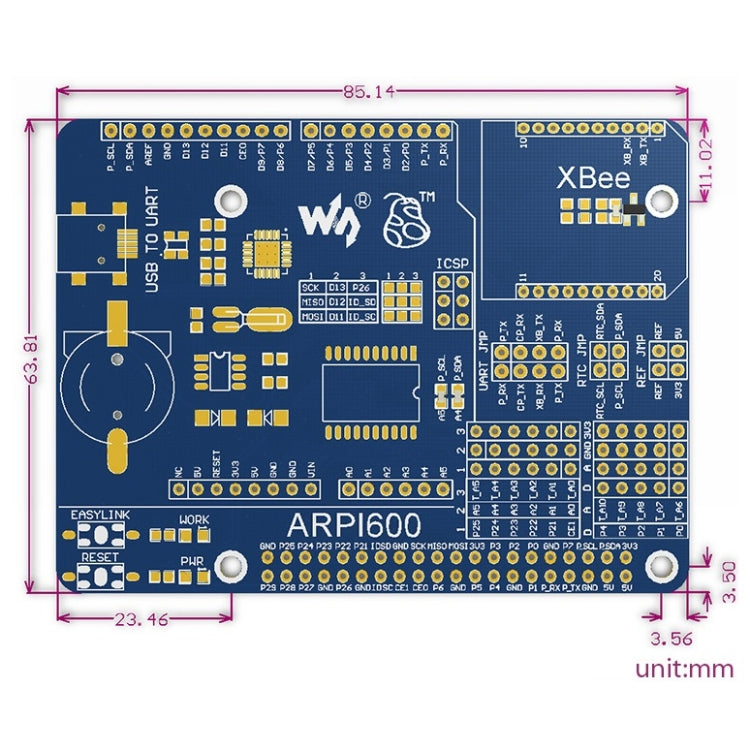

What is on the ARPI600
1. Arduino connector: For connecting Arduino shields
2. ICSP interface: Arduino ICSP
3. XBee connector: For connecting XBee communication modules
4. Sensor interface: For connecting sensors
5. Raspberry Pi connector: For connecting Raspberry Pi
6. USB TO UART
7. TLC1543: AD converter
8. PCF8563: RTC
9. CP2102
10. 32.768KHz crystal: For RTC
11. Power indicator
12. XBee state LED
13. XBee and Arduino interface RESET button
14. XBee EASYLINK button
15. RTC battery holder: For CR1220 button battery
16. TLC1543 reference voltage configuration jumper
17. RTC jumper
18. UART jumper
- When connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
- When connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
- When connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
19. Arduino AD selection jumper
- Short 2 and 3: Arduino A0-A5 as AD input
- Short 1 and 2: Arduino A0-A5 as digital control
20. Arduino I2C selection jumper
- Short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
21. Arduino SPI selection jumper
- Short 1 and 2: Arduino D11-D13 as SPI control (default)
- Short 2 and 3: Arduino D11-D13 as digital control

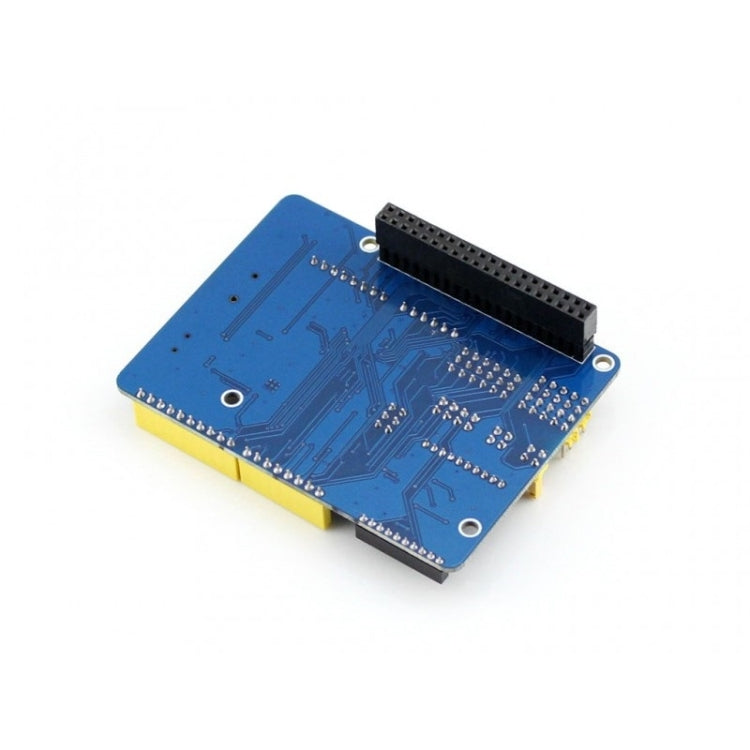

Package Contents
1. ARPI600 x 1
2. USB type A plug to mini-B plug cable x 1
3. RPi screws pack (2pcs) x 1
