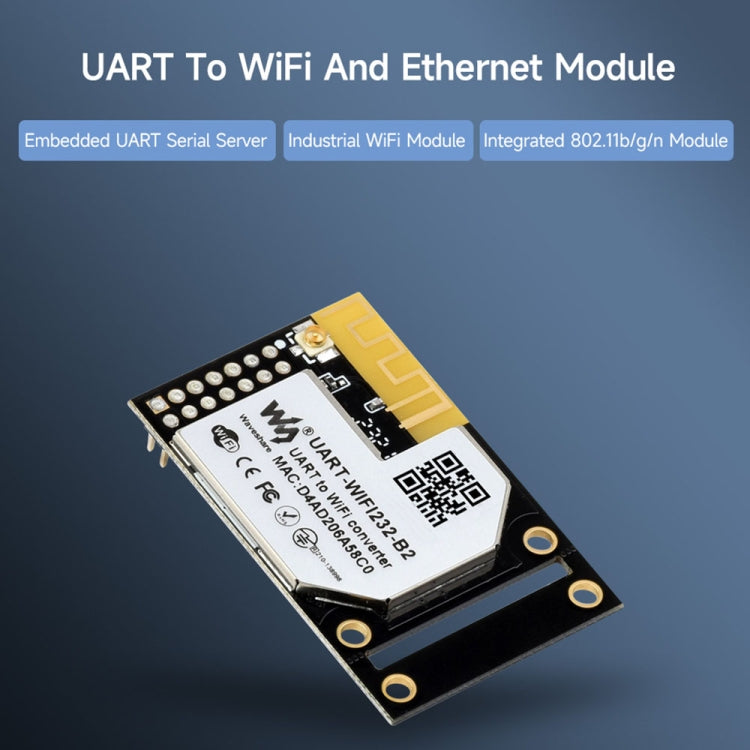

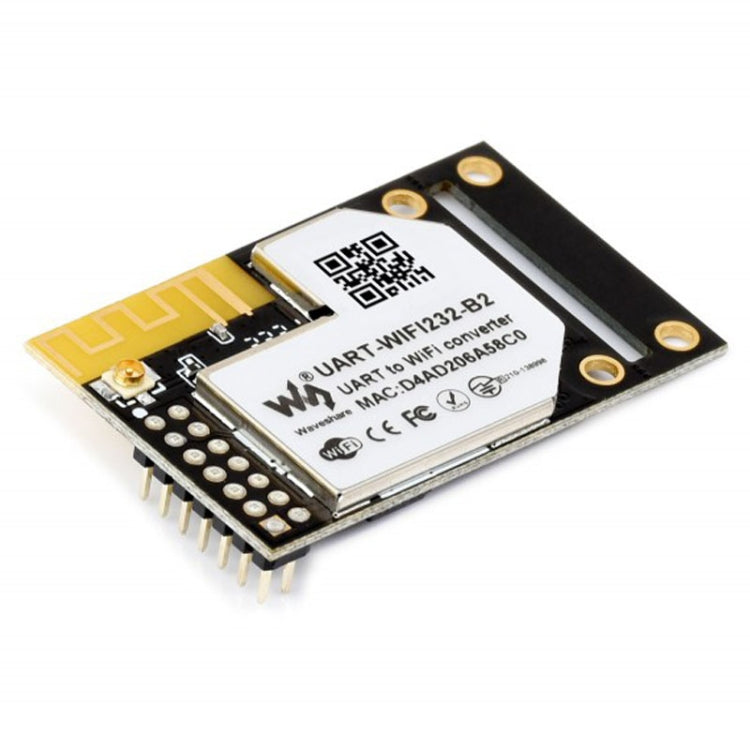

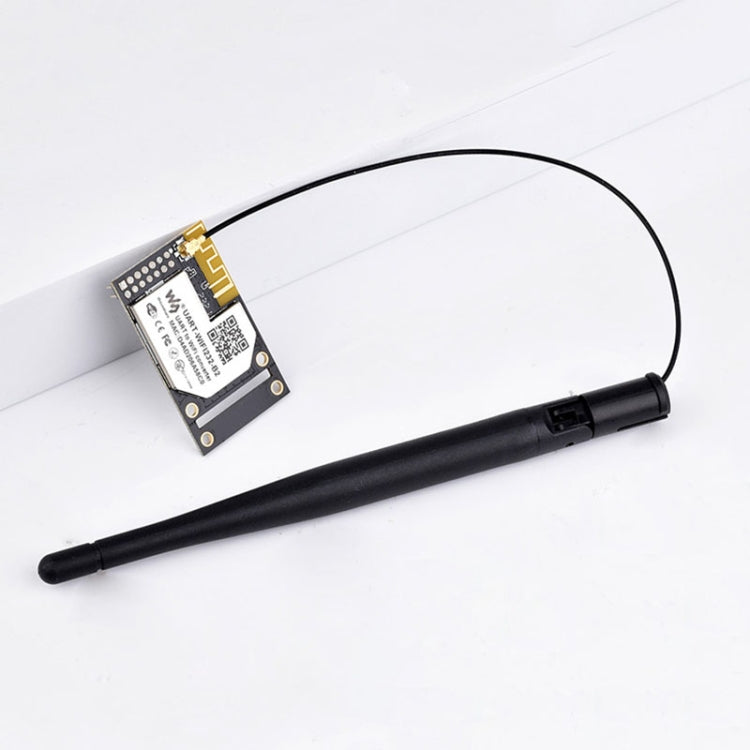

Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module

Waveshare 25116 UART to WiFi And Ethernet Module, Integrated 802.11b/g/n Module

Regular price R 469.00
Regular price Sale price R 469.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


Features:

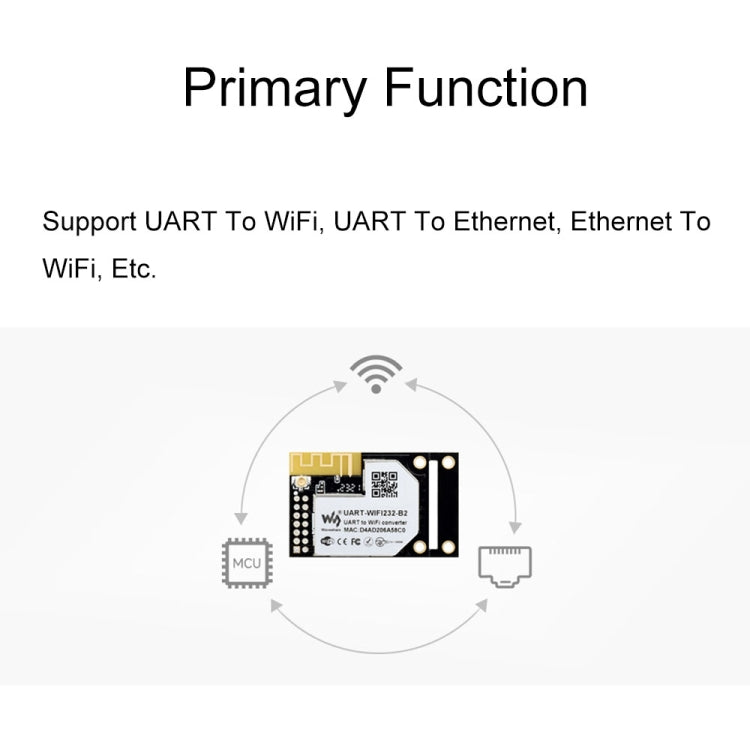

1. This is an industrial-grade integrated 802.11b/g/n module that can realize two-way transparent transmission of TTL serial port, WiFi, and network port.
2. It integrates multiple functions into one, including serial port server, Modbus gateway, MQTT gateway, UART to HTTPD client, etc.
3. Traditional serial port devices or MCU control devices can quickly access WiFi wireless networks through this WiFi module.
4. Small size and easy to install.
5. Suitable for data collection, IoT gateway, security IoT, smart instrument monitoring and other applications

Product parameters:
1. Power supply: DC 3.3V

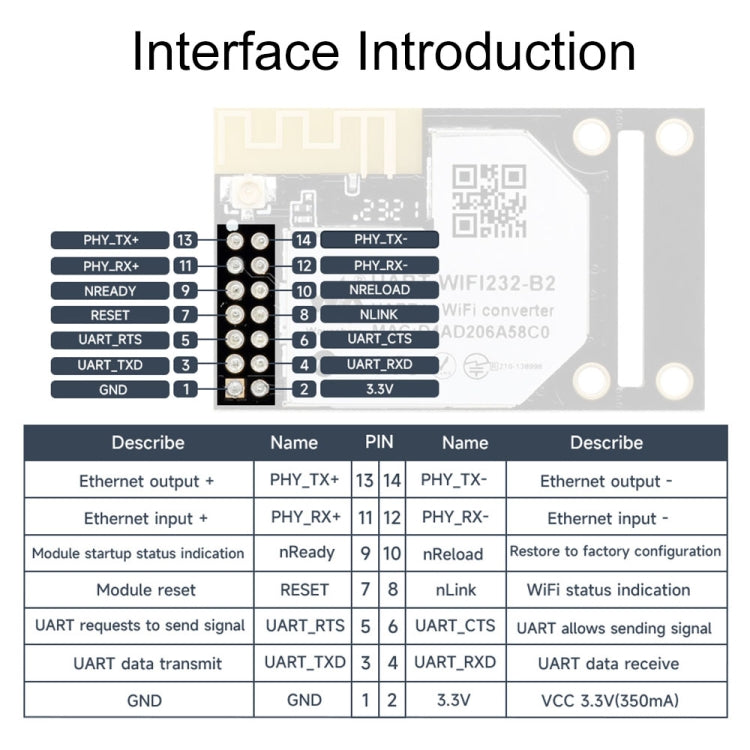

2. Power supply method: pin header

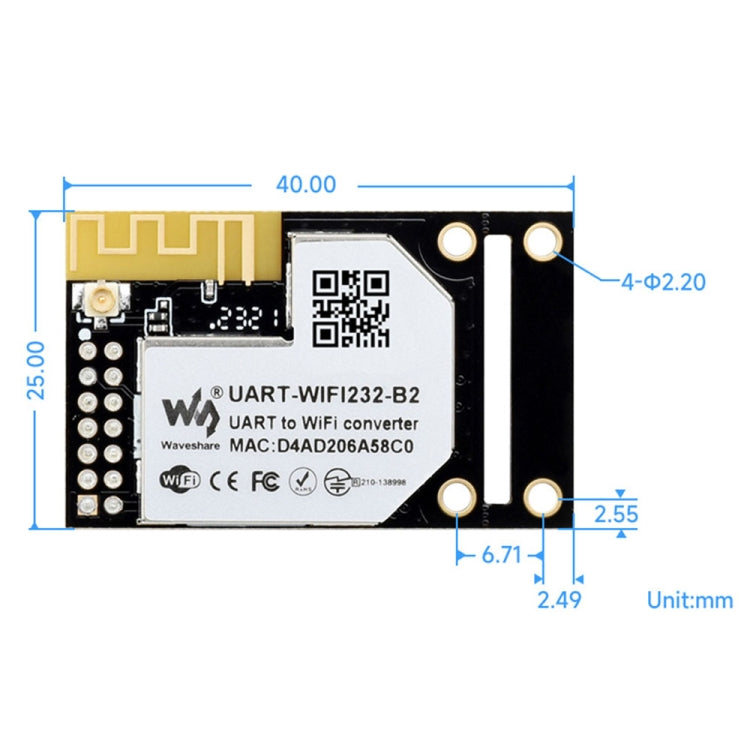

3. Dimensions: 25 x 40 x 8mm
4. Ethernet: 10/100M auto-negotiation (connected through pin header)
5. WIFI: Complies with 802.11b/g/n
6. Serial port: UART
7. Frequency band: 2.412-2.484 GHz
8. Wireless network: Station / AP / AP+Station mode
9. Security mechanism: WPA-PSK / WPA2-PSK
10. Encryption type: TKIP/AES
11. Transmission power:
802.11b: +19dBm (max @11Mbps)
802.11g: +18dBm (max @54Mbps)
802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
12. Receiving sensitivity:
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
13. Baud rate: 300-460800 bps
14. Check digit: none, odd, even, mark, space
15. Data bits: 5-9 bits
16. Flow control: RTS/CTS
17. Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

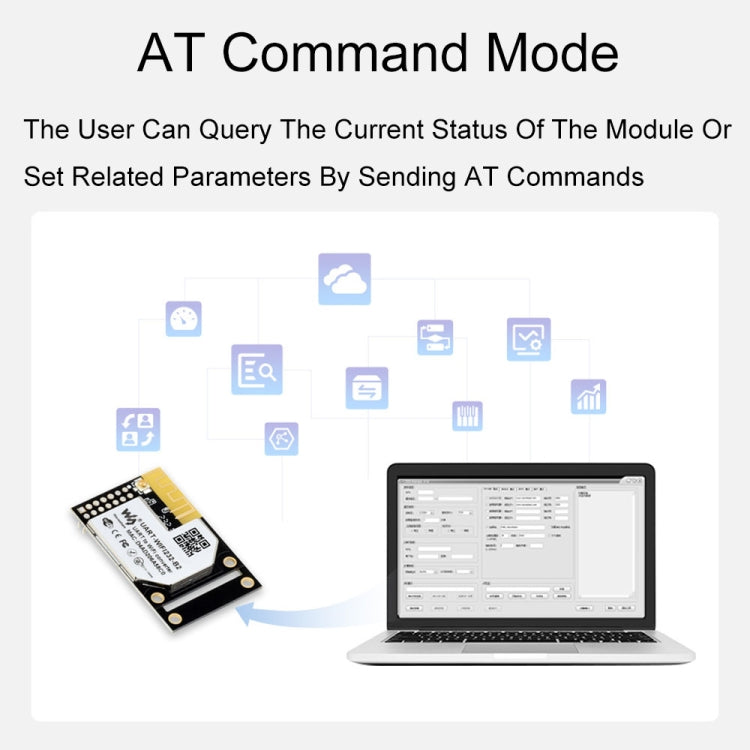

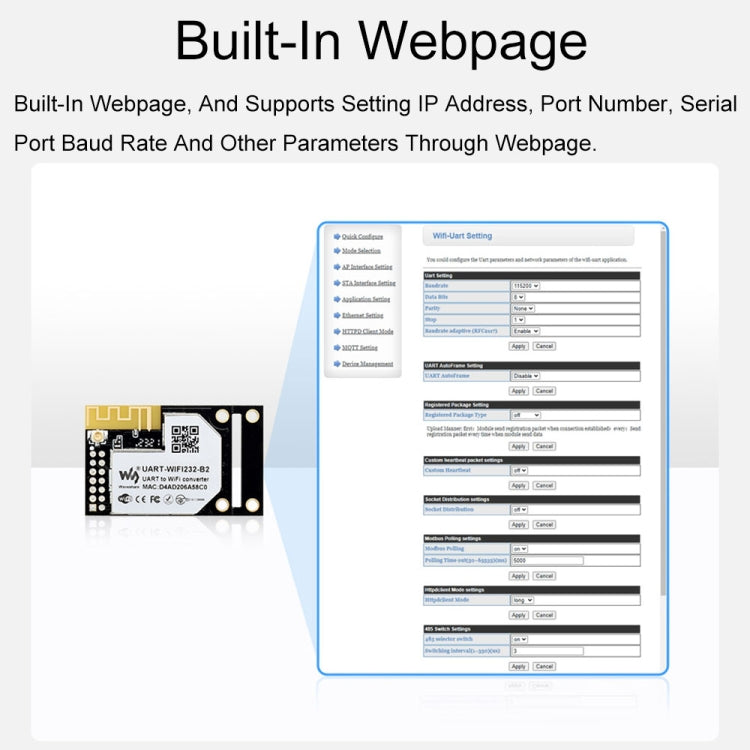

18. Configuration: host, browser, serial AT command
19. Communication method: TCP/IP direct communication, VCOM

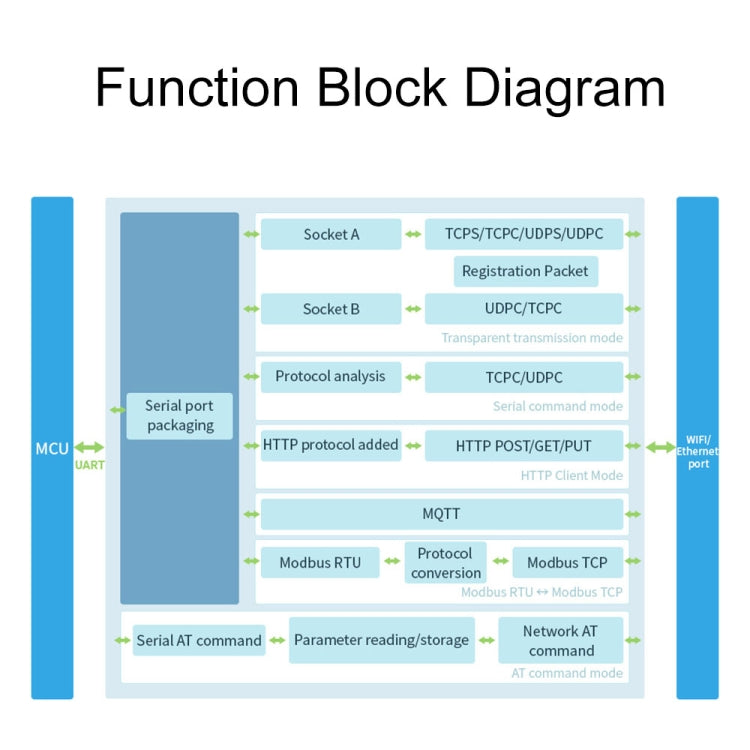

20. Working mode: transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
21. Operating temperature: -40 to 85 degrees Celsius
22. Humidity range: 5% to 95%
