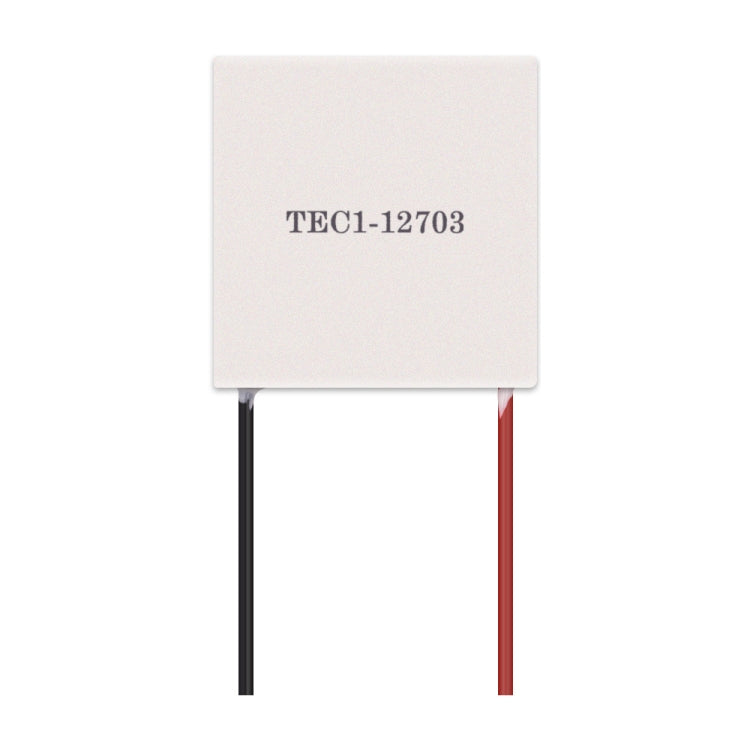

TEC1-12703 Thermoelectric Cooler Peltier Element Module
TEC1-12703 Thermoelectric Cooler Peltier Element Module
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Number of component pairs: 127
2. Assembly pressure: 85N/cm2
3. Be sure to apply thermal grease when installing the radiator
4. The literal is cold side, and the non-literal is hot side
5. Packaging process: standard 704 silicone rubber seal around
6. Packaging standard: foam box packaging, storage conditions ambient temperature -10 ~ 40 degrees Celsius
7. Working environment: temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the cooling efficiency)

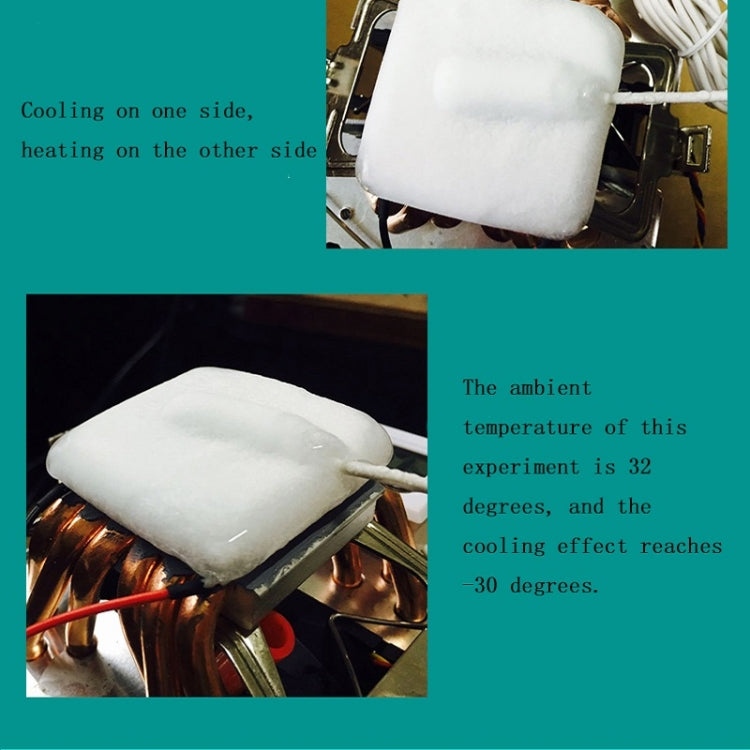

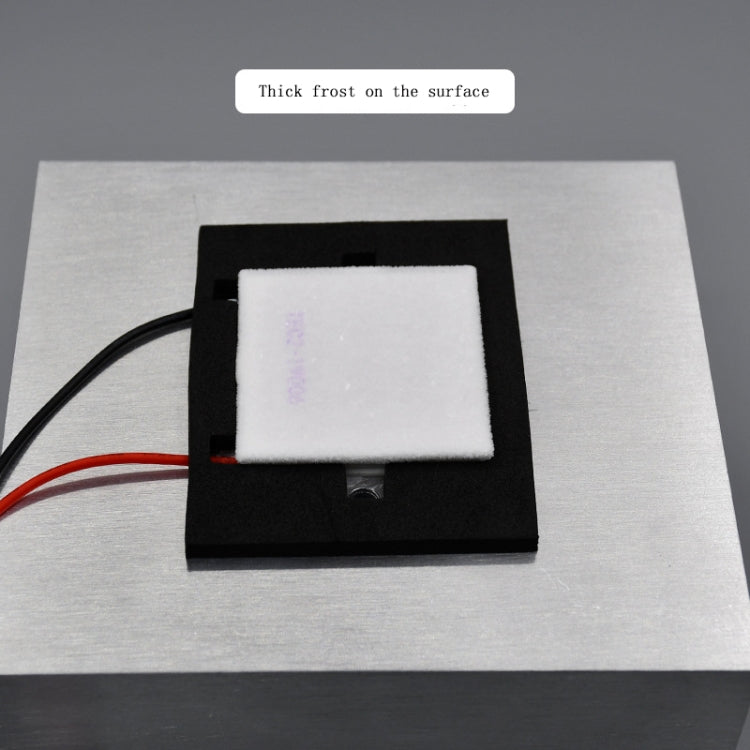

8. The working state of the cooling plate is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during work. It is strictly forbidden to energize for more than 2 seconds without heat dissipation, so as to avoid overheating and burning.

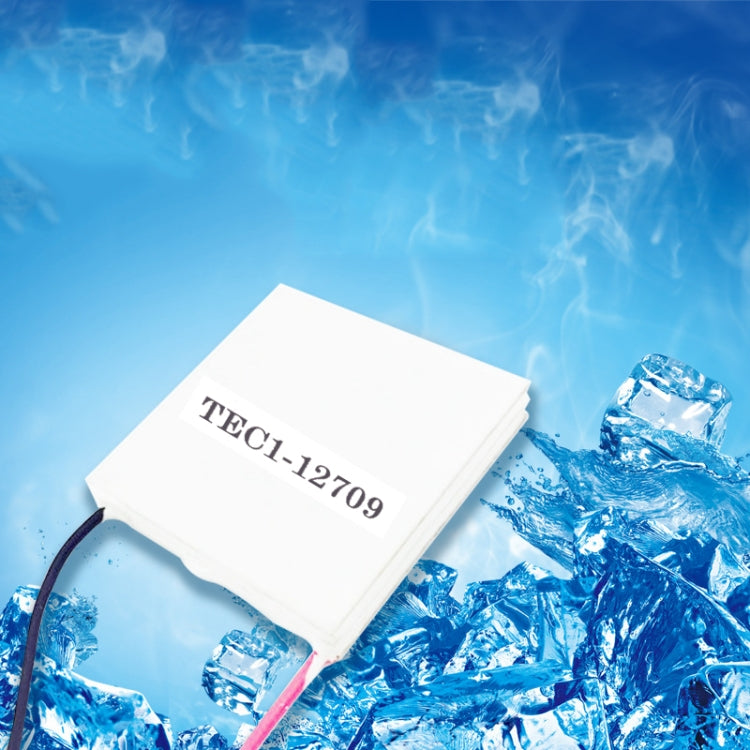

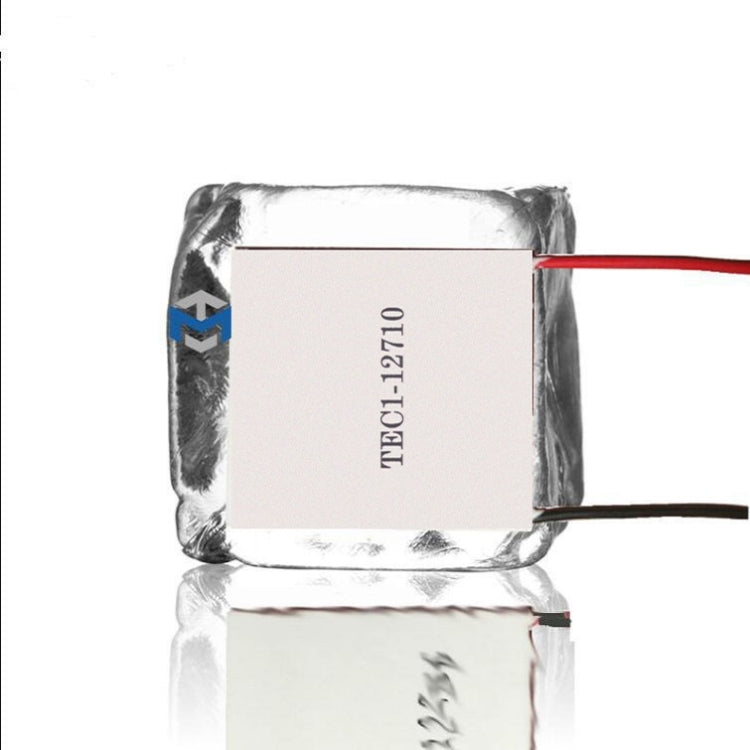

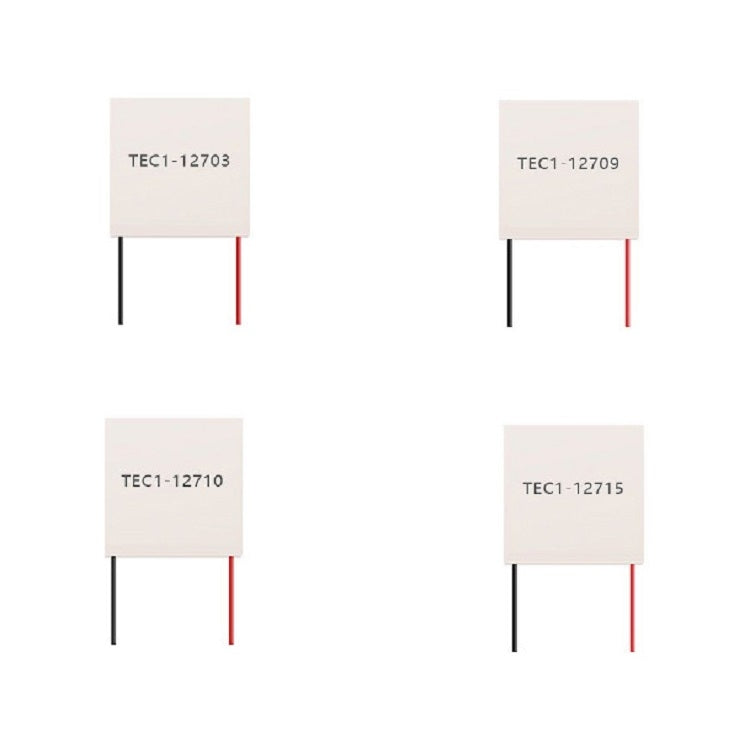

9. Dimensions: 12703: 40x40x4.0mm, 12709: 40x40x3.4mm, 12710: 40x40x3.4mm, 12715: 40x40x3 .3mm
10. Other parameters:
- 12703: Wire specification: lead length 310+/-5mm, RV standard wire, single head 5mm tin-plated, internal resistance: 4.0~4.3 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=12 ( When starting at rated voltage), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 27W
- 12709: Current: less than or equal to 9A, temperature difference: less than or equal to 68 degrees Celsius, voltage: less than or equal to 15.2V, hot end temperature: 82W
- 12710: Wire specification: lead length 300+/-5mm, RV standard wire, single head 5mm tin plated, internal resistance: 1.2~1.5 ohms (ambient temperature 23+/-1 degrees Celsius, 1kHZ Ac test), working current: Imax=10A ( 15Vmax voltage start), rated voltage: DC12V (Vmax: 15.5V), cooling power: Qcmax 92W
- 12715: Voltage: less than or equal to 15.4V, current: less than or equal to 15A, cold output: 134W
