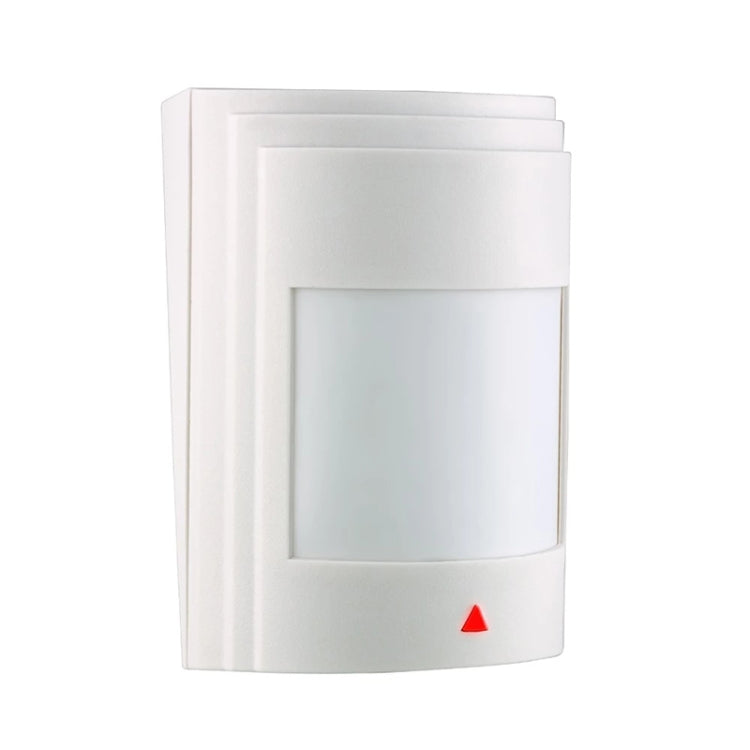

PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor Infrared Detector Alarm(White)
PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor Infrared Detector Alarm(White)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R103.67/mo 3 months
- R52.42/mo 6 months
- R27.67/mo 12 months
- From R103.67/month over 3 months, or as low as R27.67/month over 12. Total repayable over 12 months: R332.04. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor is an infrared detector designed for security applications. It effectively detects motion within a coverage area of 12 meters at a 110-degree angle, making it suitable for various security systems.
- Product Type: Infrared Detector
- Compatibility: Motion Sensor Systems
- Material: Fire resistant case
- Color: White
- Key Feature: Auto pulse signal processing with two adjustable levels
- Temperature Compensation: Automatic
- Lens: Second generation Fresnel lens
- Additional Lenses: Optional
- Design: High density SMD
- Connector: Additional connector for EOL resistor
- Sensor Type: Low noise, high sensitivity, dual element PIR sensor
- Pulse Count Sensitivity: Selectable between 1~3 pulses or 2~6 pulses
- Startup Time: 60 seconds after power up
- Detection Speed: 0.2~7m/sec
- White Light Immunity: Yes
- Coverage Area: 12m x 110 degrees
- Zones: 9+5+5+3=22
- Installation Height: Adjustable between 1.1m to 3.1m
- Alarm Indication: Green LED constant light for 3 seconds (can be disabled)
- Alarm Output: Normally Closed (N.C.), rating DC 28V, 0.15A
- Anti-Tamper Switch: Normally Closed (N.C.), opens when cover is removed, rating 0.15A, 28Vdc
- Power Input: DC 9~16V, 18mA
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 95%
- Dimensions: 90 x 65 x 50mm (3.5 x 2.6 x 2.0 in) (L x W x H)
