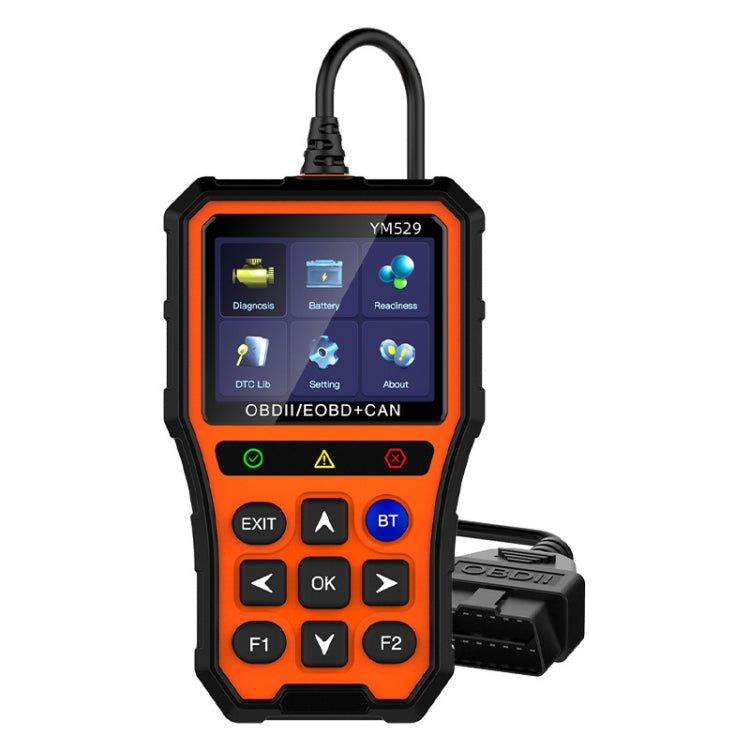

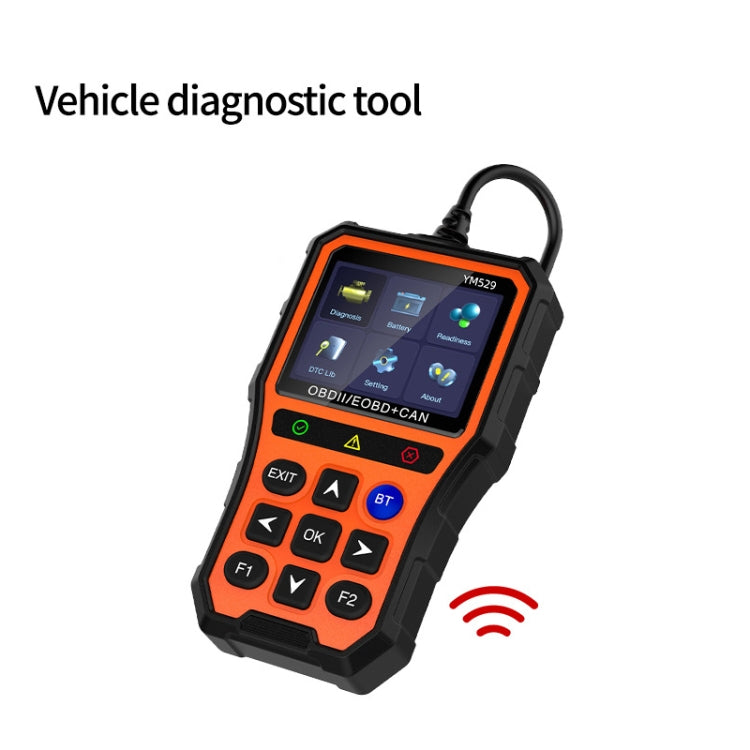

OBD Car Battery Fault Scanning Diagnostic Instrument

Name: OBD Car Battery Fault Scanning Diagnostic Instrument
Brand: PMC Jewellery
SKU: TBD06051943
Price: 1079.00 ZAR
Availability: InStock

R 1,079.00

Sale Sold out

FREE DELIVERY on all orders.

⚫🖤🟡Add to Cart Now for Black Friday Discounts! Hurry, stock is almost gone! 🟡🖤⚫

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Working voltage: 5-24V
2. Working current: 50mA
3. Diagnostic method: (OBD line/Bluetooth)

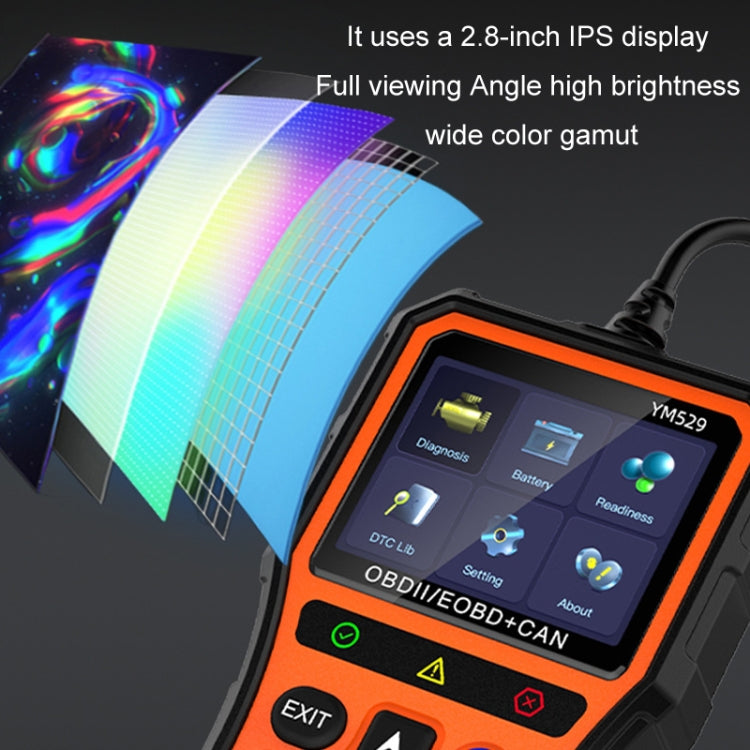

4. Screen size: 2.8 color screen iPS (high brightness full viewing angle)
5. UI interaction (picture overlay + changeable theme + GPU Turbo for faster response and faster display)
6. Support nine standard protocols of OBDII/EO to read car engine fault codes
7. The product has 13 built-in languages ??(Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)
8. Dashboard: vehicle speed, engine speed, driving fuel consumption, cooling temperature, battery voltage, fuel consumption meter, custom dashboard

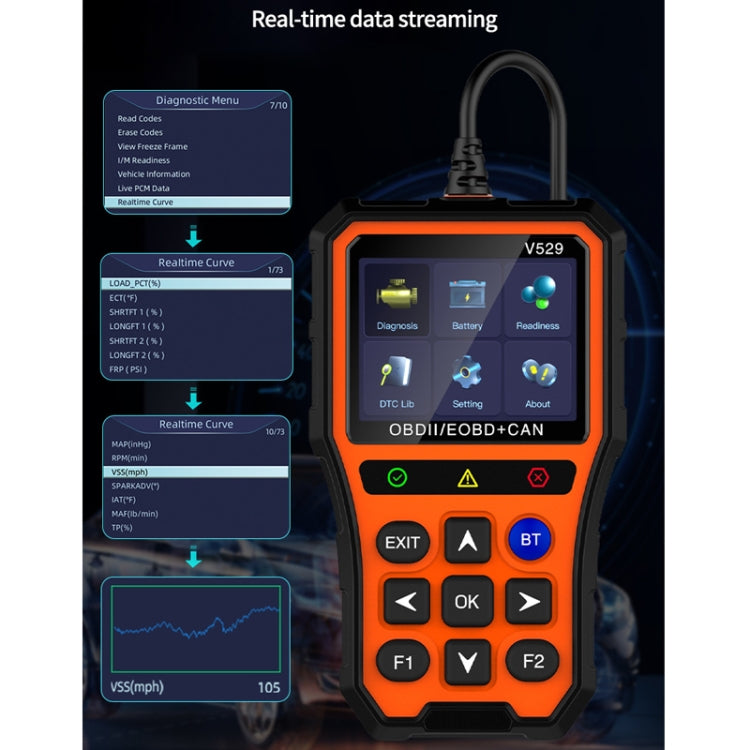

9. Real-time data stream (freeze frame fault code, engine speed, oxygen sensor, etc., including 88 data streams), storage and playback of real-time data stream

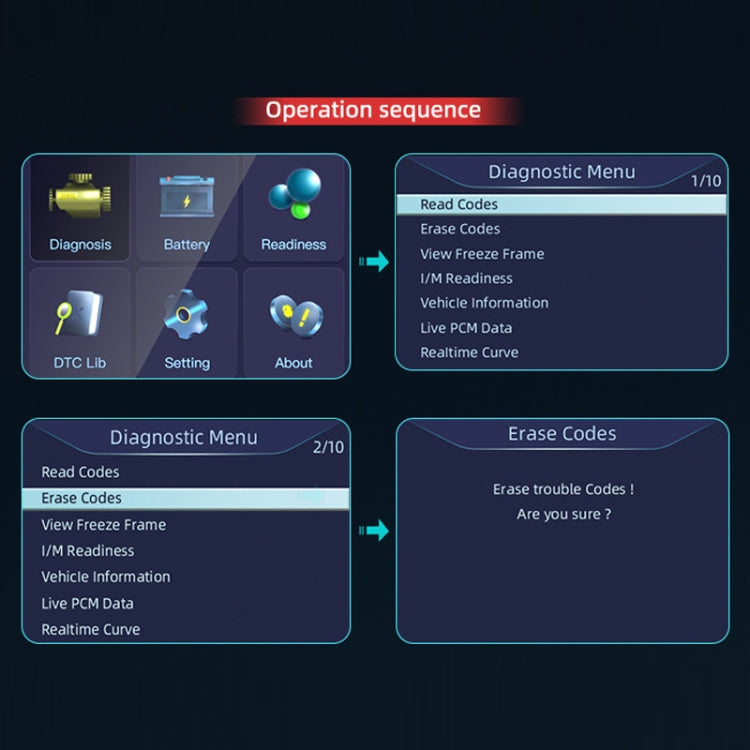

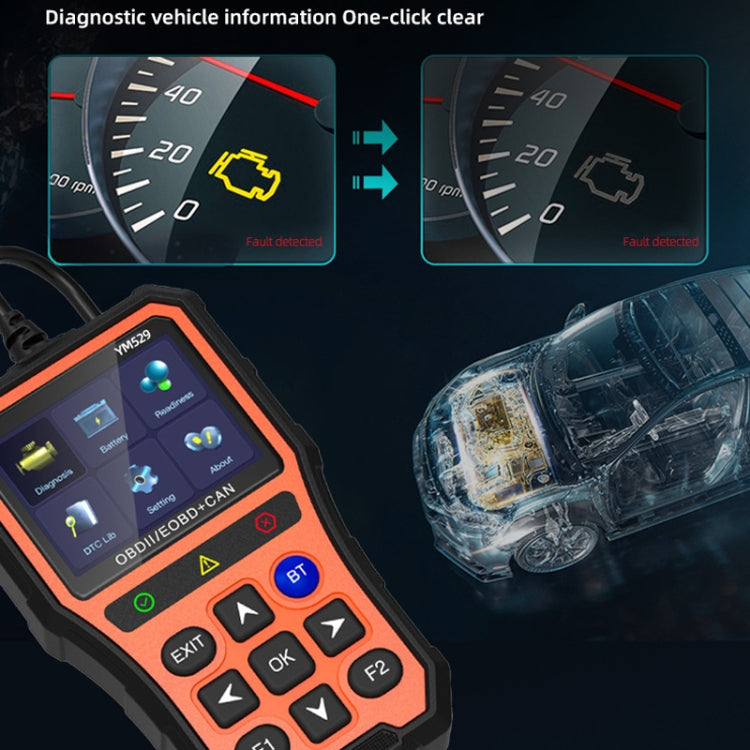

10. Fault code detection: support vehicle DTC fault code reading and clearing, fault code query
11. Vehicle information: basic vehicle information VIN (also called vehicle identification number or frame number), CALID, CVN and other parameters are read, which are widely used in various auto repair and auto parts fields
12. Trip analysis (total mileage, time, average speed, start time, total fuel consumption, average fuel consumption)
13. Provide real-time monitoring of the battery, start test and charging test
14. Supported models: Support most models in Europe after 2003 and in the United States after 1996
15. Product size: 145x85x28mm
16. Product net weight: 228g

Supported protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 25 1 Kbaud)
