DUOYI Automobile Dual-hole Spark Plug Diagnostic Tester(EU Plug)
DUOYI Automobile Dual-hole Spark Plug Diagnostic Tester(EU Plug)
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. Power adapter: Input 100-240V AC / Output 12V 1A DC
2. Purpose: test spark plug performance and ignition strength
3. Application range: 12V gasoline engine automotive spark plugs

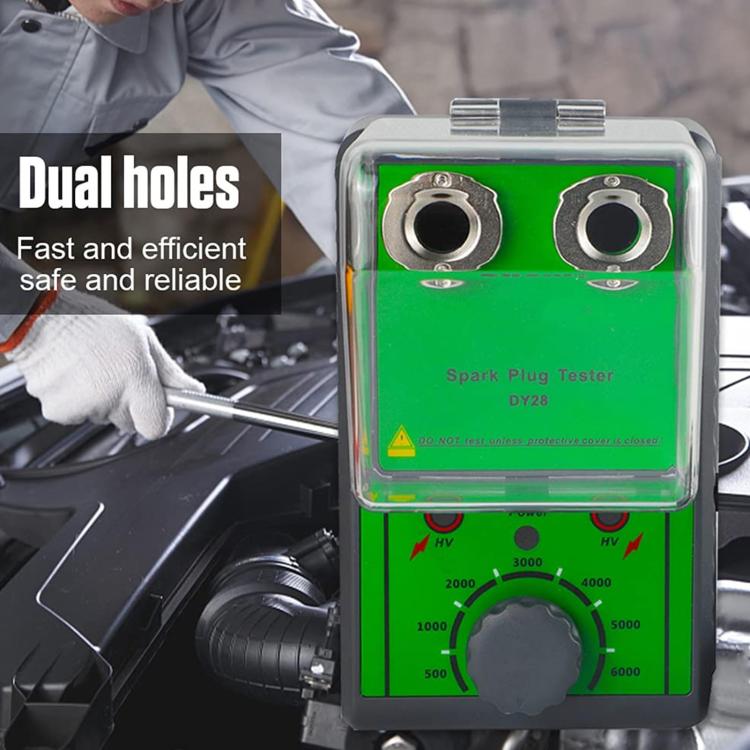

4. The dual-hole automotive spark plug tester has two test holes, which can test two spark plugs at the same time. If you suspect that any spark plug is not working properly, you can do a comparative test to make an accurate judgment
5. Test principle: In the automotive ignition system, the high-voltage ignition coil generates a high voltage (more than 10,000 volts), and the spark plug leads it to form a high-voltage ignition coil into the cylinder engine. The spark between the spark plug electrodes ignites the mixture. The detector can distinguish good spark plugs from bad spark plugs according to the intensity of the spark

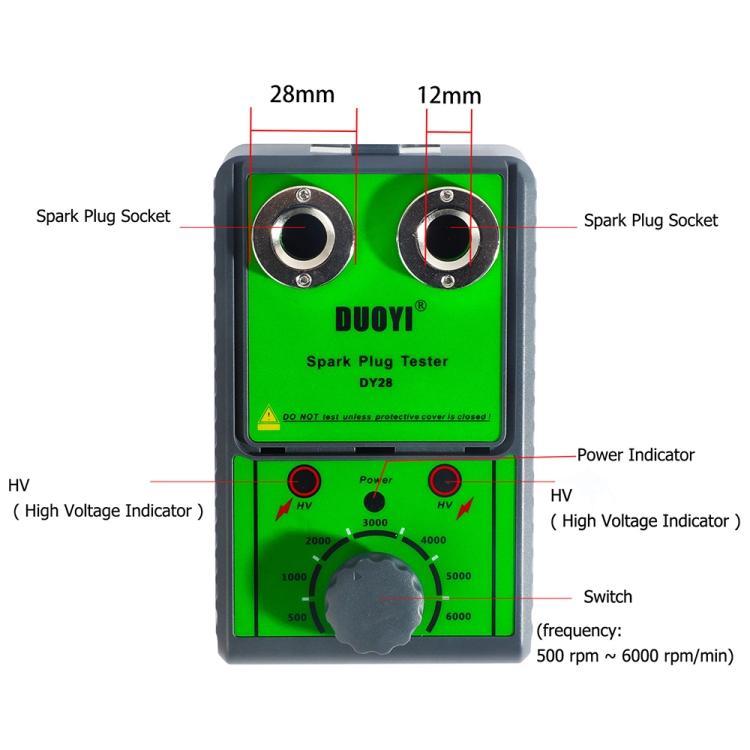

6. Turn the key switch clockwise to turn on the tester, and the indicator light is green
7. Close the protective cover, insert the adapter into the side socket, and connect the tester to the power supply to turn it on
8. Turn the switch clockwise to adjust the operating frequency between 1000rpm and 6000rpm/min. The higher the frequency setting, the stronger the spark.

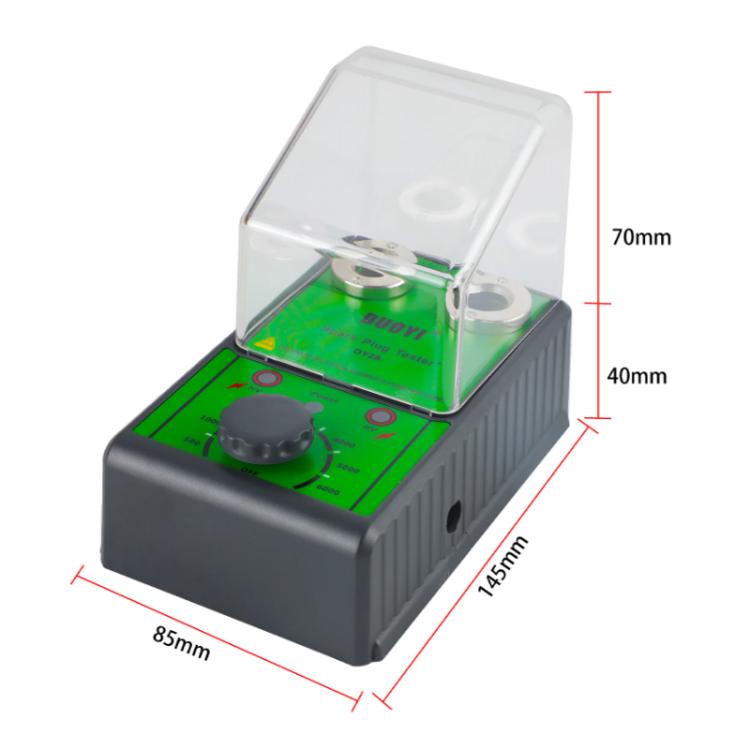

9. Dimensions: 145x85x60mm
10. Weight: 354g
Instructions for use of the automotive spark plug tester:
1. Turn off the power before placing the spark plug
2. The spark plug tester is a high-voltage detector. Do not touch the spark plug with your hands during operation to avoid danger

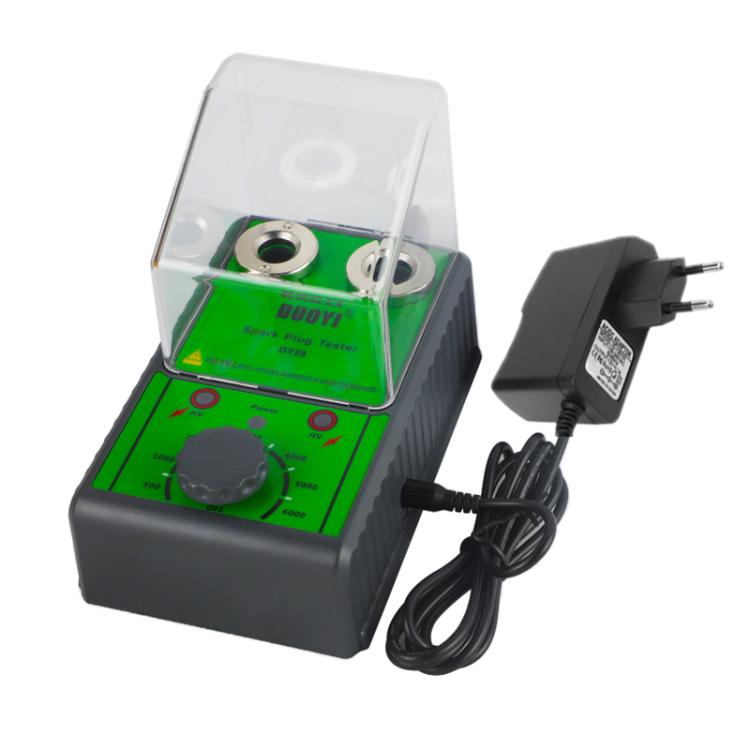

Packing list:
- Spark plug tester x 1
- Power adapter x 1
- User manual (English) x 1
