Description

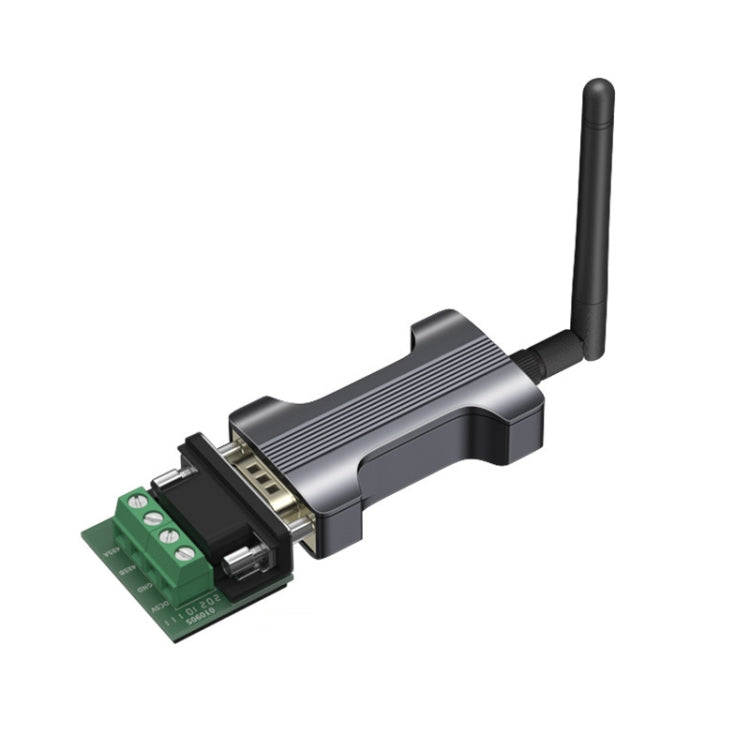

The DTECH IOT5060A RS485 To LORA Serial Port Wireless Transmission Module is a wireless communication device designed for point-to-point and multipoint data transmission. It is suitable for applications requiring long-distance communication, such as remote sensor monitoring and data collection.
- Communication modes: point-to-point, point-to-multipoint, multipoint-to-multipoint
- Working voltage: DC 5V (powered by micro USB)
- Working current: 50mA at 5V
- Performance design: anti-electromagnetic interference
- Frequency range: 410MHz-441MHz
- Wireless channels: 115
- Receiving sensitivity: -140dBm
- Transmitting power: 20dBm

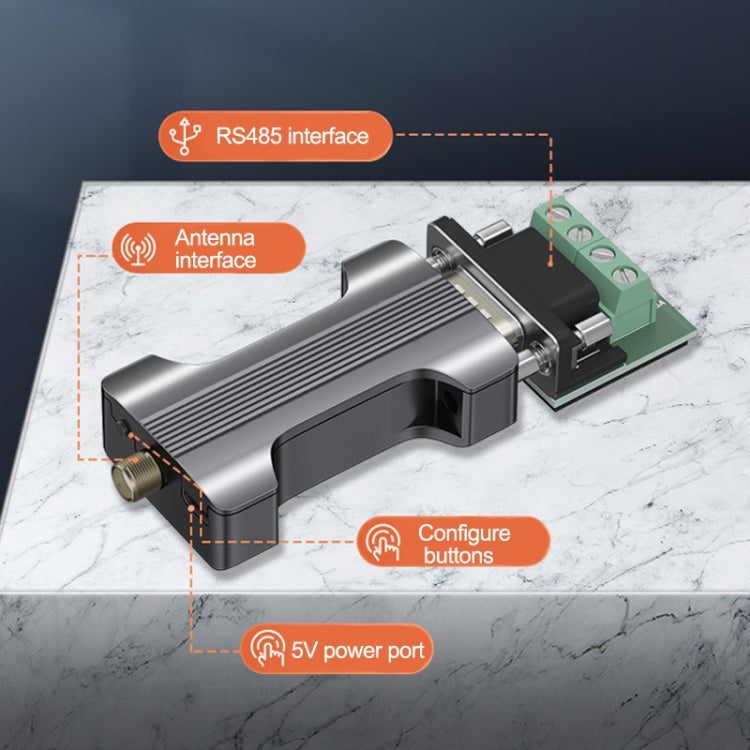

- Antenna connection: external SMA male antenna
- Operating frequency: 433MHz
- Baud rate: 1200-115200bps (default 9600bps)
- Supported data bits: 7, 8, 9
- Stop bits: 1, 1.5, 2
- Check digit: Even, None, Odd
- Interface: RS485
- Indicator lights: data sending (yellow), data receiving (green)
- Supported operating systems: Windows XP, Windows 7, Windows 8, Windows 10, Linux, Mac OS
- Configuration tool: DtechWifiConfig (configuration mode activated by pressing configuration button for 5 seconds)

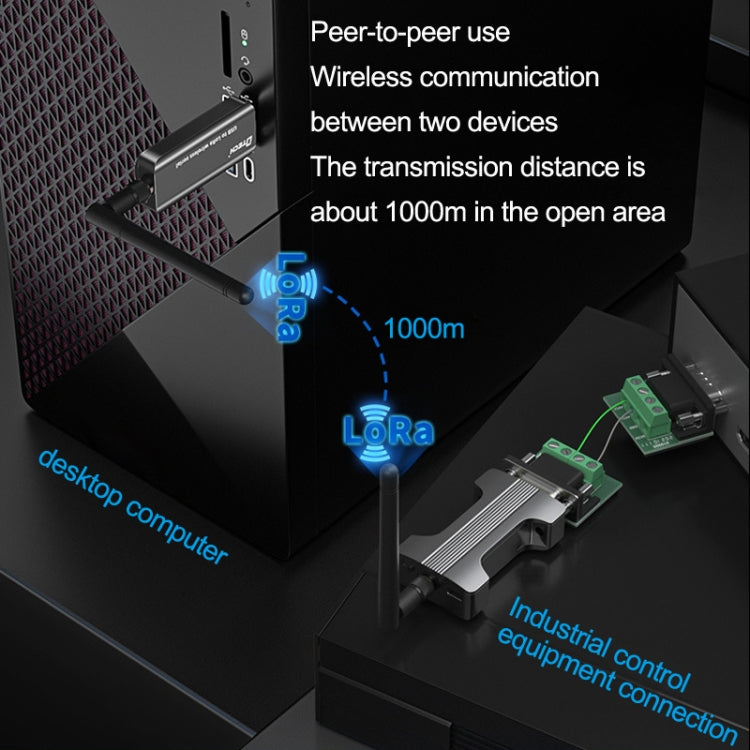

- Transmission distance: approximately 0-1000 meters

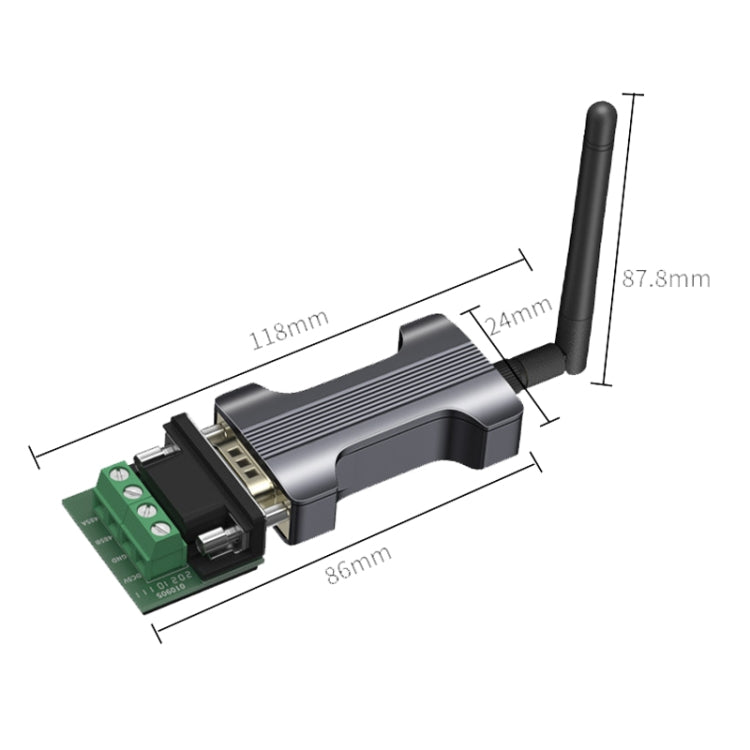

- Dimensions: 11.8 x 2.4 x 8.78 cm
- Weight: approximately 55g

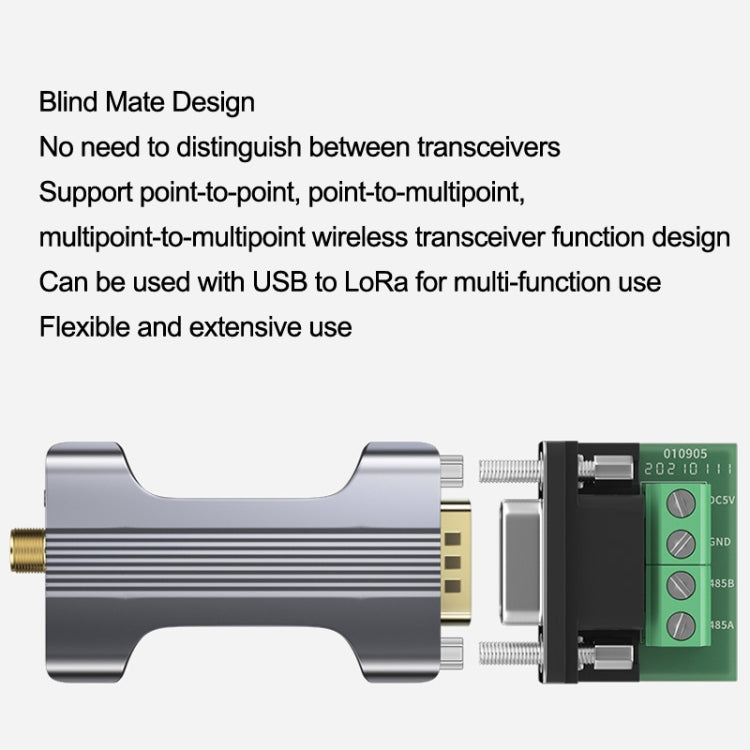

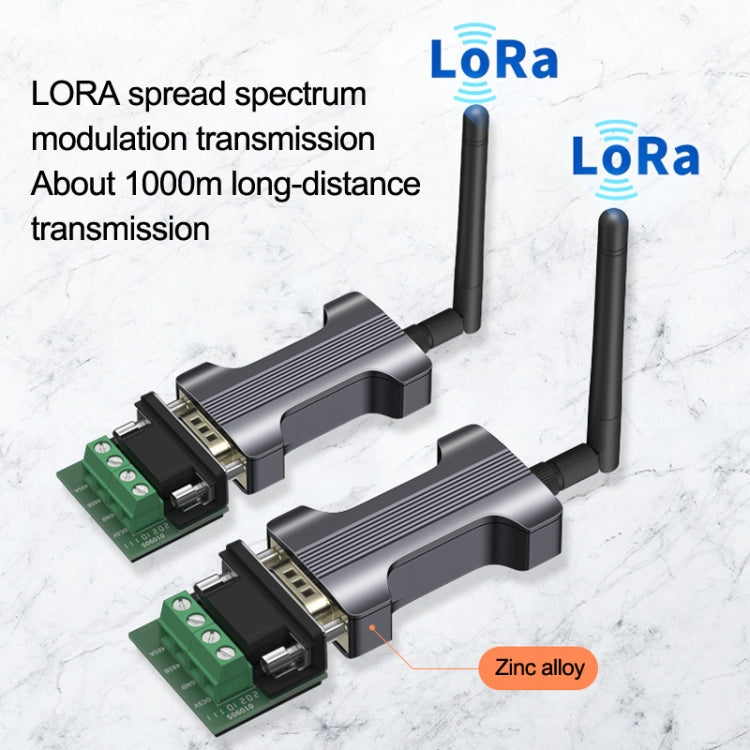

- Features: blind insertion design, USB to LoRa compatibility, LORA spread spectrum modulation
