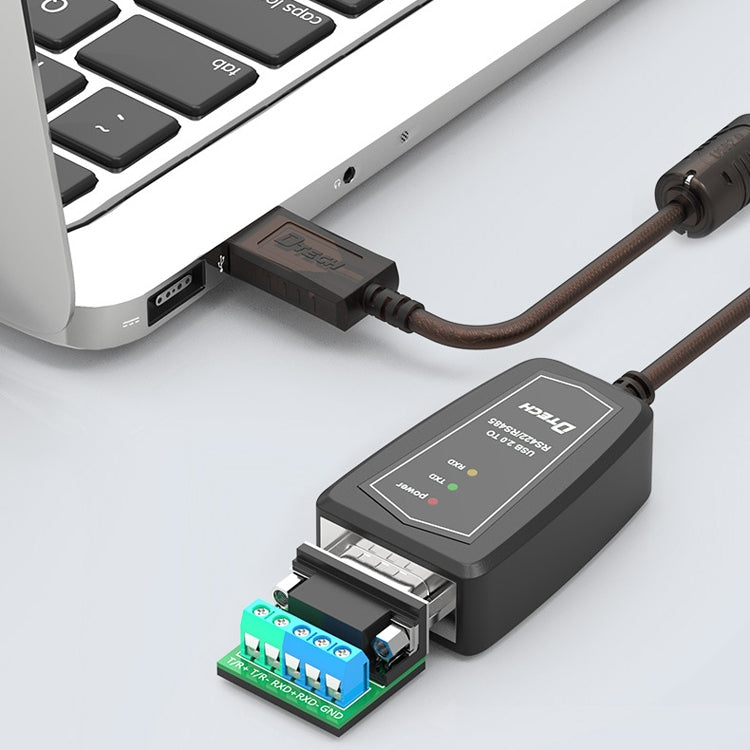

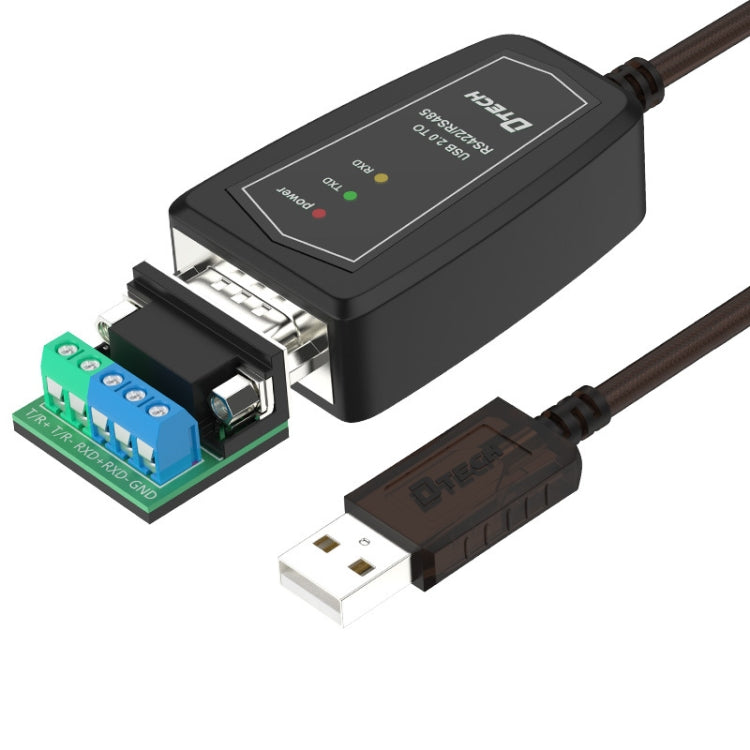

DTECH DT-5019 USB to RS485 / RS422 Conversion Cable, FT232 Chip, Length: 0.5m

Name: DTECH DT-5019 USB to RS485 / RS422 Conversion Cable, FT232 Chip, Length: 0.5m
Brand: DTECH
SKU: TBD0601719201
Price: 649.00 ZAR
Availability: InStock

R 649.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Interface compatibility: RS422/RS485 standard
2. Working mode: asynchronous differential transmission (half full duplex)
3. Transmission rate: 300-3000000bps
4. Environmental protection level: 600W lightning surge protection for each line of RS485 interface
5. Transmission medium: twisted pair (wire diameter above 0.5mm) or shielded wire

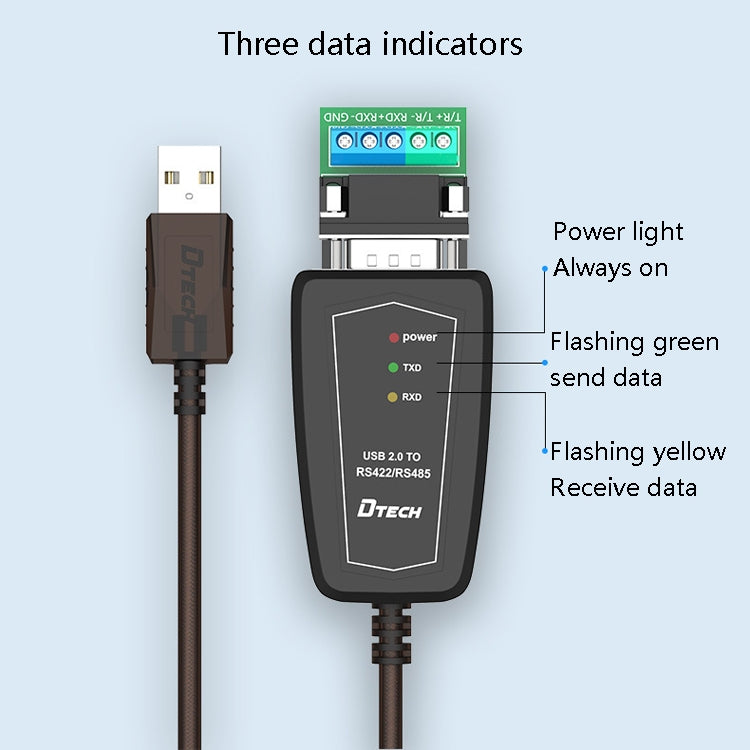

6. Signal indication: red light power, green light sending signal, yellow light receiving signal
7. Support system: WindowsXP, WIN7, WIN8, WIN10, also use Windows series, MacOS, Linux and other systems
8. Transmission distance: 1200 meters at the RS422/485 end, and the USB cable is no more than 5 meters
9. Length: about 0.5/1.5m

Features:
1. It has a wide range of applications and meets different needs. It is suitable for the connection of various RS485/RS422 devices on the computer, two-way mutual data transmission, both USB to RS485/RS422 and RS485/RS422 to USB

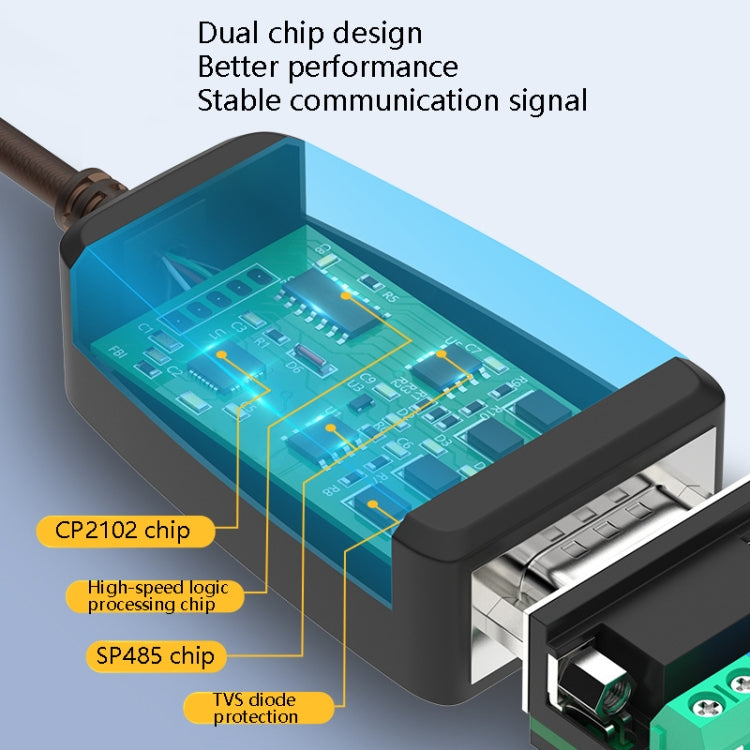

2. Dual chip design, better performance, stable communication signal, built-in CP2102+SP485 chip, plus TVS diode protection, support RS485/422 protocol equipment long-distance transmission, durable
3. It can connect 256 RS485/RS422 devices, point-to-multipoint, each converter can connect 256 RS422 or RS485 interface devices, and the data communication baud rate range is 300-3000000bps
4. The converter has zero-delay automatic transmission and reception conversion to ensure high-speed data transmission and no delay in data transmission, ensuring faster signal operation, and providing a reliable connection for communication
5. Three kinds of data indicator display, easy to see the working status

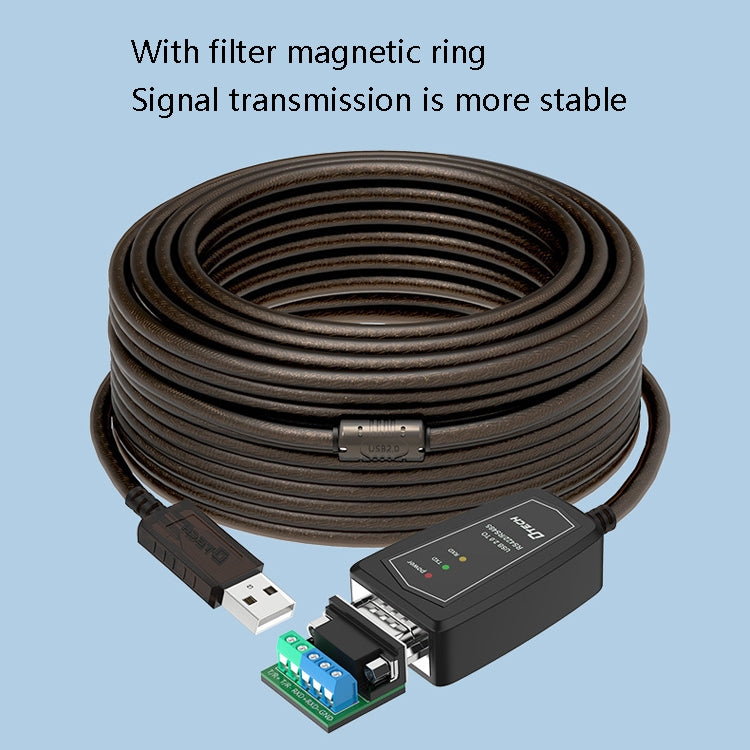

6. With filter magnetic ring, signal transmission is more stable

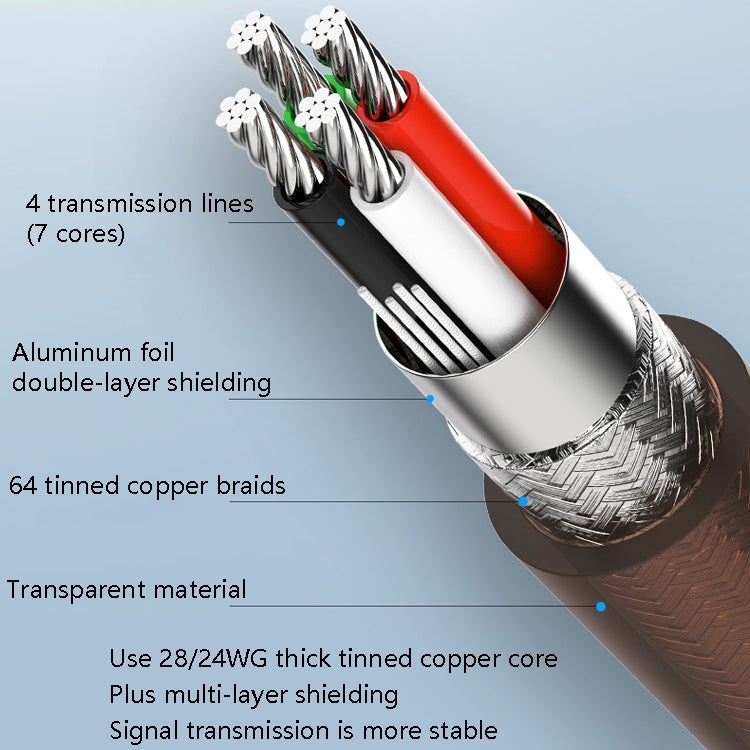

7. Select 28/24WG thick tinned copper core, plus multi-layer shielding, signal transmission is more stable
8. Support multiple technologies, compatible with USB2.0, RS485, RS422 standard protocols, automatically judge and control the data transmission direction, and automatically detect the serial port signal baud rate
