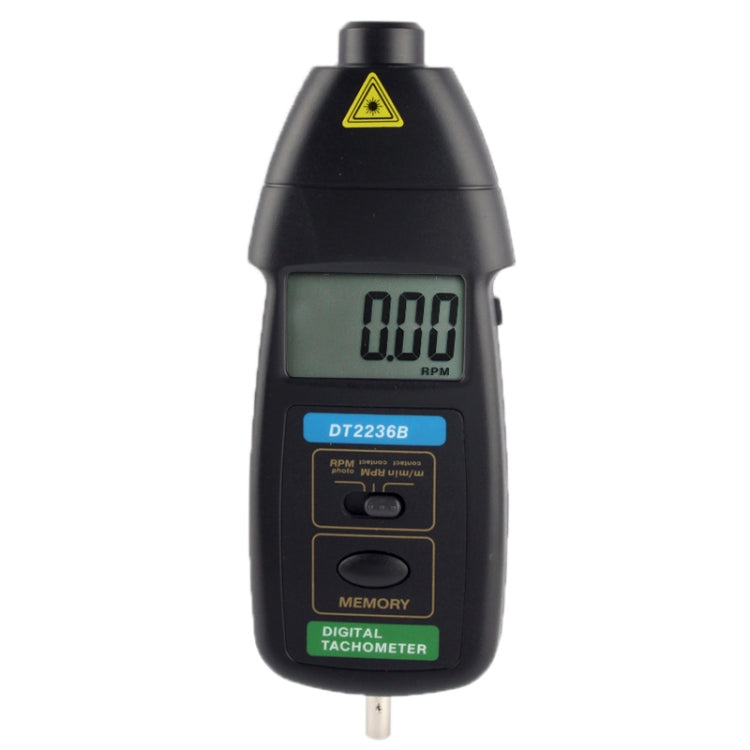

Contact & Non Contact Laser Digital Tachometer (DT2236B)

The Contact & Non Contact Laser Digital Tachometer (DT2236B) measures rotational speed in both contact and non-contact modes. It is suitable for applications such as monitoring motor speeds in various machinery.

• Product Type: Tachometer
• Compatibility: DT2236B
• Material: Not specified
• Display: LCD, 5 digits, 18mm height
• Laser Photo Tachometer Range: 2.5 to 99,999 RPM

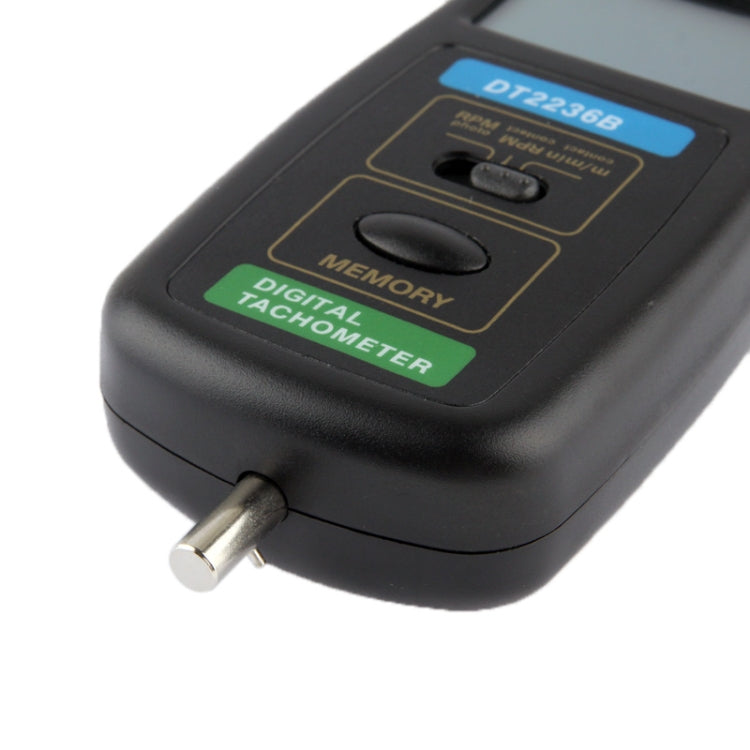

• Contact Tachometer Range: 0.5 to 19,999 RPM
• Surface Speed Measurement: 0.05 to 1,999.9 m/min
• Laser Photo Tachometer Resolution: 0.1 RPM (2.5 to 9999.9 RPM); 1 RPM (over 1000 RPM)
• Contact Tachometer Resolution: 0.1 RPM (0.5 to 9999.9 RPM); 1 RPM (over 1000 RPM)
• Surface Speed Resolution: 0.01 m/min (0.05 to 99.99 m/min); 0.1 m/min (over 100 m/min)
• Sampling Time: 0.8 seconds (over 60 RPM)
• Test Range Selection: Automatic
• Memory Functions: Maximum value, minimum value, and last value

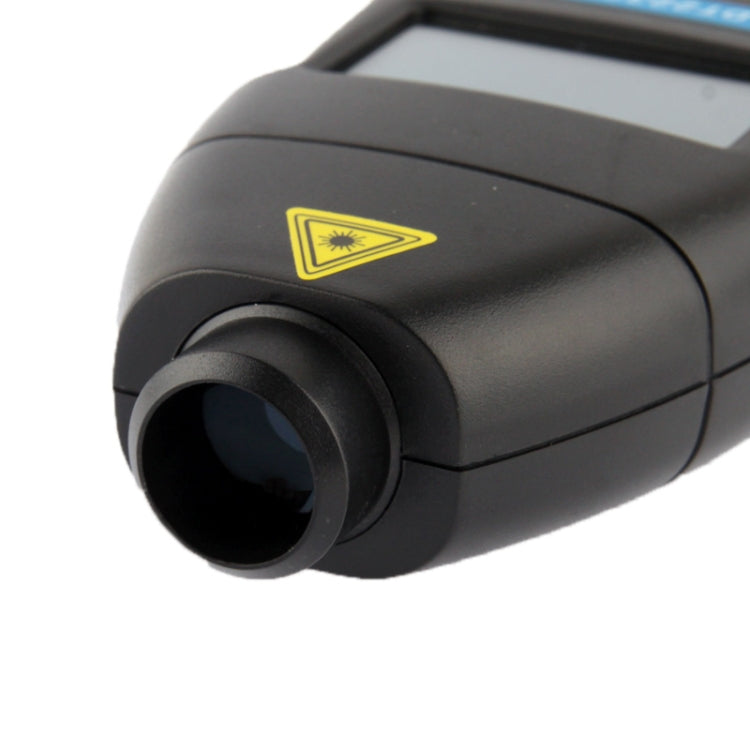

• Detecting Distance: 50 to 500 mm (2 to 20 inches) for laser photo tachometer
• Time Base: 6 MHz crystal oscillator

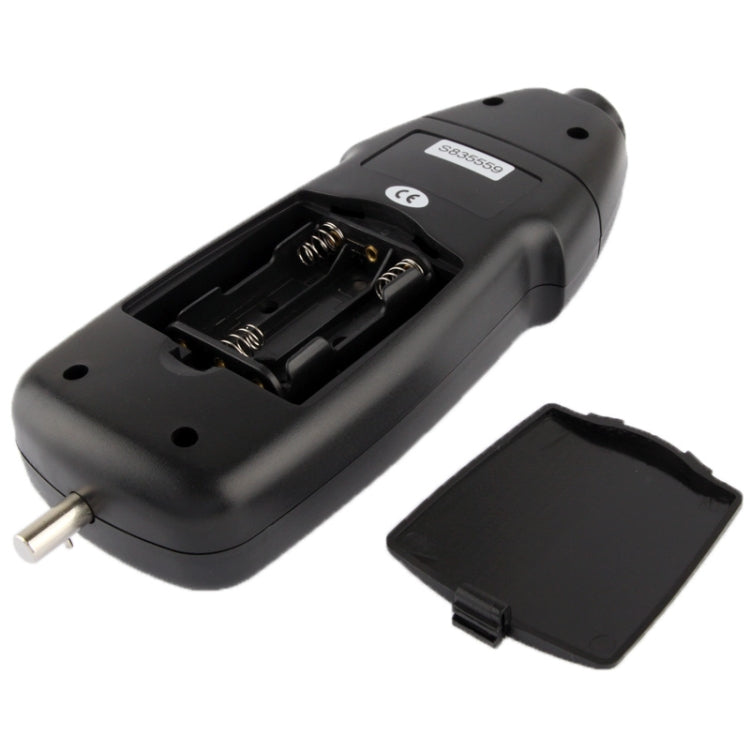

• Power Source: 3 x AAA batteries (not included)
• Measuring Range: Wide measuring range and high resolution
• Accuracy: Measures exact RPM with no guessing or errors
• Memory: Memorizes last value, maximum value, and minimum value
• Battery Indicator: Low battery power indication
• Dimensions: 18.4 cm x 7.6 cm x 3 cm
