Description

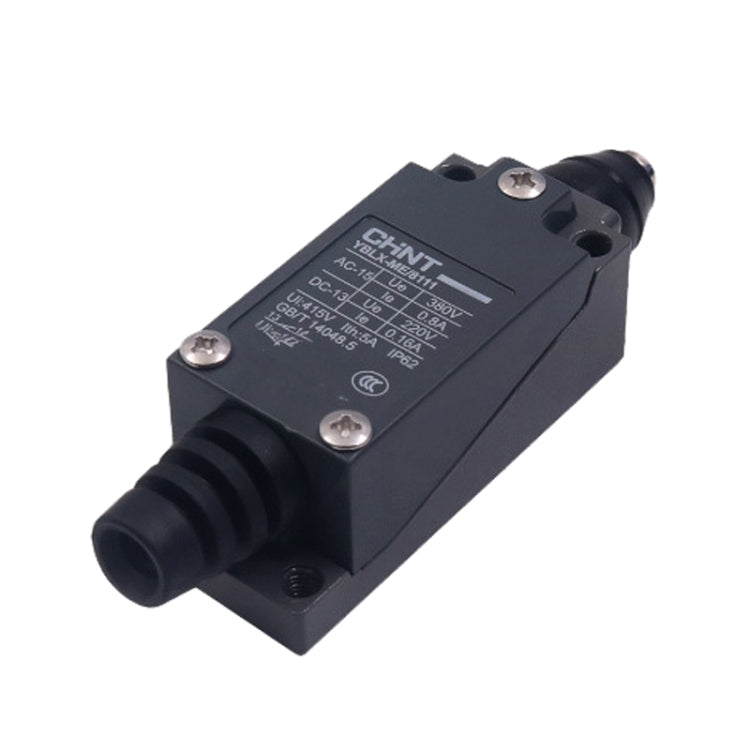

CHNT YBLX-ME8111 Limiter Travel Switch is a micro self-resetting stroke switch designed for control circuits. It is suitable for applications requiring precise travel control of movement mechanisms, such as machine tools.
- Protection class: IP62
- Operating frequency: 20 times/minute
- Rated insulation voltage: 415V
- Rated shock withstand voltage: 2.5kV
- Rated voltage: AC380V/DC220V
- Rated operating current: AC0.8A/DC0.16A
- Environmental temperature range: -5 to 40 degrees Celsius
- Action form: self-resetting

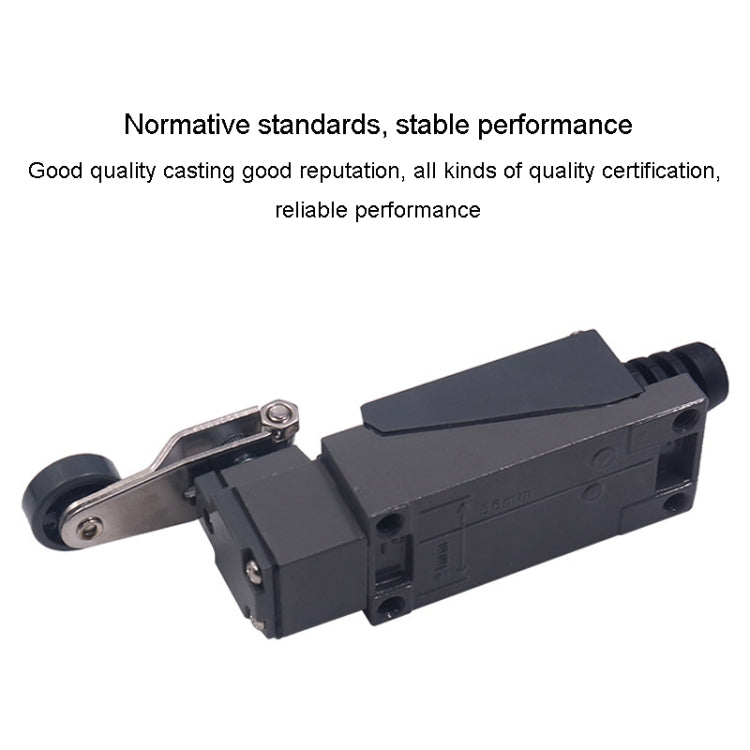

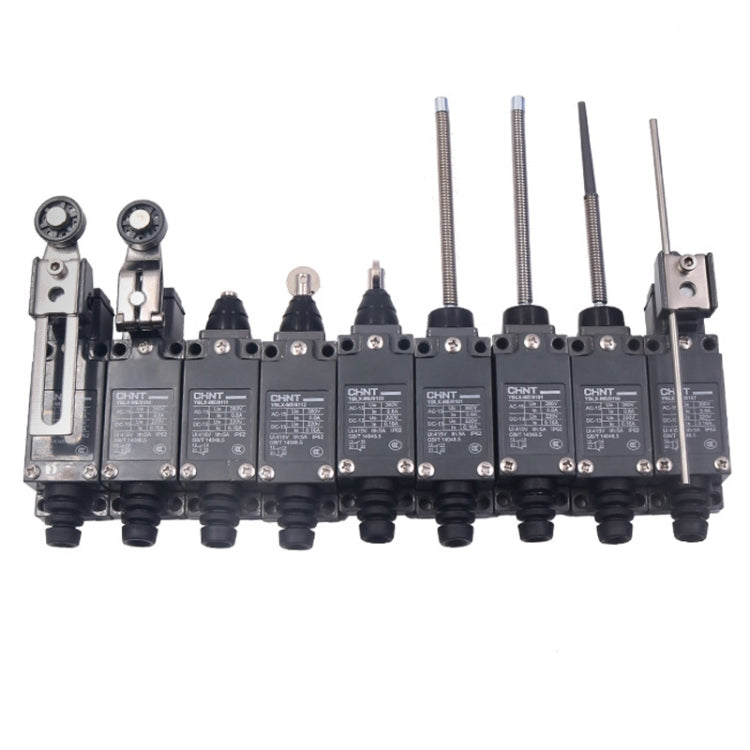

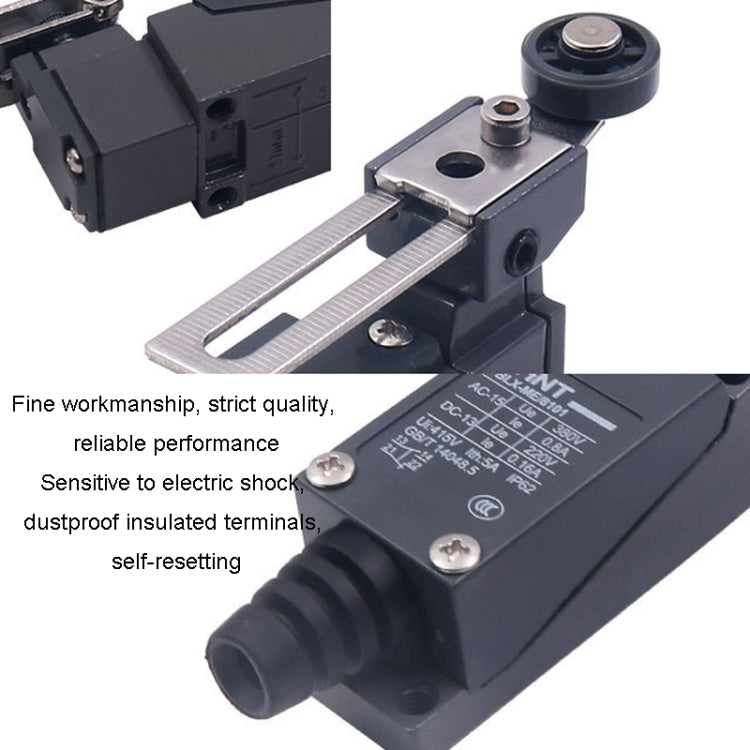

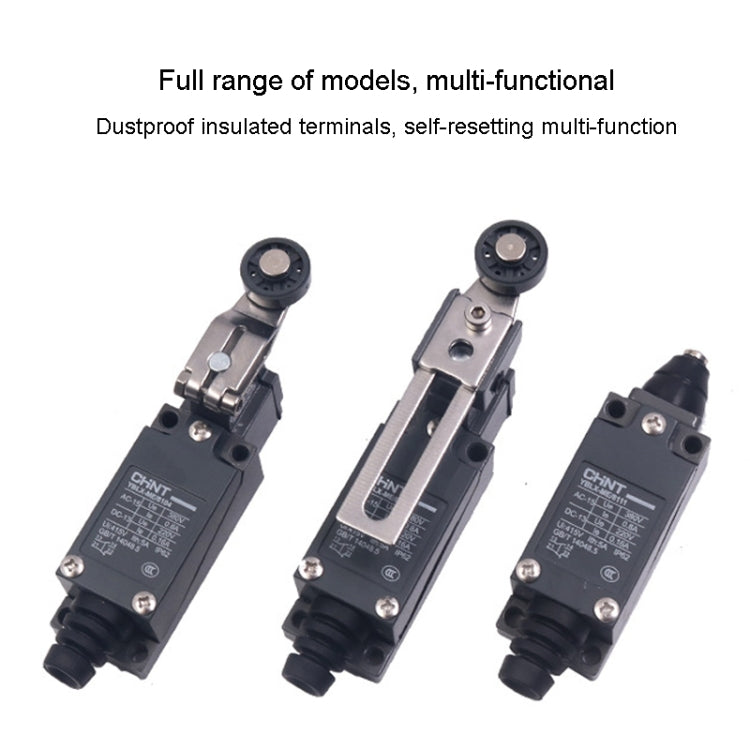

- Operation modes: TBLX-ME/8101 (universal type III), TBLX-ME/8104 (roller rotating arm), TBLX-ME/8107 (adjustable rotating lever), TBLX-ME/8108 (adjustable roller rotating arm), TBLX-ME/8111 (straight pressure plunger type), TBLX-ME/8112 (straight pressure plunger cross-mounted roller), TBLX-ME/8122 (direct pressure plunger vertical mounted roller), TBLX-ME/8166 (universal type I), TBLX-ME/9101 (universal type II)
- Suitable for AC 50Hz or 60Hz control circuits
- Applications: travel control of movement mechanisms, change of movement direction or speed, automatic control of machine tools, limiting action of movement mechanisms, control of travel or program
