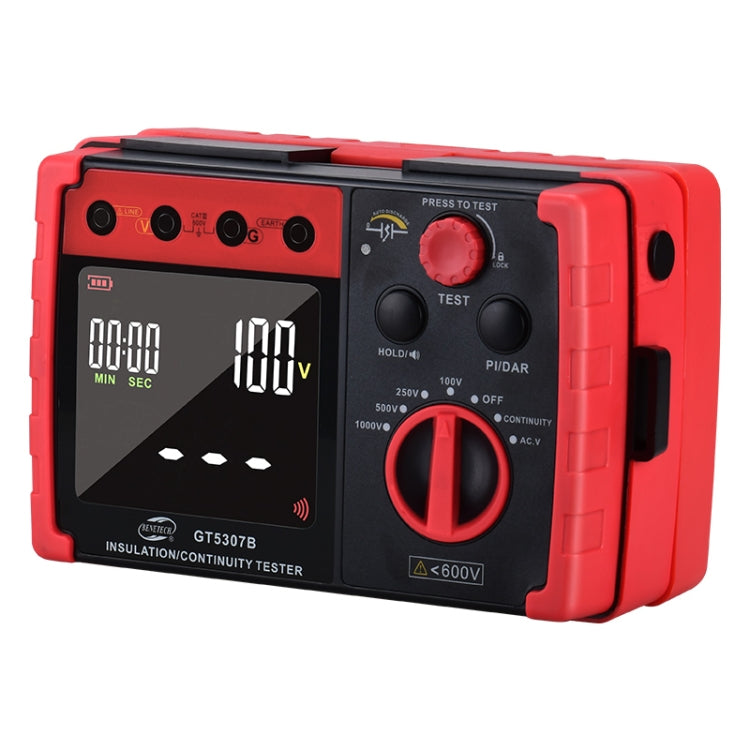

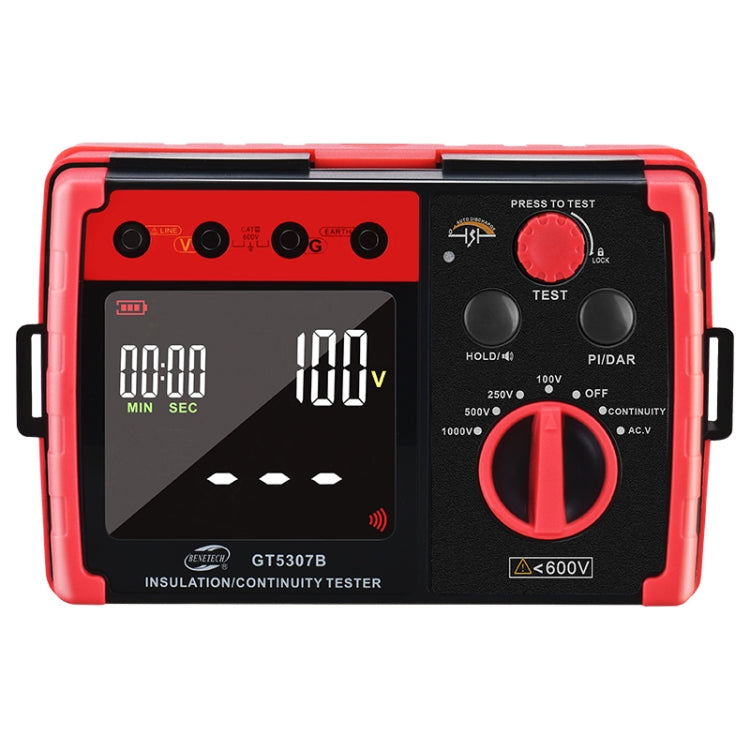

BENETECH GT5307B Professional LCD Digital Insulation Resistance Tester

Name: BENETECH GT5307B Professional LCD Digital Insulation Resistance Tester
Brand: BENETECH
SKU: PC6438
Price: 1659.00 ZAR
Availability: InStock

R 1,659.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
1. It is suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as transformer, motors, cables, switches, electrical appliances, etc.

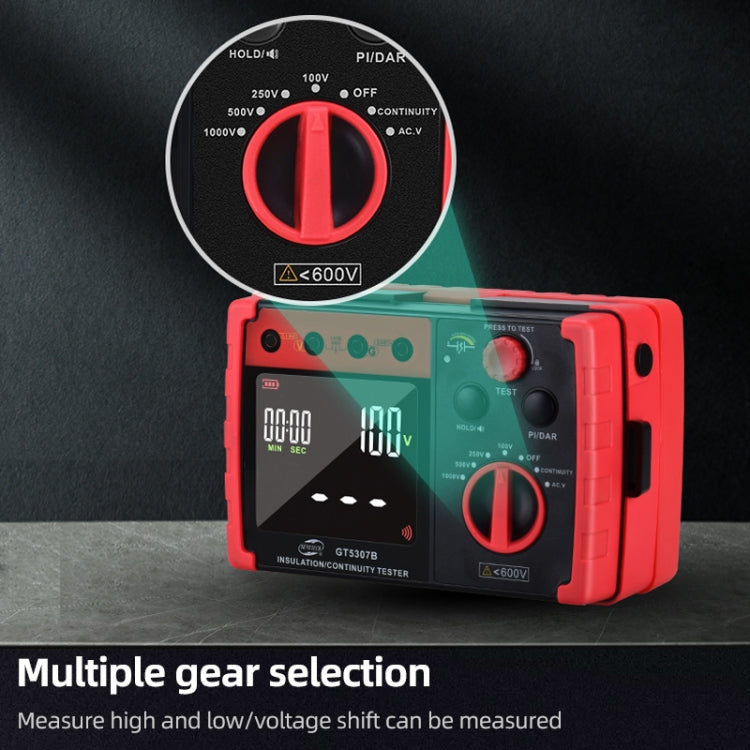

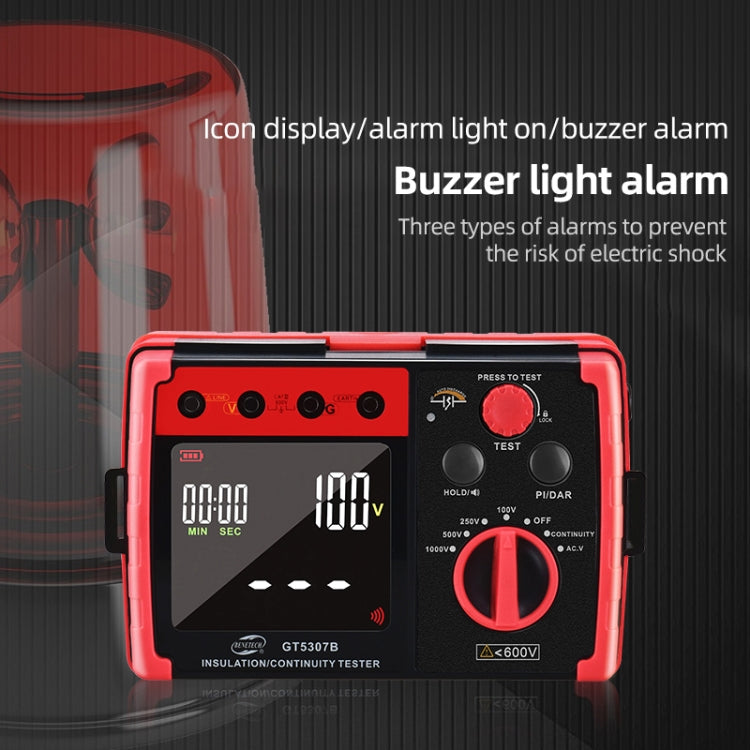

2. Icon display/alarm light on/buzzer alarm three types of alarms to prevent the danger of electric shock. Multiple gears can be selected to measure high and low, and the voltage can be measured after shifting.
3. This instrument is a high performance digital instrument, with large LCD display, display screen make it easy to read measurements.
4. Insulation resistance meter is beautiful, wide range, high accuracy, high resolution, convenient operation, easy to carry.

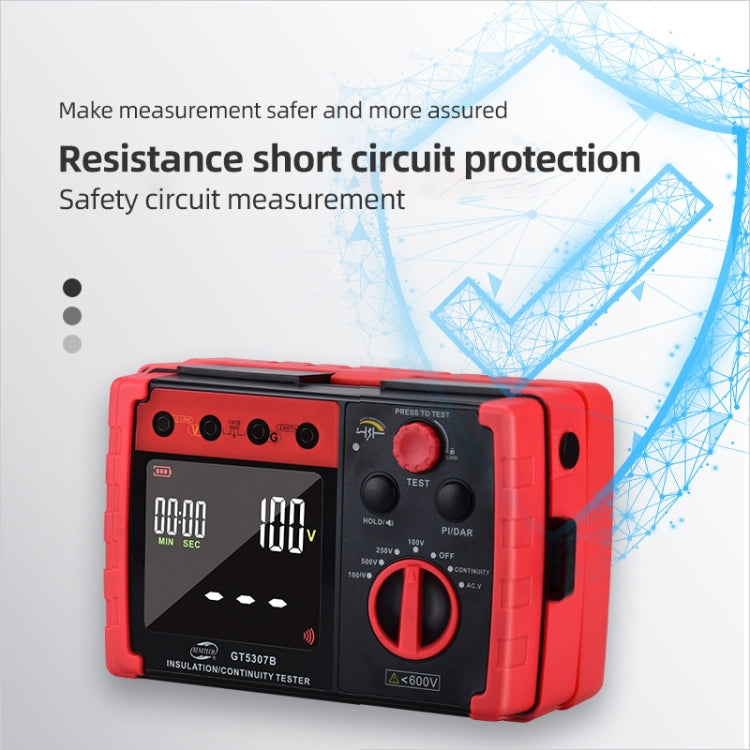

5. Resistance short circuit protection makes the measurement safer and more assured. Carry out maintenance, testing and verification of various electrical equipment.

Functions
1. Measurement of insulation resistance
2. AC measurement
3. DC measurement
4. Small resistance measurement
5. Live detection of tested resistance
6. Short circuit protection of measured resistance
7. AC and DC automatic identification
8. Measurement data is locked.
9. Polarization Index
10. Absorption ratio test

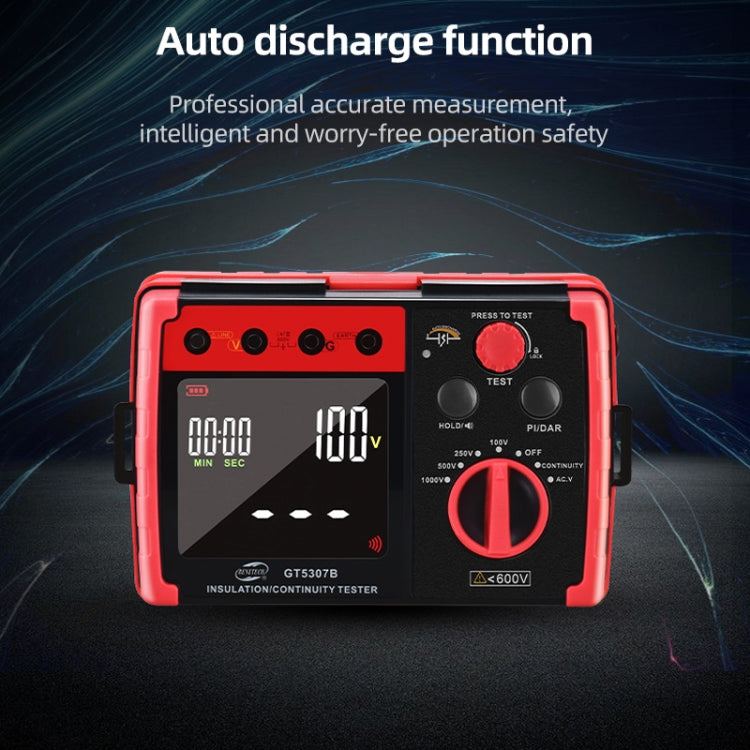

11. Automatic discharge
12. Low battery reminder
13. Large LCD screen digital display
14. External DC power supply DC9V 1.5A
15.10M internal resistance measurement
16. Over limit alarm
17. Auto range
18. Red alarm light, buzzer alarm.
19. High voltage alarm
20. Test voltage display

Specification
1. Technical parameters display: Large-screen LCD (up to 500 counts).
2. Over limit indication: Hi: The mark appears on insulation resistance range.
3. Auto range: Higher range: 500 counts, Lower range: 1 count (only on insulation resistance range)
4. Sampling Rate: 2 times / second
5. Allowed altitude: Less than or equal 2000m (for indoor use)
6. Operation environment: Temperature: 0-40 degree C / Humidity: Less than or equal 85%
7. Operation environment: Temperature: -20-60 degree C / Humidity: Less than or equal 90%
8. Overload protection: Insulation resistance range: AC 1200V / 10 seconds; Voltage range: AC 720V / 10 seconds
9. Withstand voltage:AC 6000V (50 / 60Hz) / 5 seconds (between circuit and periphery)
10. Insulation resistance: Greater than or equal 1000M ohms / DC 1000V (between circuit and periphery)
11. Power supply: DC 9V (6x1.5V AA batteries, not included)
12. Current consumption: Approximately 1.5A (normally maintained at approximately 50mA)
13. Battery Life: About 12 hours
14. Dimension: 176 x110 x 77mm
