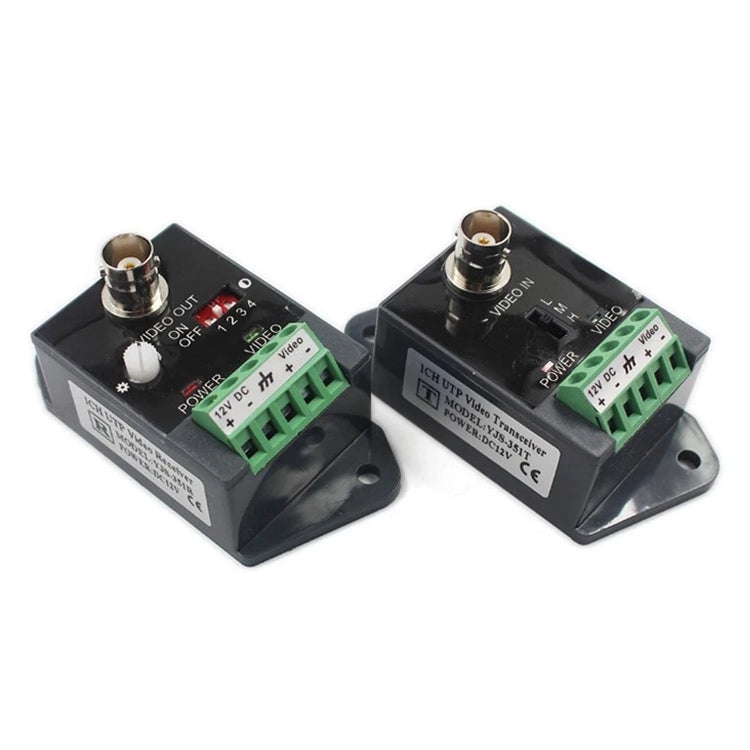

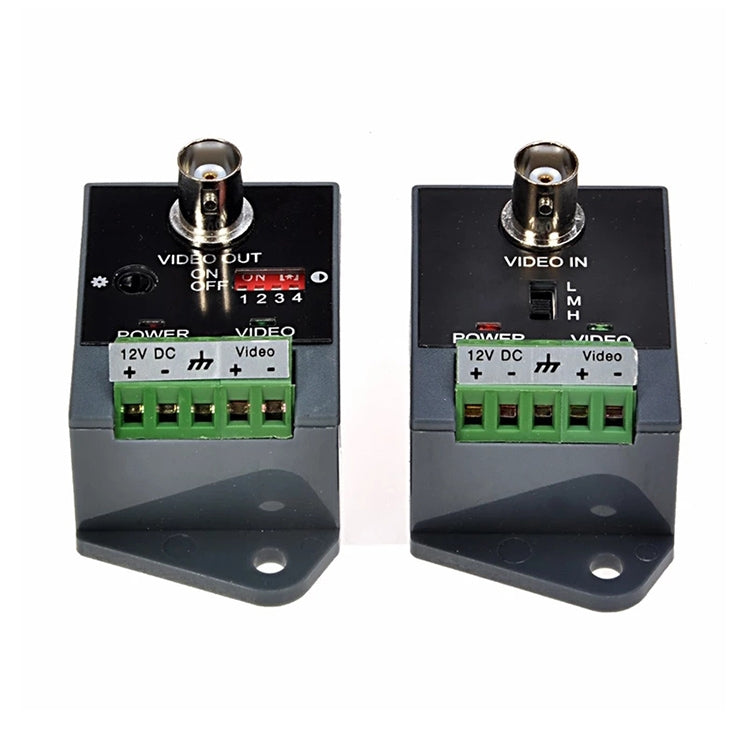

Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver
Active CCTV UTP Twisted Pair Video Balun Transmitter and Receiver
Sale
Sold out
Pre-order
Regular price
R 569.00
Regular price
Sale price
R 569.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

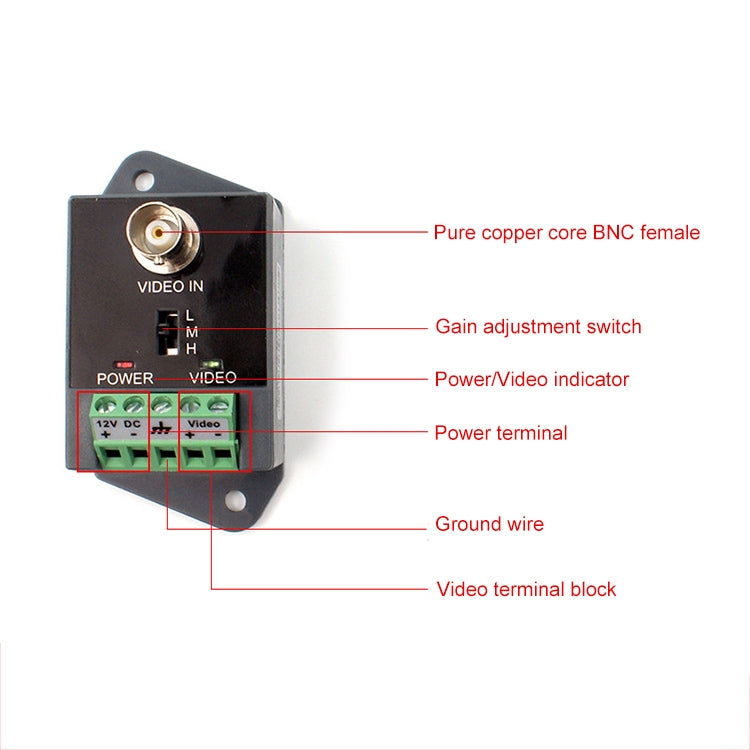

2. Three position range switch for gain select on transmitter.

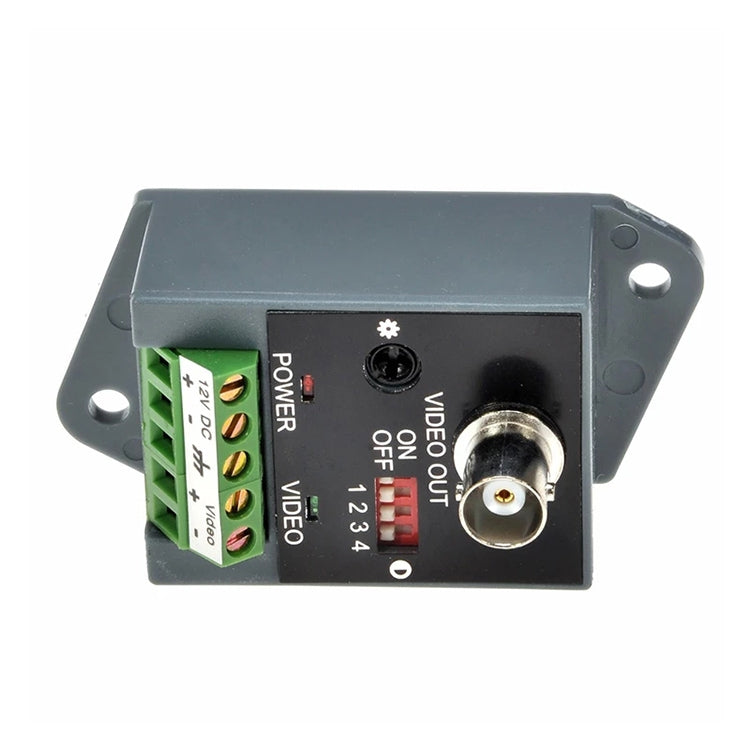

3. 4 position distance range switch on Receiver
4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection

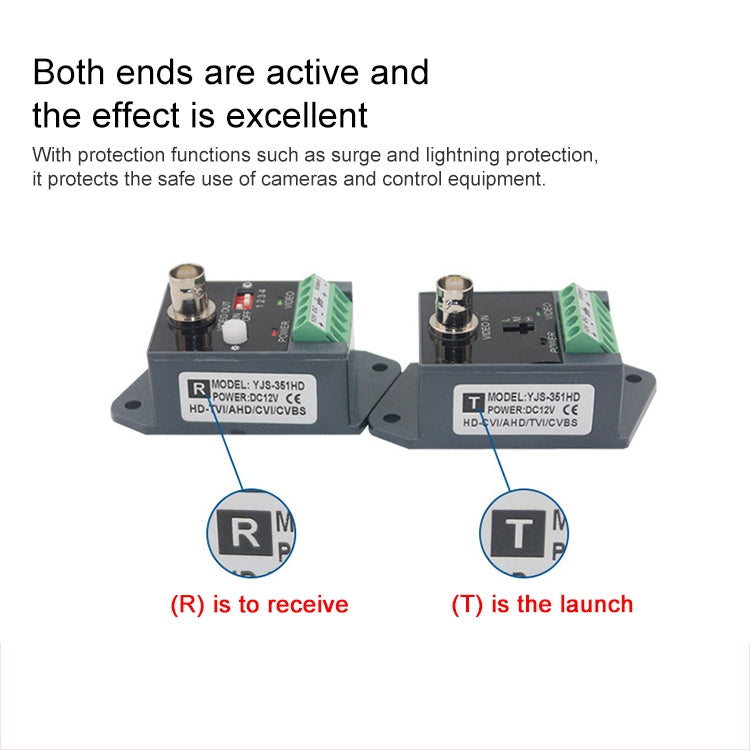

- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm
