PMC Jewellery

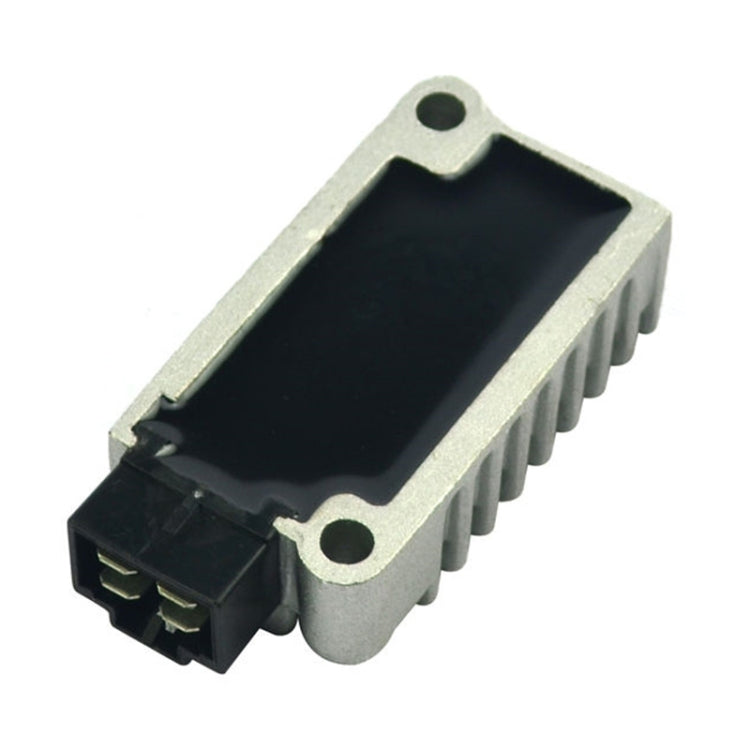

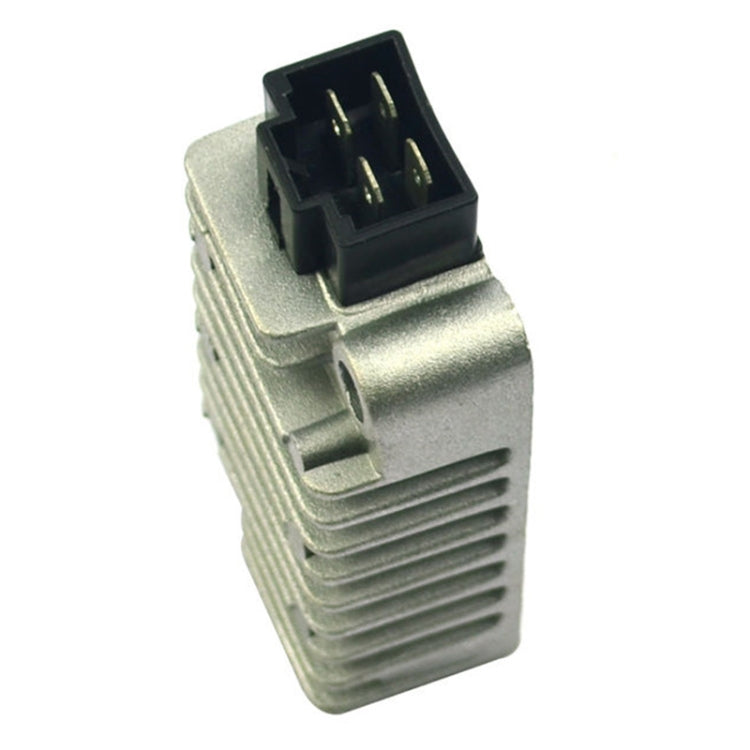

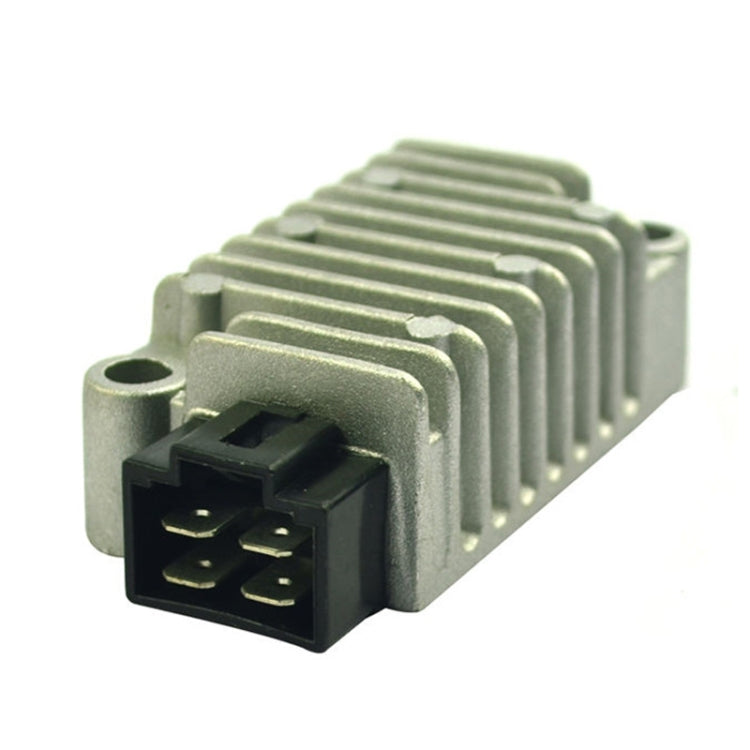

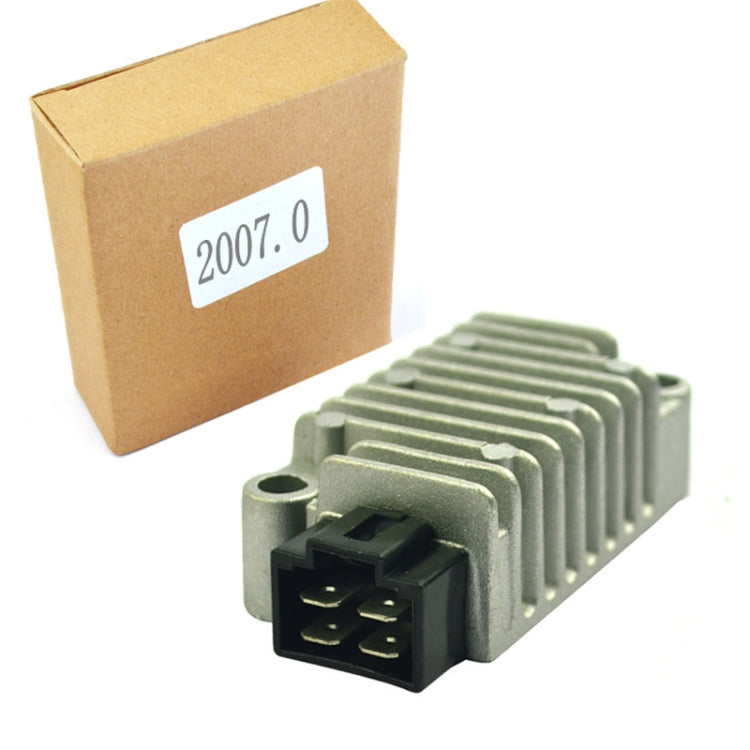

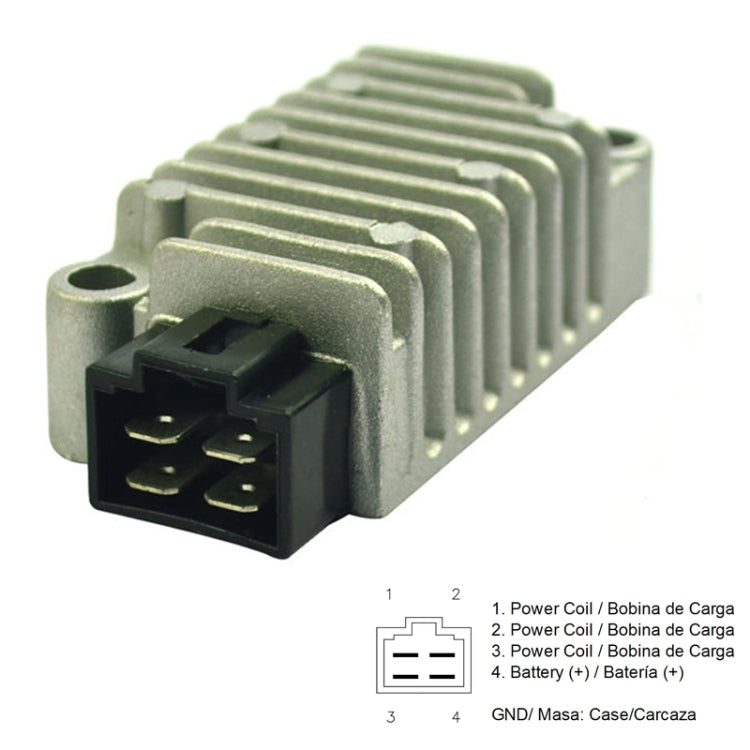

2007.0 Motorcycle Rectifier For Yamaha XV110 / TDM 850 XJ600 XT225

2007.0 Motorcycle Rectifier For Yamaha XV110 / TDM 850 XJ600 XT225

Regular price R 399.00
Regular price Sale price R 399.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


1. Weight: 130G
2. Output voltage: 14.5V
3. Output current: 35A

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For Rbi GPR 2T 125 00M12502316
For Kawasaki BN Eliminator 125 2001 2009 21066-1108
For Kawasaki KL Super Sherpa 250 2000 2010 21066-1108
For Reemplazo Shin Ngen SH629A-12
For Yamaha FZR 600 1990 1993 3TJ-81960-02-00
For Yamaha RD LCF 350 1986 3TJ-81960-02-00
For Yamaha RD LC 350 1991 1992 3TJ-81960-02-00
For Yamaha SRX 700 1998 1999 8DF-81960-00-00
For Yamaha SRX 600 1998 1999 8DF-81960-00-00
For Yamaha TDM 850 1991 1992 3TJ-81960-01-00
For Yamaha TT E 600 1994 2001 3TJ-81960-02-00
For Yamaha TT R / RE 600 1998 2004 3TJ-81960-02-00
For Yamaha TT K 600 1993 1996 3TJ-81960-02-00
For Yamaha TTR 225 1999 2006 3TJ-81960-02-00
For Yamaha TW 200 2001 2018 3TJ-81960-02-00
For Yamaha XC F 125 2000 2001 5AG-H1960-00-00
For Yamaha XJ S/N 600 1992 1997 3TJ-81960-02-00
For Yamaha XJ Seca II 600 1992 1996 3TJ-81960-01-00
For Yamaha XT 250 2008 2012 3TJ-81960-02-00
For Yamaha XT 225 2001 2007 3TJ-81960-02-00
For Yamaha XT Serow 225 1996 1997 3TJ-81960-01-00
For Yamaha XT E 600 1990 2002 3TJ-81960-02-00
For Yamaha XT Serow 225 1998 2000 3TJ-81960-02-00
For Yamaha XT K 600 1991 1993 3TJ-81960-02-00
For Yamaha XT Tenere 600 1986 1989 3TJ-81960-02-00
For Yamaha XTZ 660 1991 3TJ-81960-02-00
For Yamaha XTZ 750 1989 1992 3TJ-81960-02-00
For Yamaha XV Virago 250 1989 1992 3TJ-81960-02-00
