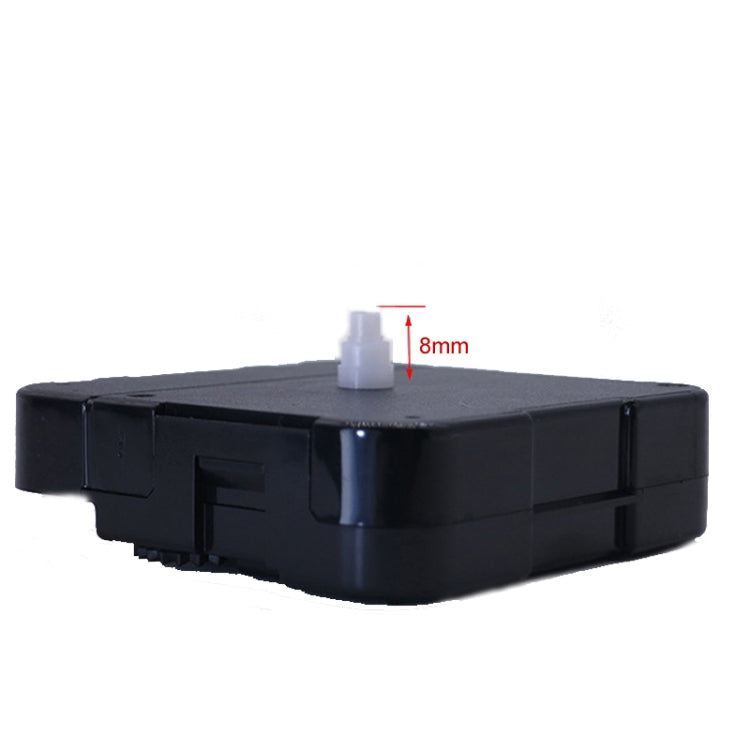

2 PCS HR1688 Quartz Clock Mechanism Movement,Spec: 8mm
2 PCS HR1688 Quartz Clock Mechanism Movement,Spec: 8mm
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R62.06/mo 3 months
- R31.38/mo 6 months
- R16.56/mo 12 months
- From R62.06/month over 3 months, or as low as R16.56/month over 12. Total repayable over 12 months: R198.72. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description

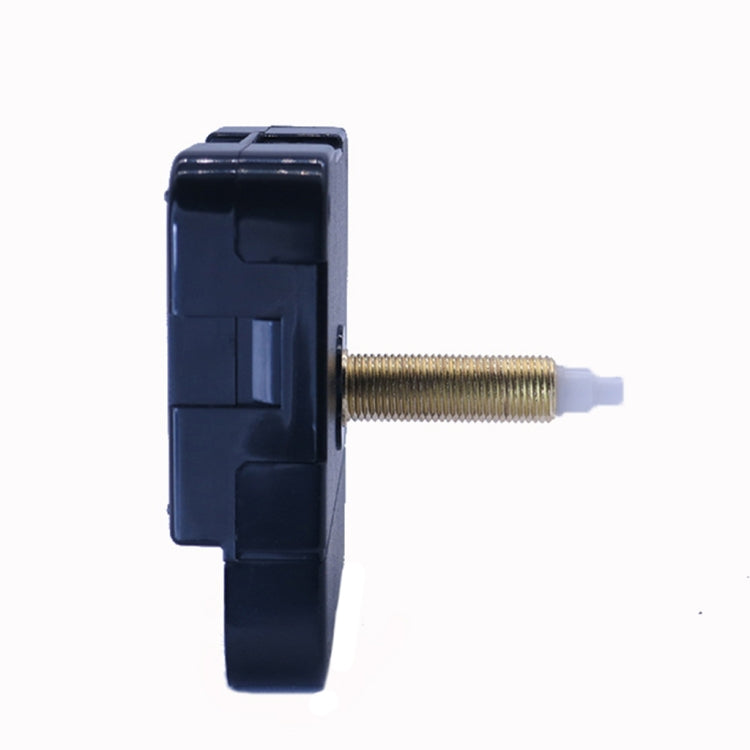

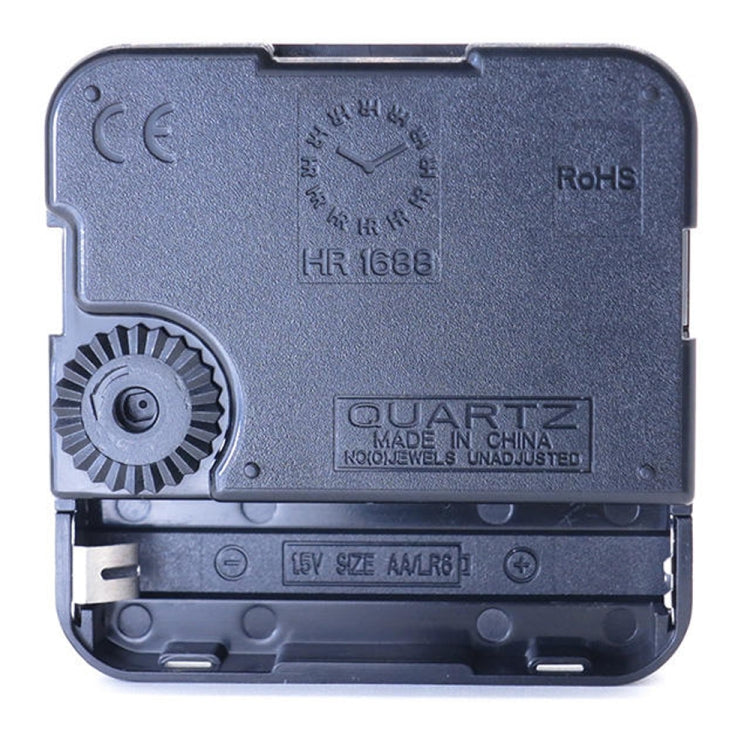

The HR1688 Quartz Clock Mechanism Movement is designed for precise timekeeping in clocks. It is suitable for DIY clock projects where accurate movement and low noise are essential.
- Movement type: Quartz
- Model: HR1688

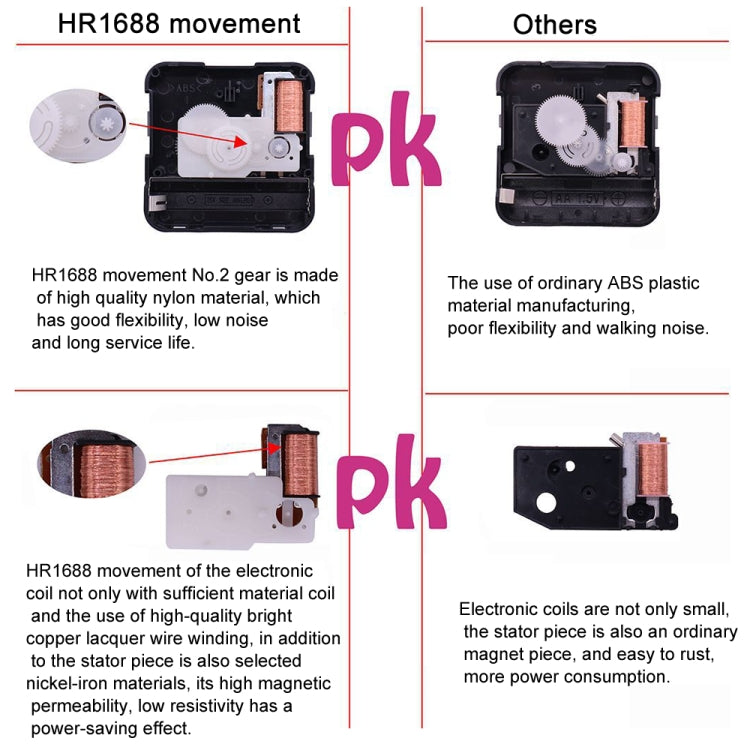

- Material: High-quality nylon gear, bright copper lacquer wire, nickel-iron stator
- Crystal frequency: 32.768KHz
- Time accuracy: +/-30 seconds per month (at 1.5V DC, 25 degrees Celsius)
- Current consumption: Less than 130μA (at 1.5V DC)
- Operating voltage: 1.3V to 1.7V
- Operating temperature: -10 to 50 degrees Celsius
- Power supply: 1.5V AA batteries (not included)
- Weight: Approximately 25g per piece
- Second hand output torque: ≤ 0.6gf-cm (at 1.5V)
- Minute hand output torque: ≤ 30gf-cm (at 1.5V)

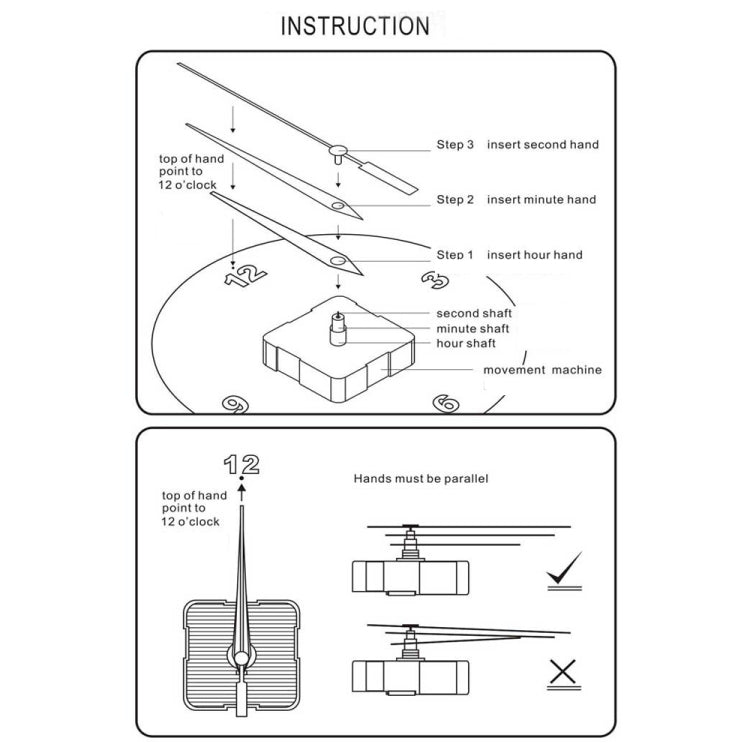

- Pointer specifications:
- Second hand length/weight: ≤ 130mm, ≤ 2g
- Minute hand length/weight: ≤ 200mm, ≤ 6g
- Second hand unbalance torque: ≤ 0.15gf-cm
- Minute hand unbalance torque: ≤ 6gf-cm
- Battery slot: Generally not equipped with a battery cover
- Included components: Gold hexagonal plane nut, gold washer, black rubber pad
