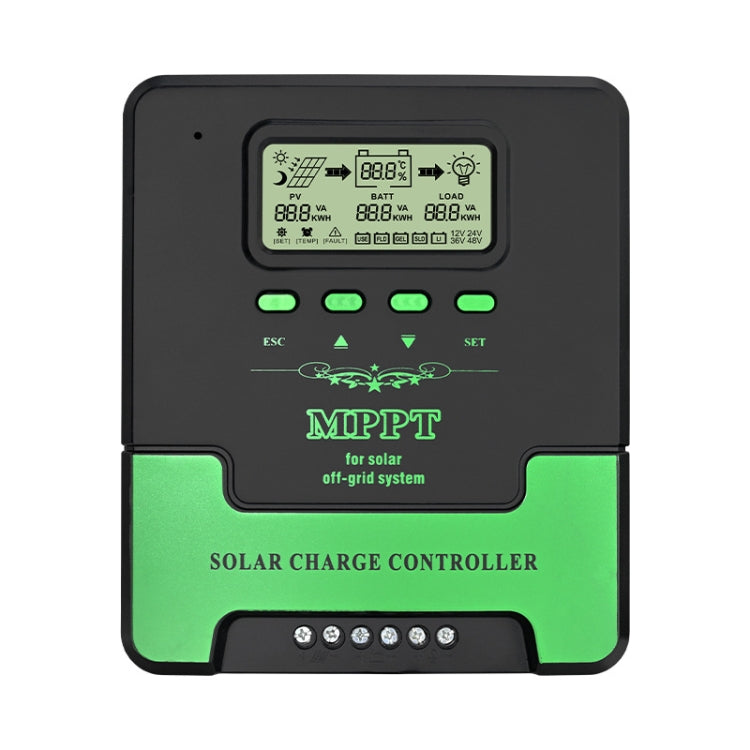

12V/24V 50A MPPT Intelligent Lighting Identification Solar Controller, Model: CM-D50

• Product type: Others
• Compatibility: 12V/24V systems
• Material: ABS+metal
• Key feature: Intelligent lighting identification
• Color/Variant: N/A
• Intended use: Solar energy applications
• Category: Consumer Electronics

1. System voltage: 12V/24V self-identification
2. No-load loss: less than 0.4W
3. Solar input voltage: 100V VOC (MAX)
4. Battery voltage: 9-32V
5. Voltage range: battery voltage +2V~100V (MAX)
6. Rated charging current: 50A
7. Rated load current: 20A
8. USB output: 5V/3A
9. Solar panel input power (MAX): 600W/12V; 1200W/24V
10. Temperature compensation coefficient: -2mv/degrees Celsius/2V (default value)
11. Working temperature: -10~+65 degrees Celsius
12. Protection level: IP21
13. Electromagnetic compatibility: in compliance with EN61000, EN55022, EN55024
14. Application scope of solar controller: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards, etc.

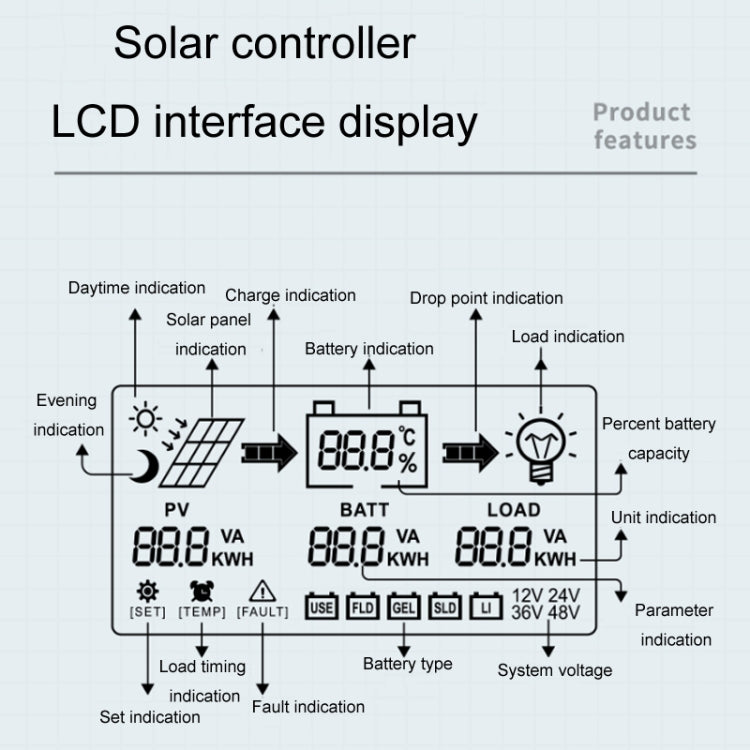

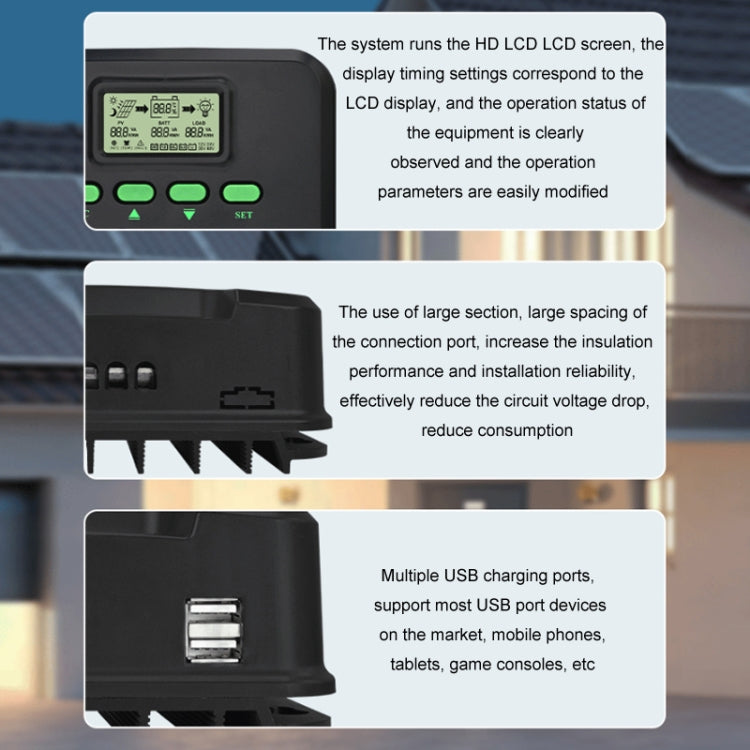

15. System operation High-definition LCD display screen, display timing settings corresponding to the LCD display, clear observation of equipment operation status, convenient modification and setting of operating parameters
16. The use of large-section, large-pitch wiring ports increases insulation performance and installation reliability, effectively reduces circuit voltage drop and reduces consumption
17. Multiple USB charging ports, support most USB port devices on the market, mobile phones, tablets, game consoles, etc.

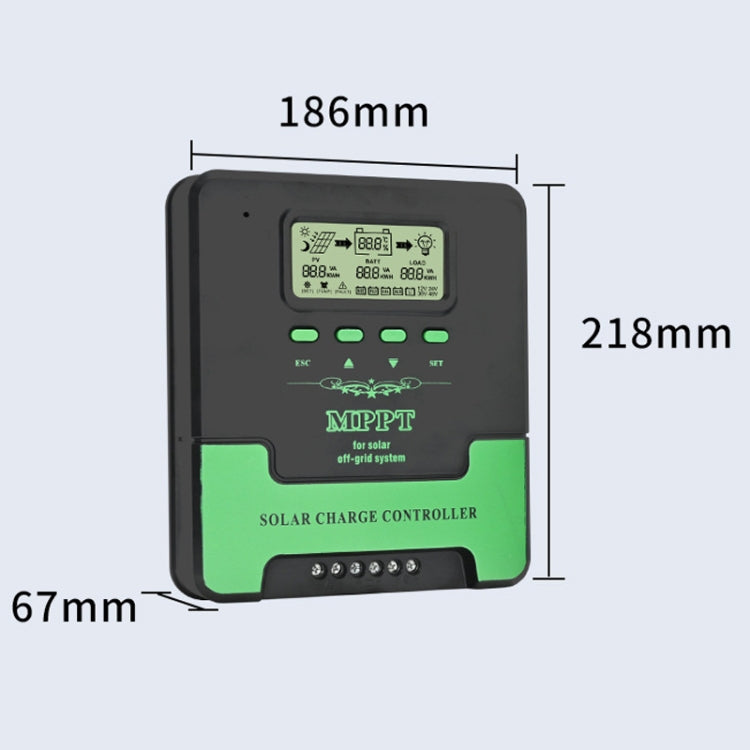

18. Size: 21.8x18.6x6.7 cm
19. Weight: 1226 grams
