12V-24V 40A WIFI Remote MPPT Home Energy Storage Control System Solar Controller, Model: CM-D40
12V-24V 40A WIFI Remote MPPT Home Energy Storage Control System Solar Controller, Model: CM-D40
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
2. System voltage: 12V/24V self-identification
3. No-load loss: less than 0.4W
4. Solar input voltage: 100V VOC (MAX)
5. Battery voltage: 9-32V
6. Voltage range: battery voltage +2V~100V (MAX)
7. Rated charging current: 40A
8. Rated load current: 20A
9. USB output: 5V/3A
10. Panel input power (MAX): 480W/12V; 960W/24V
11. Temperature compensation coefficient: -2mv/degree Celsius/2V (default value)
12. Working temperature: -10~+65 degrees Celsius
13. Protection level: IP21
14. Electromagnetic compatibility: in accordance with EN61000, EN55022, EN55024

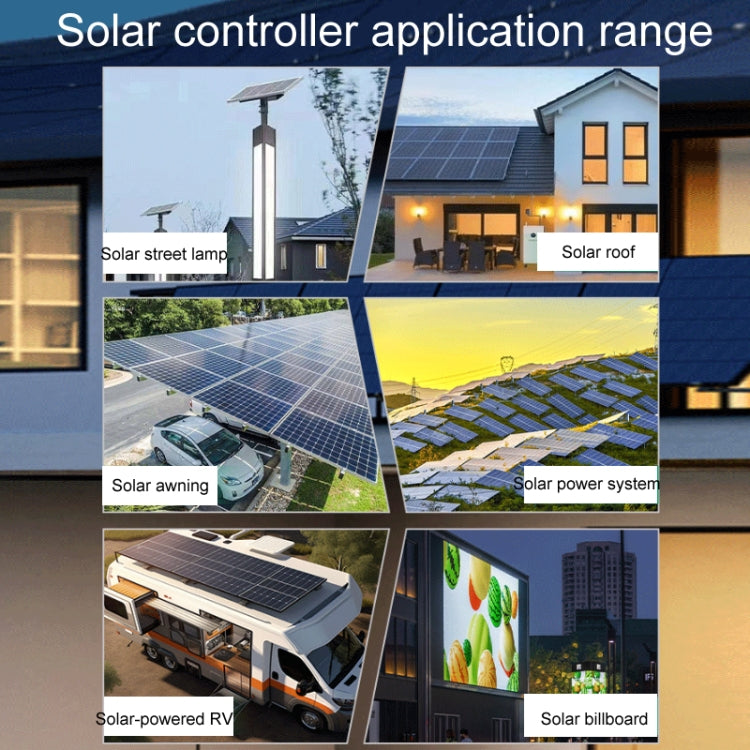

15. Solar controller application scope: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards, etc.

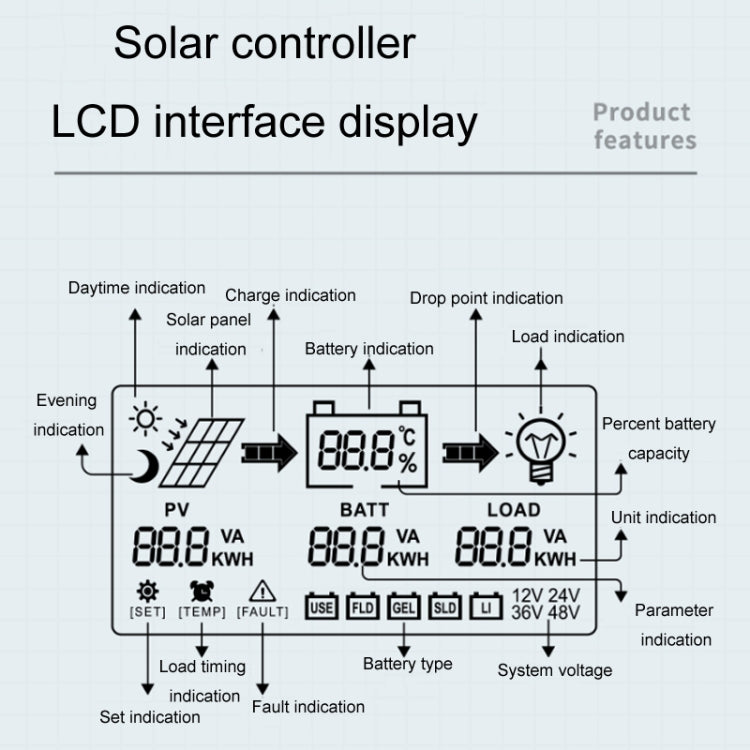

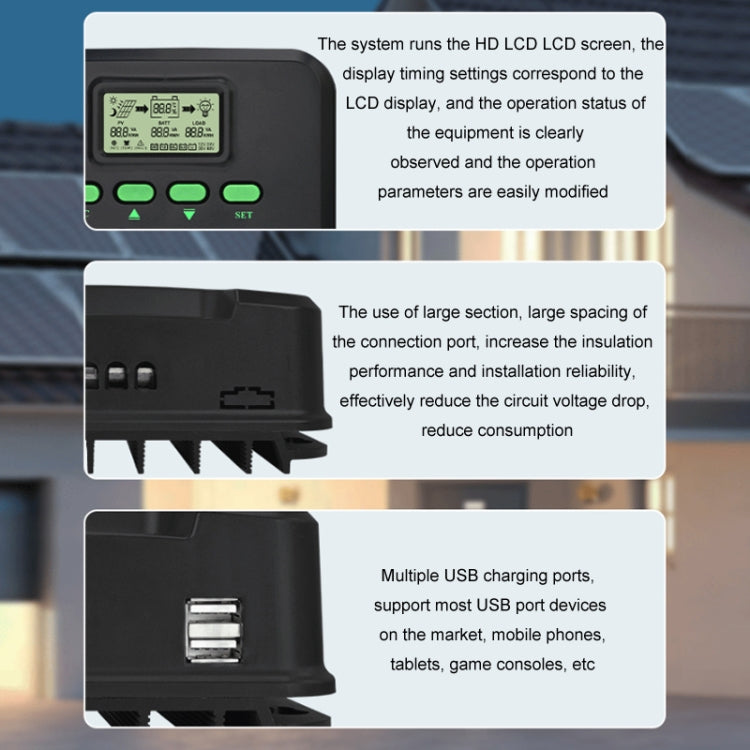

16. System operation HD LCD LCD display, the display timing setting corresponds to the LCD display, clearly observe the operating status of the equipment and conveniently modify the operating parameters
17. The large-section and large-pitch wiring ports increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption
18. Multiple USB charging ports support most USB port devices on the market, mobile phones, tablets, game consoles, etc.

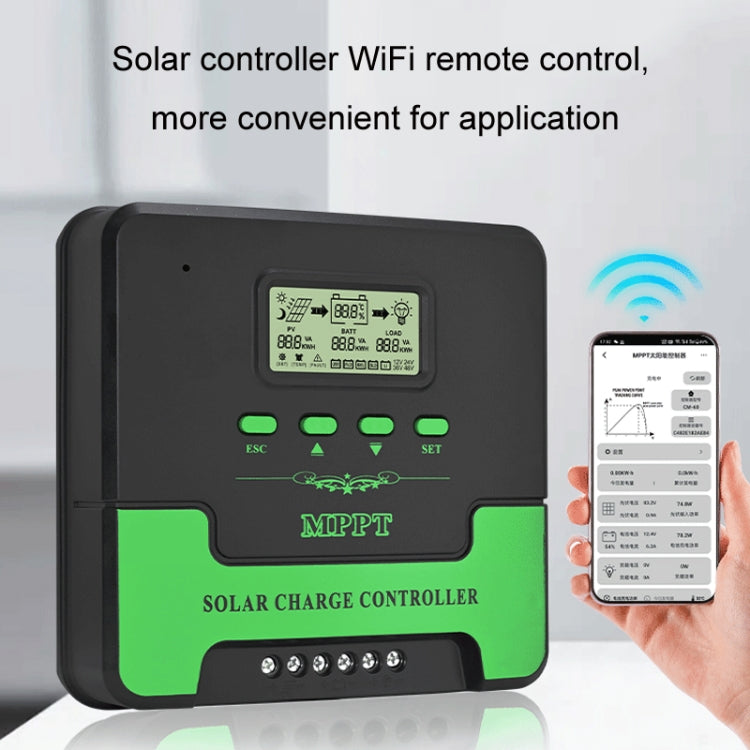

19. Solar controller WiFi remote control, more convenient to use

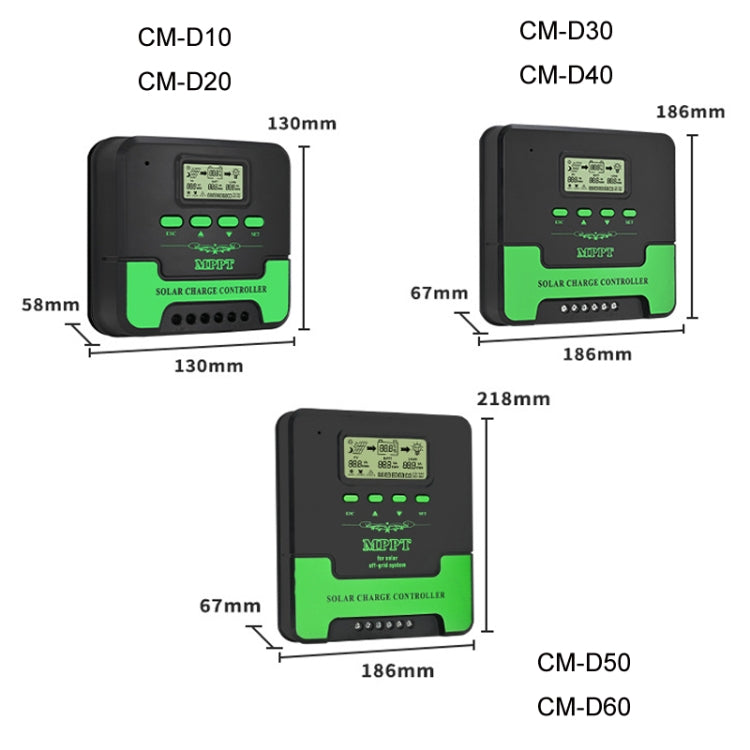

20. Size: 18.6x18.6x6.7 cm
21. Weight: 946 g
